Products Name: CH4100 Series High Efficiency Intelligent Charger
products Gallery: BATTERY CHARGERS

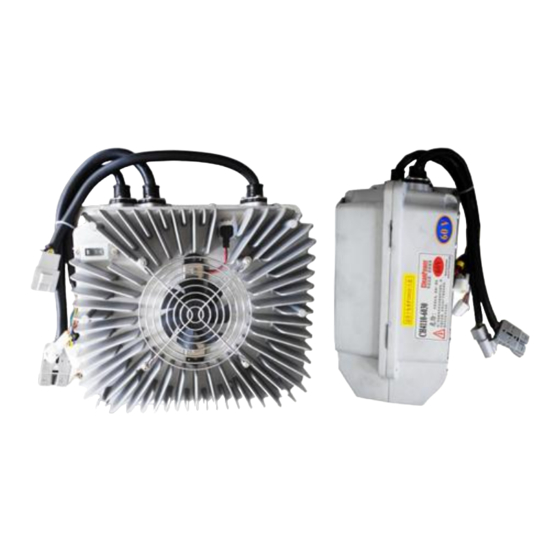

CH4100 Series High Efficiency Intelligent Charger
Table Of Contents
I.Product Overview.. 1
I Product Overview
CH4100 series high efficiency intelligent charger is designed to charge power batteries of electric vehicles. This series of products adopt the most advanced
technologies such as LLC resonant, active power factor correction, microcomputer measurement and control, digital adjusting, fully sealed waterproof
technology and so on. Its features include: wide input voltage range adapted to global general voltage; High input power factor that significantly reduces the
http://www.ukeasypower.com/En/Product_Detail....
Location：Home >> Products Gallery >> BATTERY CHARGERS >> View Details
User Manual Ver.1.5.3
Skype01
11/19/2015 11:13 AM
Advertisement
Table of Contents
Summary of Contents for UK EASY POWER CH4100 Series
-
Page 1: Table Of Contents
I Product Overview CH4100 series high efficiency intelligent charger is designed to charge power batteries of electric vehicles. This series of products adopt the most advanced technologies such as LLC resonant, active power factor correction, microcomputer measurement and control, digital adjusting, fully sealed waterproof technology and so on. -
Page 2: Ii.safety Instructions
CH4100 Series High Efficiency Intelligent Charg... http://www.ukeasypower.com/En/Product_Detail..input current as well as heat generated by input cables, so the charger can be safely used in family; Low harmonic current that reduces interference to other electric equipment. Full range soft switching is realized to achieve high conversion efficiency and slight electromagnetic interference, the charger is more energy-saving and money-saving to use;... -
Page 3: Charging Environment Requirements
CH4100 Series High Efficiency Intelligent Charg... http://www.ukeasypower.com/En/Product_Detail..(1) It’s required to use a dedicated 16A power plug for the charger; (2) It’s required to use copper core cables with flame-retardant sheath; the cables’ core diameter is not less than 2.5mm (3) Make sure that the plug is clean (no dirty) and no damage before charging. -
Page 4: Vii.input And Output Interface
CH4100 Series High Efficiency Intelligent Charg... http://www.ukeasypower.com/En/Product_Detail..A AC input Cables B DC output cables C Signal Cables D Charging indicator E Mounting plate F Shell G Cooling fan and fan cover VII Input and output interface Input Cables Terminal Model DJ7031-4.8-11... -
Page 5: Viii.charging Indicator Information Description
CH4100 Series High Efficiency Intelligent Charg... http://www.ukeasypower.com/En/Product_Detail..pink Serial communication Yellow and green DJ7043-2-21 DJ7043-2-11 interface Blue and white Green and white orange Forbidden signal interface DJ7021-2-11 DJ7021-2-21 (normal close) grey Wire core diameter 0.5 mm2 for all Signal wires Signal Cables Terminal Diagram Direction of view: form the cables to terminal. -
Page 6: Methods Of Operation
CH4100 Series High Efficiency Intelligent Charg... http://www.ukeasypower.com/En/Product_Detail..Low temperature start delay (When the internal temperature of charger is between -20 to -30 R-G-Y-Y -Y-Y-Y-Y-Y-Y--- ° C, the charger will delay starting for 1~2 minutes) Note： 1."-" represents led that does not light for 0.5s, a color word represents that the LED of this color lights for 0.2s. -
Page 7: Xi.faults & Solutions
CH4100 Series High Efficiency Intelligent Charg... http://www.ukeasypower.com/En/Product_Detail..XI Faults & solutions If your charger can not work correctly, you can refer to table below Fault Phenomenon Analysis Solutions External battery temperature Battery temperature Check sensor connection sensor is fault or not... - Page 8 If your charger still cannot work correctly after above treatment, please record the state of the fault phenomenon and charging indicator information, then contact us. Links: Contact:David Yu Email:13924639378@139.com Mobile:(+86)13924639378 Tel:(+86)755-26959270 Fax:(+86)4006981163-23090 CopyRight © 2010 heqiu.com All Rights Reserved. UK EASY POWER CO., LIMITED All Rights Reserved Support：zke360 | Manage 8 of 8 11/19/2015 11:13 AM...
