MR RESISTOR

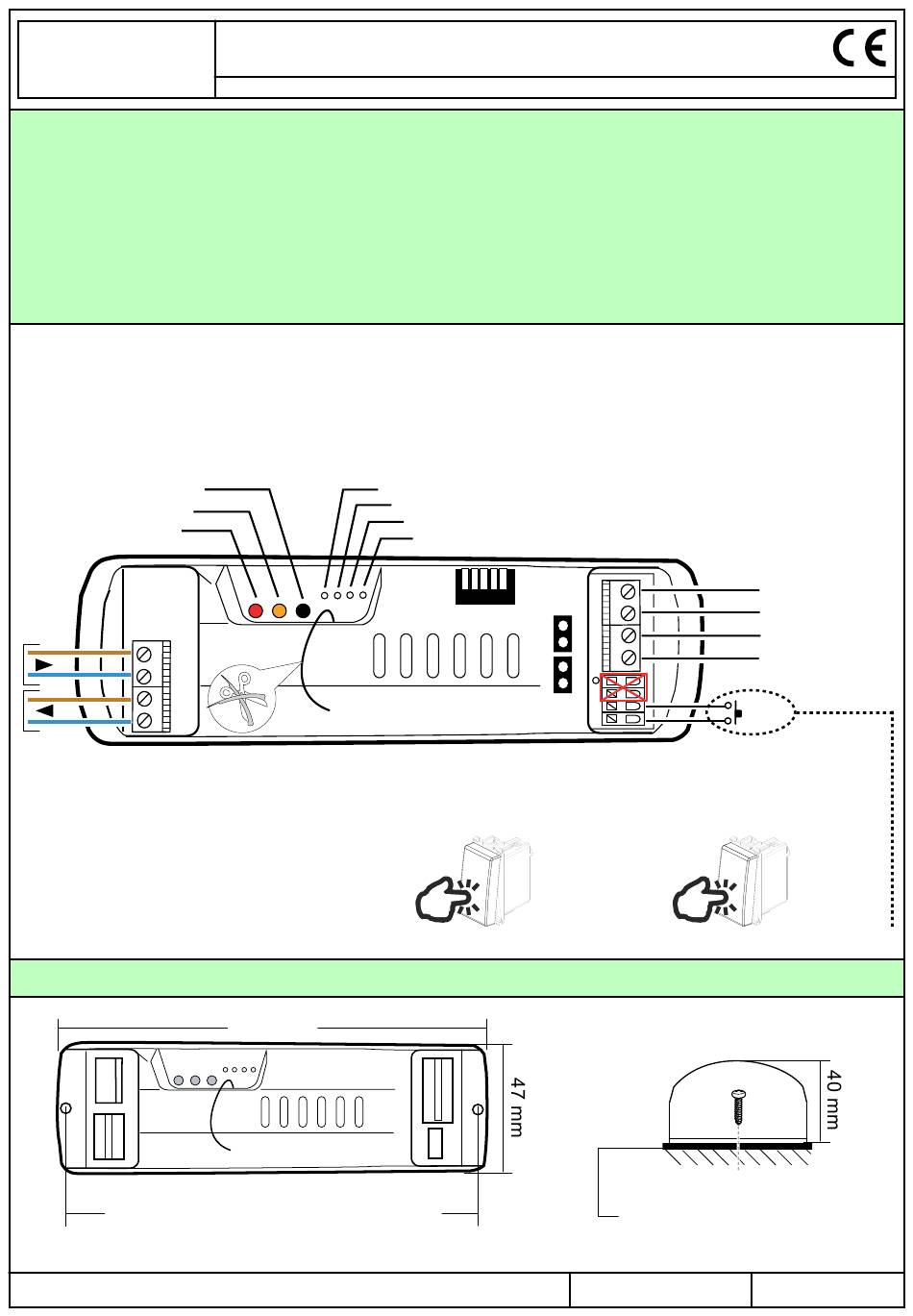

110-230V~ DIMMER WITH BUILT-IN RADIO RECEIVER
AND DALI OUTPUT FOR CONTROL BALLASTS AND
LAMPS. Push-button input for manual controls.
Product code
TVDMA868A01
TVDMA916A01
P3
P2
P1
230V~
IN
L
N
L
N
230V~
OUT
Mounting
Hole for fixing with screw (under the cover)
TVDMAxxxA01-A02
≤ 20 slaves, 868.3Mhz
≤ 20 slaves, 916Mhz
Led 1
Led 2
< 0,5 s
165 mm
185 mm
TVDMA868A02
TVDMA916A02
*
Remove J1 and J2 if an external DALI power supply is used!
Led 3
Led 4
DIP
5 4 3 2 1
J1
J2
Push-button input for manual controls. It's possible to connect in parallel
= ON/OFF
≤ 64 slaves, 868.3Mhz
≤ 64 slaves, 916Mhz
DA1
DALI IN
DA2
DA1
DA2
*
T3
more than one push-button.
> 0,5 s
Flat surface mounting
T559.03
DOC.:
DALI OUT
= DIMMER
ꜛ ꜜ
07/10/16
DATE:
Advertisement
Table of Contents
Summary of Contents for MR. RESISTOR TVDMA868A01
- Page 1 MR RESISTOR 110-230V~ DIMMER WITH BUILT-IN RADIO RECEIVER AND DALI OUTPUT FOR CONTROL BALLASTS AND LAMPS. Push-button input for manual controls. Product code TVDMA868A01 TVDMA868A02 ≤ 20 slaves, 868.3Mhz ≤ 64 slaves, 868.3Mhz TVDMA916A01 TVDMA916A02 ≤ 20 slaves, 916Mhz ≤ 64 slaves, 916Mhz...
- Page 2 Wirings BROADCAST DIP1..5 = OFF SLAVE 1 SLAVE 2 1 2 3 4 5 TVDMAxxxA01 ≤ 20 slaves DALI OUT TVDMAxxxA02 230V~ ≤ 64 slaves < 1s > 1s To test the led wiring: DALI GROUP (0..15) ON/OFF DIMMER ꜛ ꜜ GROUP DIP1 DIP2...
- Page 3 P1+P3 Activation/deactivation of the memory of the last light intensity value LED4 ON Activation last value Press the buttons P1 and P3 at the same time. LED4 OFF Deactivation 100% LED 1 2 3 4 P2+P3 Assigning a GROUP to the connected SLAVE devices (1 s) GROUP LED1...
- Page 4 Wireless command devices 100% DIM + 100% DIM + DIM + DIM + DIM + DIM - Min. DIM - DIM - DIM - DIM - DIM + ON/OFF ON/OFF ON/OFF Min. ON/OFF DIM - 7/42 channels transmitter 3/6/18 channels transmitter Green Mouse Transmitter with integrated light sensor See the product’s instructions for details.
- Page 5 2.1 Radio codes memorization TYPE OF MEMORIZATION (see description p.4) continuous sound keep it pressed 7 channels < 1 s > 1 s 1 button: ON/OFF DIMMER ꜛ ꜜ 1 button with function ON Press the button of the intermittent sound transmitter relative to the code to memorize.
- Page 6 Radio codes deletion TYPE OF DELETION keep it pressed intermittent sound Press the button of the transmitter relative to the code to delete. Single radio code continuous sound All the radio codes (10 s) Modification of the preset light values of a 7/42 channel transmitter If any transmitter with modified light values is used in the remote memorization (3.1), the added transmitter will have the same modified values.
- Page 7 Remote memorization of further radio codes memorized continuous sound memorized continuous sound intermittent sound P3 button is located inside the transmitter. The added radio code will have the same functions of the code used for the memorization. This procedure is compatible with any type <...
-
Page 8: Scenes Programming
SCENES programming Example - address address address address 100% 100% OFF 100% scene scene scene scene 7/42 c. Setting the address of the receiver (1..20) 1..20 P1+P2 Tens LED3 address . . . continuous sound LED1 ON Units LED2 Press the buttons P1 and P2 at the same time. The flashing of LED2 and LED3 shows the address. - Page 9 Modification of the preset light values of a 7/42 channel transmitter memorized in more than one receiver RECEIVER ..5 s) continuous sound address Press the button CH1, CH2, CH3 or CH4 and keep it pressed 5 s. Select the receiver with CH5 or CH6.
-
Page 10: Product Installation
SAFETY INFORMATION WARNING: READ CAREFULLY THIS INSTRUCTIONS BEFORE INSTALLING AND COMMISSIONING THE PRODUCT. SAVE THESE INSTRUCTIONS FOR FUTURE Do not operate in the high voltage area of the electronic REFERENCE. board, when it is supplied. Use the product only in PRODUCT INSTALLATION combination with devices which can guarantee a safe The product at issue must be installed,... -
Page 11: Technical Specifications
Technical specifications 110-230V~ Power supply 22V - 80mA = 20 SLAVES Max. DALI BUS output power (TVDMAxxxA01) 22V - 250mA = 64 SLAVES (TVDMAxxxA02) The connection cables must have a section suitable to the maximum load applied to the output (≥ 1mm², ≤...
