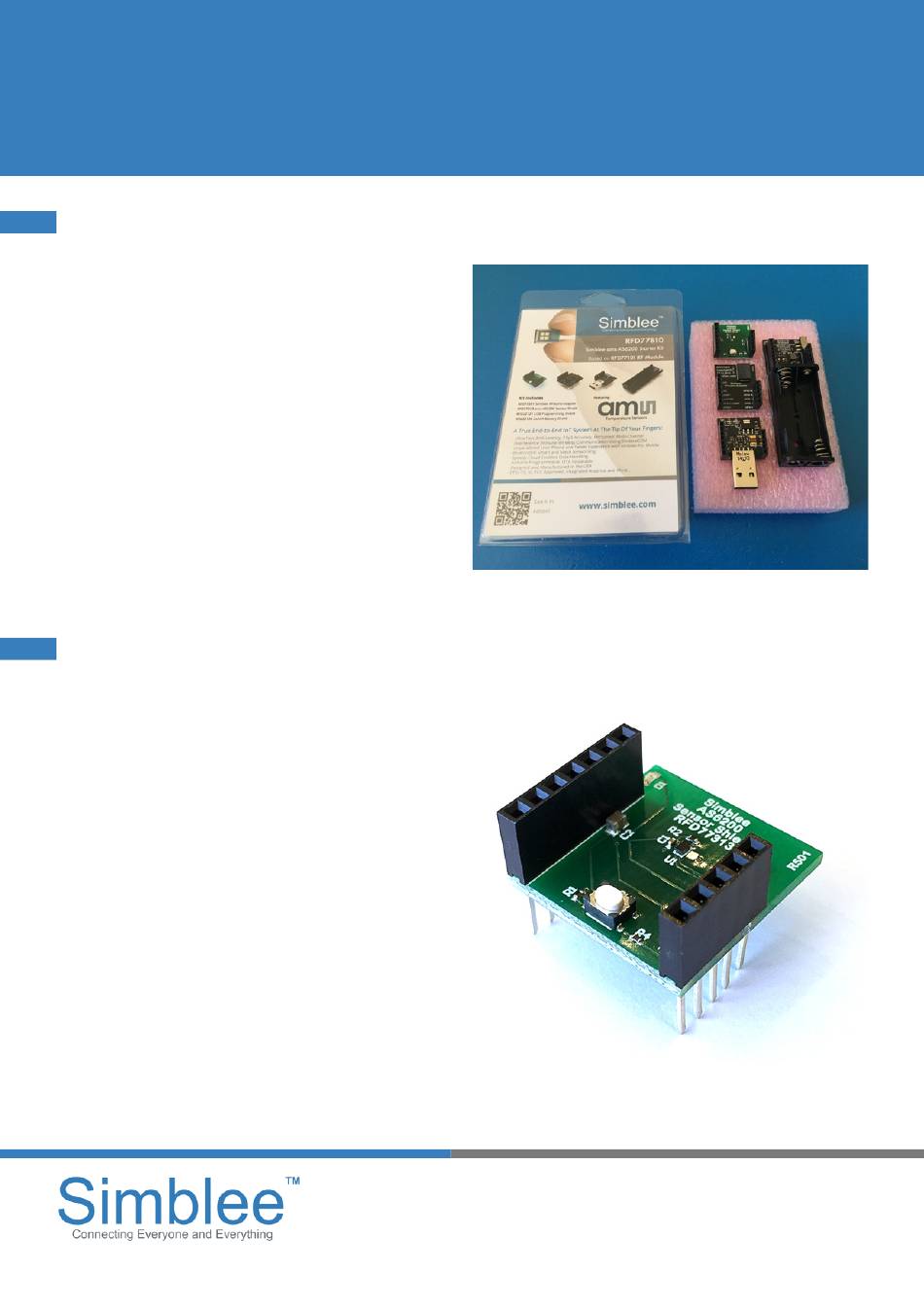

RFD77810 – Simblee ams AS6200
Starter Kit
Contents of Kit
1.
• RFD77313 ams AS6200 Sensor Shield
• RFD77201 Simblee 7pin DIP Shield
• RFD22121 USB Programming Shield
• RFD22126 2xAAA Battery Shield
Figure 1 - RFD77810 Simblee ams
AS6200 Starter Kit
Features of the RFD77313 – ams AS6200 Sensor Shield
2.
• ams AS6200 Sensor
• Digital Temperature Sensor
• Accuracy +/- 0.4 degrees C
• I2C sensor (SCL GPIO 5 and SDA GPIO 6)
• Pushbutton on GPIO 2
• LED on GPIO 3
Figure 2 - RFD77313 ams AS6200
Sensor Shield
1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254
www.simblee.com • Tel: 949.610.0008 • contact@simblee.com
CONFIDENTIAL – INTERNAL USE ONLY
Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017
Advertisement
Summary of Contents for Simblee RFD77810
- Page 1 RFD77810 – Simblee ams AS6200 Starter Kit Contents of Kit • RFD77313 ams AS6200 Sensor Shield • RFD77201 Simblee 7pin DIP Shield • RFD22121 USB Programming Shield • RFD22126 2xAAA Battery Shield Figure 1 - RFD77810 Simblee ams AS6200 Starter Kit Features of the RFD77313 – ams AS6200 Sensor Shield • ams AS6200 Sensor • Digital Temperature Sensor • Accuracy +/- 0.4 degrees C • I2C sensor (SCL GPIO 5 and SDA GPIO 6) • Pushbutton on GPIO 2 • LED on GPIO 3...
- Page 2 Figure 6 - Completed Demo Assembly Sensor Shield on top of RFD77201 Simblee 7pin DIP 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL – INTERNAL USE ONLY Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017...
- Page 3 Figure 8 - Battery ON/OFF switch location Figure 9 - LED power indicator 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL – INTERNAL USE ONLY Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017...
- Page 4 Connecting to the Simblee using Simblee For Mobile Open the Simblee For Mobile app on your mobile device. If you have not downloaded the Simblee For Mobile app, please see Appendix A on how to download the Simblee For Mobile app. On the Found Simblees screen, the sensor will show up on the screen, provided that the Simblee device is on. Click on the item. Wait for a moment while the Simblee Interface loads. Figure 10 - iOS Simblee For Mobile Found Simblees page Figure 11 - Android Simblee For Mobile Found Simblees page 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL –...
- Page 5 Figure 13 - Android SimbleeForMobile app interface 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL – INTERNAL USE ONLY Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017...
- Page 6 Figure 15 - Android Simblee For Mobile back button location 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL – INTERNAL USE ONLY Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017...
-
Page 7: Appendix A - Downloading The Simblee For Mobile App On Ios And Android Devices
Appendix A – Downloading the Simblee For Mobile App on iOS and Android Devices Downloading the Simblee For Mobile App on iOS Devices Open the App Store on your iPhone/iOS Device running on iOS v8.0 or later Search for “Simblee”. Click on the “+Get” and Install to start downloading the app, then click on the “+Open” to open the app 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com •... - Page 8 Figure 19 - Simblee For Mobile Default Screen 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL – INTERNAL USE ONLY Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017...
- Page 9 Downloading the Simblee For Mobile App (Android) Open the Google Play Store on your Android device running on Android Version 6.0 or above and search for “Simblee”. Click on the Simblee For Mobile item, and the Install page will appear. Click the “Install” button, and then “Open” once done installing. Figure 20 - Android Google Play Store Search Figure 21 - Simblee For Mobile on Android Google Play Store 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL –...
- Page 10 Figure 23 - Android Simblee For Mobile Location Access Request 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL – INTERNAL USE ONLY Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017...
- Page 11 Simblee User Guide Getting Started with Simblee for Mobile Getting Started with SimbleeCOM Simblee Datasheet 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.simblee.com • Tel: 949.610.0008 • contact@simblee.com CONFIDENTIAL – INTERNAL USE ONLY Document – Copyright 2017 RF Digital Corporation – Jan 31, 2017...
