Summary of Contents for Huadean BWC-T1
- Page 1 BWC-T1 User manual...
-
Page 2: Table Of Contents
Content 1. Introduction........................... 1 2. Structure design..........................2 2.1 Front view..........................2 2.2 Back view..........................3 3. Device operation..........................4 3.1 Live view window.........................4 3.2 Main menu..........................4 4. Device using............................9... -
Page 3: Introduction
1. Introduction BWC-T1 is a lightweight design body worn camera specifically designed for Law Enforcement. The camera features real time HD video, 1080P recording, and a high resolution still image capture visible on the LCD screen for instant playback; The rugged design is resilient to withstand demanding work environments faced by law enforcement officers, corrections, military and security detail. -
Page 4: Structure Design

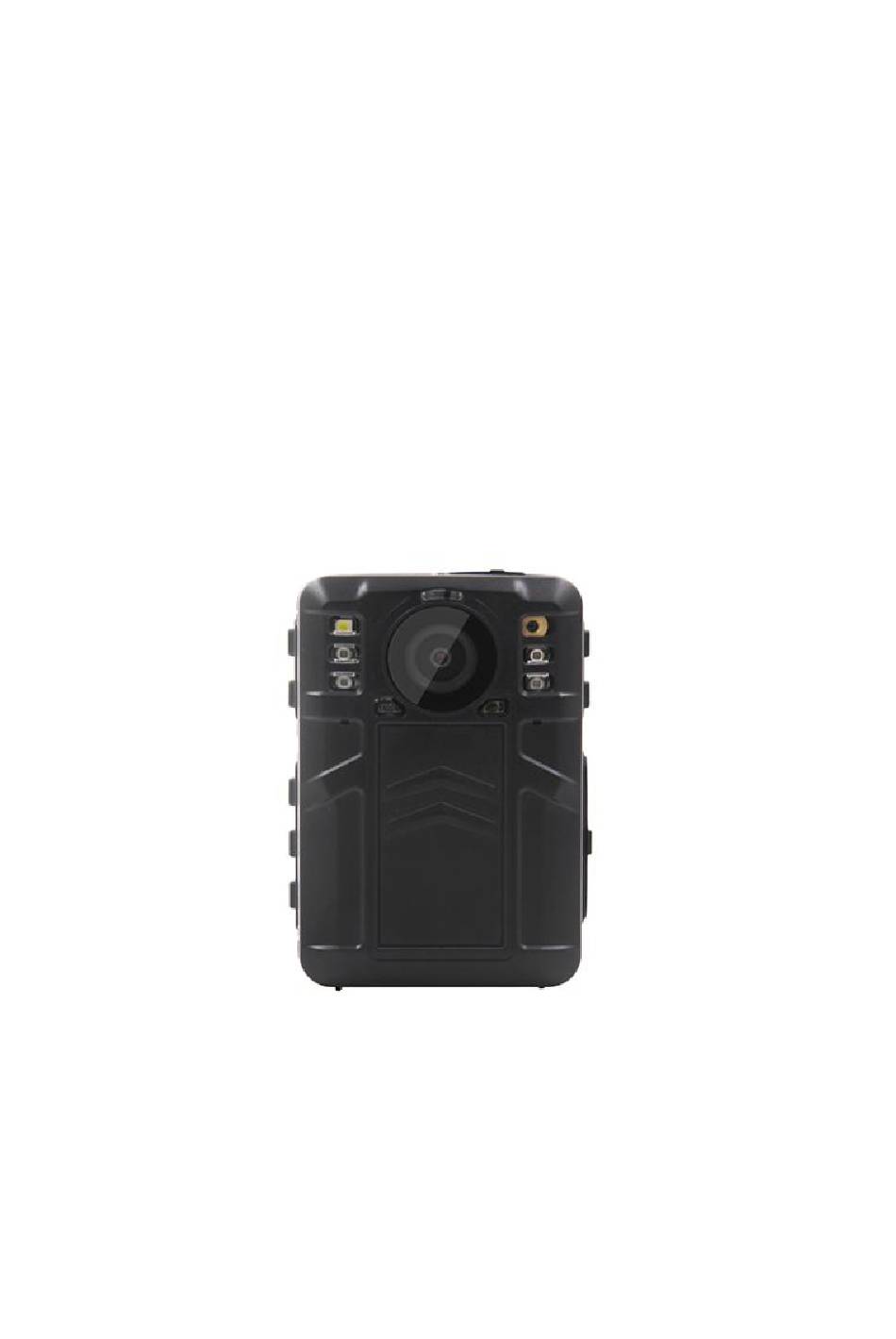

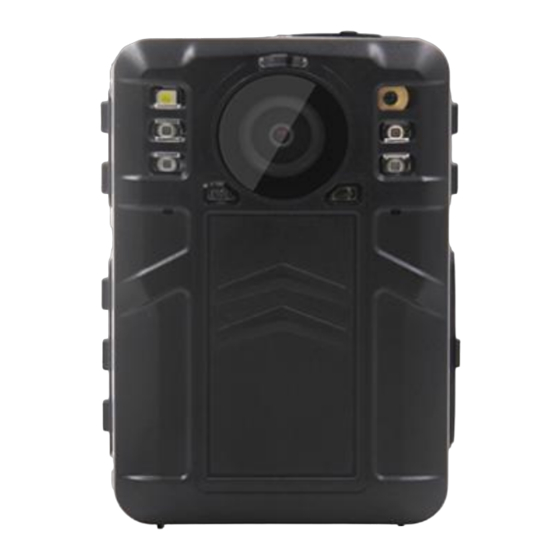

2. Structure design 2.1 Front view Item Name Description Solid red means camera is recharging, solid green means Charge indicator camera recharged well. Record clear image in HD in low light situations. 10 meters IR light visible. Short press the power on/off button to enable the light for Lighting light auxiliary lighting. -
Page 5: Back View
2.2 Back view item Name Description Line hole The hole to a line to mount the camera Video REC button Press this button to start the video recording Audio REC button Press the button to start the audio recording only. Press this button to start capture the snapshots, even Snapshot button during video recording mode. -
Page 6: Device Operation
3. Device operation 3.1 Live view window The body worn camera LCD screen is a small monitor to display various camera information and operation status. Item Name Description Recording resolution The resolution that camera recording Video recording icon Yellow means recording Snapshot icon Yellow means snapshot success Date/Time... - Page 7 Menu list: 1. Video resolution 2. Video quality 3. Video clip 4. Pre-recording 5.Post-recording 6. Photo pixel 7. Snapshot 8. Brightness 9. Screen off 10. Volume 11. Indicate sound 12. Key sound 13. Hourly report 14. Indicator light 15. White light 16.
- Page 8 1. Video resolution The body worn camera offers five different recording resolutions. Resolution and frame rate options feature a proper balance between video quality and maximizing amount of video stored. Options Display resolution Images per second 720P30 1280*720 848P30 848*480 1080P30 1920*1080 2.
- Page 9 In preview mode, Long press the snapshot button to shoot the selected number of pictures, and you can set the option as 2 PCS, 3 PCS. When video recording is working, the option will not work. 8. LCD brightness Adjust the body camera LCD brightness to fit lighting situation for better image and video view. 10 is highest level.
- Page 10 long press M key to active it or inactive it. If the users choose auto mode, the IR will work when the environment is dark, similarly, when the environment is bright, the IR will be closed automatically. 18. Auto shutdown Turn off the camera after a certain time if there is any operation.
-
Page 11: Device Using
4. Device using 1. Turning On the Camera In power off status, long press for 3 seconds, the camera will be turn on and enter into preview mode automatically. Meanwhile, the status indicator will turn green. 2. Turning Off the Camera In preview mode, long press for 3 seconds, the camera will save the current status and power off. - Page 12 automatically. 7. Audio Recording In preview mode, press to start audio recording. Meanwhile, the status indicator will turn to yellow and flash. Press again, the camera will stop audio recording, and the audio will be saved in WAV format automatically. 8.
- Page 13 13. Charging the Battery This camera has a chargeable battery built in. In case of low battery, please connect this camera to power supply for battery charging. Connect this camera and adapter via USB cable, and connect adapter to power supply to charge the battery.
