CYCLE COUNTER

MMC-11

USER'S MANUAL

Table of Contents

Need help?

Do you have a question about the MMC-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for MoldMaker MMC-11

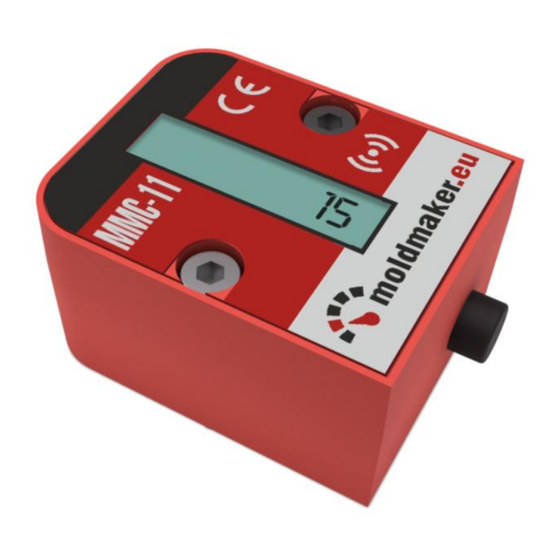

Page 1 CYCLE COUNTER MMC-11 USER'S MANUAL...
Page 2: General
The counter is delivered as inactive. After pressing the main button "Inactive" appears on the LCD display. Activation can be done using the MoldMaker Scan application, which can be downloaded from Google Play for Android devices. For more information please follow this manulal.
Page 3 LCD display messages: Inactive counter. Message visible after pressing the main cycle button and or disassembly sensor for the inactive counter. Activation is required for normal operation. Message about exceeding the programmed value of counter reminder about service inspection of the mold, maintenance, punch, etc.

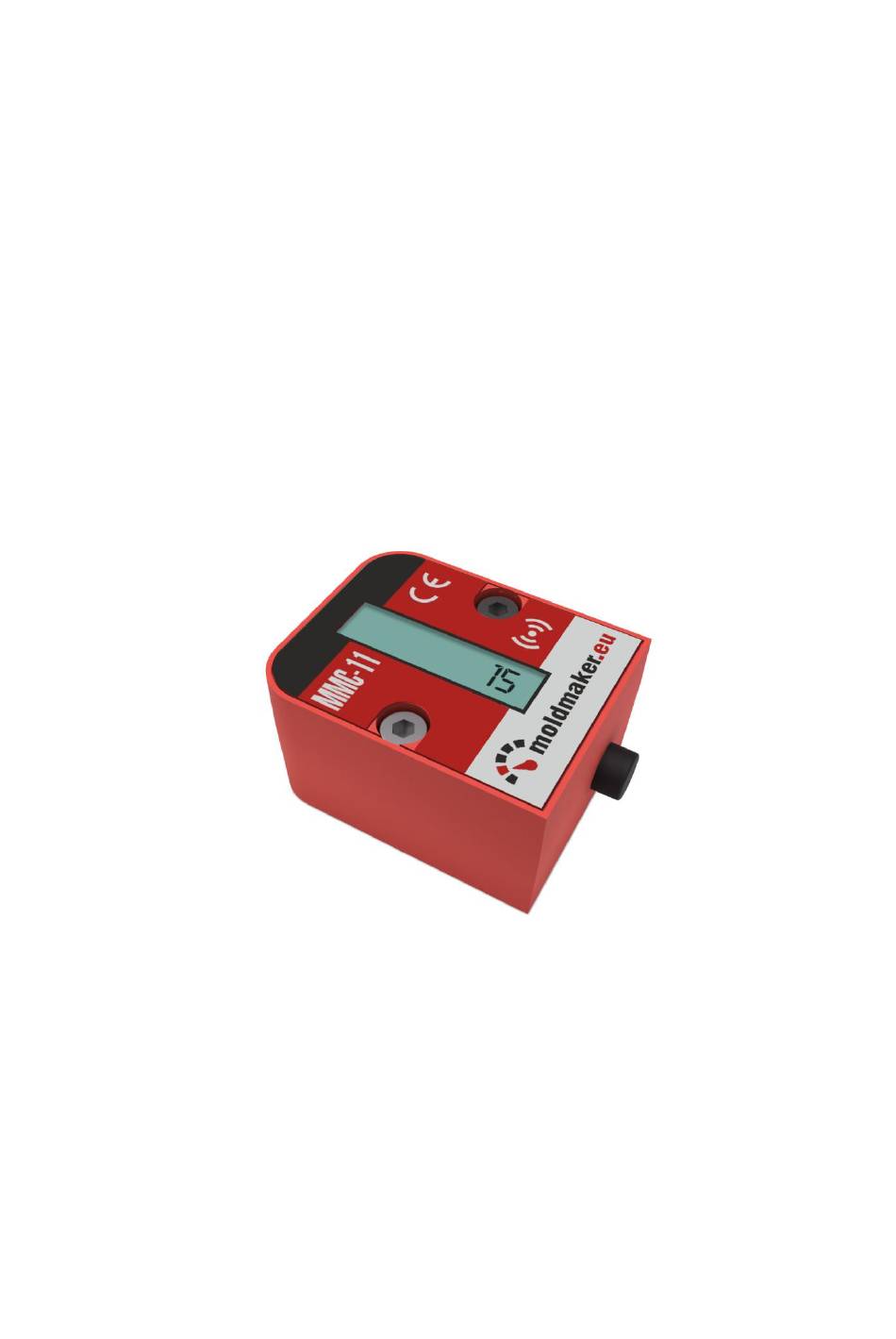

Page 4 Counter dimensions MMC-11 3D model (including subtraction solid) for tool design is available here: http://moldmaker.eu/panel/download Declaration of conformity is available here: http://moldmaker.eu/panel/download...
Page 5: Creating An Account In Moldmaker System
"Register". After completing the registration process, a new business account will be created for the user with administrator rights. You can now log into the system. 3. LOGGING IN MOLDMAKER SYSTEM VIA MOLDMAKER SCAN APPLICATION Go to https://www.moldmaker.eu/panel...
Page 6: Counter Activation
4. COUNTER ACTIVATION A brand new counter is in the inactive mode. Proceed the steps below to activate the counter. Log in. You must have an account on the site https://www.moldmaker.eu/panel Select "Proximity Reading (NFC)" option.
Page 7 Place your phone on the counter. Select "Activate New Counter" option. The counter will be activated.
Page 8: Adding New Tool With New Counter Assignment
The activation process has been completed 5. ADDING NEW TOOL WITH NEW COUNTER ASSIGNMENT Login to MoldMaker Scan mobile application. Select "Proximity Reading (NFC)" option.
Page 9 Place your phone on the counter. Select "Create New Tool" option.
Page 10 Enter data: tool name, part name and select the location. Then press "Create”. Confirmation message. New tool with assigned counter has been created.
Page 11: Assigning The Counter To The Existing Tool
6. ASSIGNING THE COUNTER TO THE EXISTING TOOL Login to MoldMaker Scan mobile application. Select the "Proximity Reading (NFC)" option. Choose "Assign to Existing Tool” option.
Page 12 Choose location of existing tool. Select the appropriate tool to which you want to assign a counter.
Page 13: Remote Scanning
7. REMOTE SCANNING 7.1 Scanning via mobile devices (on demand). The value of the counter can be scanned wirelessly from a distance of up to 30m using a smartphone or tablet via the MoldMaker Scan application installed. Scanning of 1 counter.
Page 14: Automatic Scanning
7.3 Configuration and proximity reading The counter configuration can be done via the NFC proximity communication interface using a smartphone or tablet with the MoldMaker Scan application installed. In this way, depending on the needs, it is possible to do: ...
Page 15 Remove assignment from tool)  identification of an unknown tool - by placing a smartphone to the counter installed in an unknown tool, you can easily identify this tool (press: Proximity Reading (NFC))  reading Tool Cards used to get acquainted with detailed technical data of a given tool (press: Proximity Reading (NFC) ->...
Page 16: Disassembly Sensor
- exceeding the permissible operating temperatures - reported errors If necessary, the MoldMaker system will notify the user in advance about the need to carry out service activities, eg. replacing the battery. Please note: due to ensuring the highest quality and reliability, the counters are designed as no-disassembleable devices.
Page 17: Table Of Contents
Table of contents 1. GENERAL ........................2 2. CREATING AN ACCOUNT IN MOLDMAKER SYSTEM ..........5 3. LOGGING IN MOLDMAKER SYSTEM VIA MOLDMAKER SCAN APPLICATION ..5 4. COUNTER ACTIVATION ....................6 5. ADDING NEW TOOL WITH NEW COUNTER ASSIGNMENT ......... 8 6.
