Q28 ASD

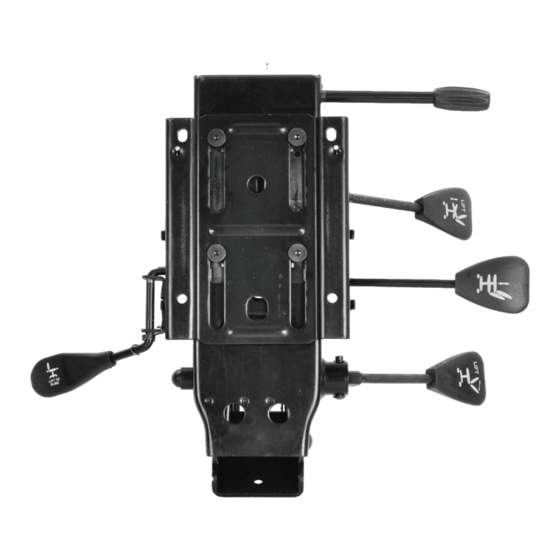

Mechanism Instructions
6
①

Tension Adjustment:

Turn the knob (under mechanism, not shown in photo) counter clockwise to
increase the tension for more resistance, turn knob clockwise to decrease
the tension for less resistance.
②
Infinite Forward Tilt:
Turn lever clockwise to lower the front edge of the seat.
To raise the front edge of seat, tilt seat back with lever #3 until seat locks,
then rotate lever counter clockwise.
③

Seat Tilt:

This paddle adjusts seat and backrest angle as a unit and allows chair
to free float. Lift paddle to allow chair to free float.
Push paddle down to lock the chair in any desired position.
④

Pneumatic Lift Adjustment:

Lift tab up to adjust seat height
⑤

Back Rest Angle Adjustment:

Pull up on the tab to make adjustments to back rest angle or
to allow the back rest to move with your body. Push paddle down to lock.
⑥

Adjustable Seat Depth:

Lift lever up to allow for adjustment of seat forward &
back. Release lever to lock seat in desired position.
the BIFMA sustainability standard
2
3
4
5
