Summary of Contents for Trolley Dollies FPS

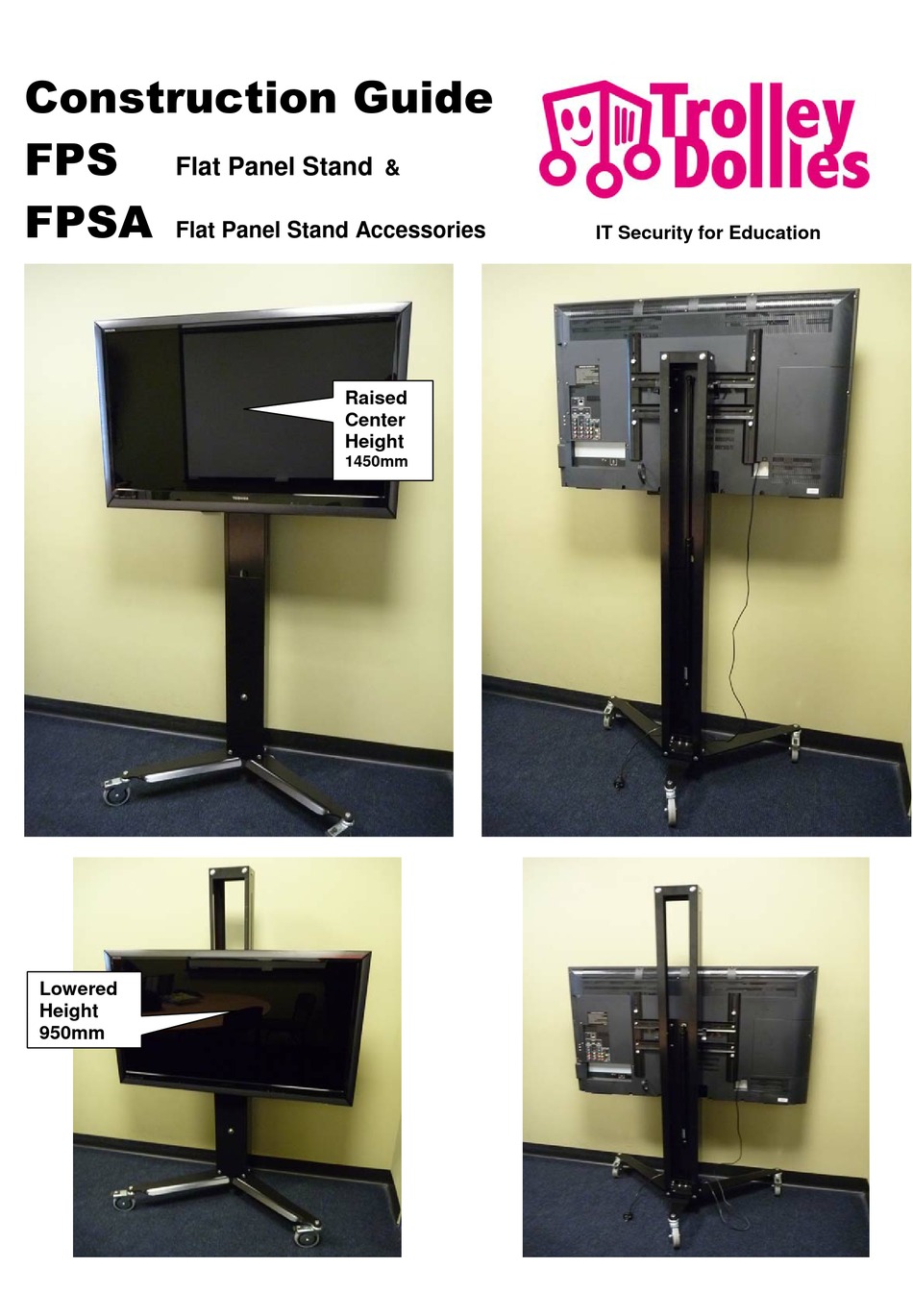

- Page 1 &RQVWUXFWLRQ *XLGH Flat Panel Stand & )36$ Flat Panel Stand Accessories IT Security for Education Raised Center Height 1450mm Lowered Height 950mm...
- Page 2 This product is designed as a generic product and some of the fasteners, holes and procedures may not apply to your products individual needs. As this product requires no drilling into walls, roofs or floors it is perfect for those buildings that may contain Asbestos. Mounting some of the items to this product will require you to consult the manufactures instructions, do so accordingly.
- Page 3 Step 3. Base Assembly, Parts required- 318, 319, 325 & 316 Secure all parts as shown using 8x20mm CHB’s. The Joggle (kink) in Part 319 needs to be orientated upwards as shown. Joggle Facing up Step 4. Main Support, Parts required- 314 Step 5.
- Page 4 Step 8. Top, Parts required-315 Secure 315 into position using 8x20mm CHB’s as shown Step 9 Mounting the Flat Panel, Parts required- 4x 313 Note: Minimum of 2-3 people are required for this step. Using two people remove the panel from it’s shipping box.
- Page 5 Step 10. Mounting the Shelf, Parts required-340, 341 Using two 8mm Hand Wheels mount the shelf to your required height as shown below. Note: The most efficient way to complete this task is by using to people. More than one shelf can be utilized on this stand. eg: Laptop at the front and DVD at the rear. Note: No more than one shelf should be placed to the front of the stand.
