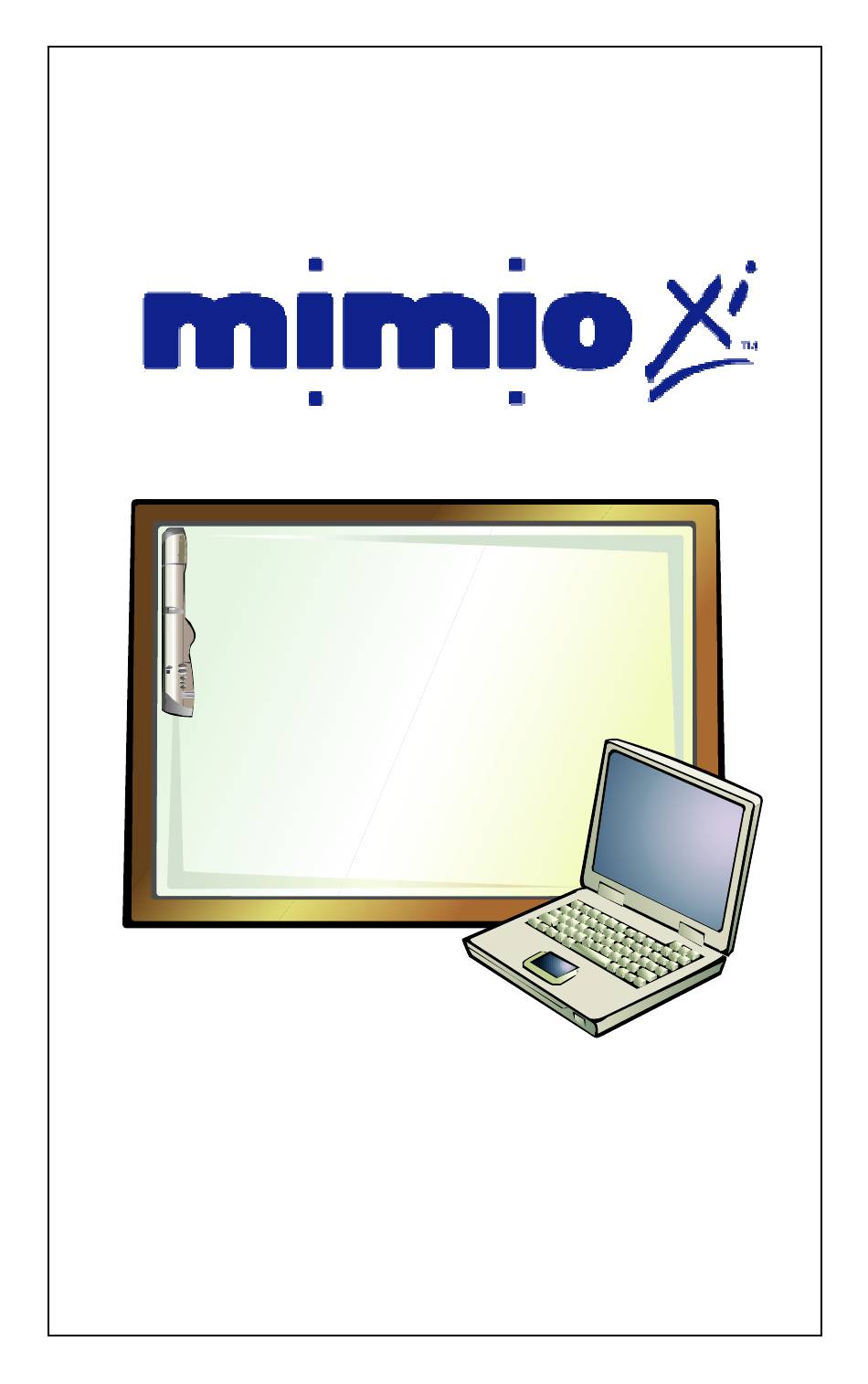

wireless mimio
Setup Guide for
For Windows 98SE/Me/2000 and XP
& Mac OS X 10.2 or later
Use this guide to quickly setup and use your mimio Xi wireless.
800-0138_02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mimio wireless and is the answer not in the manual?

Questions and answers

Summary of Contents for Virtual Ink mimio wireless

  • Page 1 wireless mimio Setup Guide for For Windows 98SE/Me/2000 and XP & Mac OS X 10.2 or later Use this guide to quickly setup and use your mimio Xi wireless. 800-0138_02...
  • Page 2: System Requirements

    Check your contents Your mimio wireless contains the following components: wireless module wireless receiver mimio software CD power supply 12” receiver USB cable System Requirements • Windows® Compatible PC with a Pentium II, 400 MHz processor minimum. • G3, G4, iMac, PowerBook G4 or iBook, PowerBook G3.
  • Page 3: Setup Process

    Setup Process 1. Depress the release 2. Insert/slide the button and slide the wireless module into module downwards mimio Xi capture bar. to remove the linkUSB module from the mimio Xi capture bar. 3. Install the mimio software if 4. Using the 12” receiver it is not already installed.
  • Page 4 5. Power on the device. mimio Xi can be powered by 4AA batteries or by the included AC power supply (US ONLY). 7. Begin writing with a mimio 6. Open the mimio software. stylus pen to use your wireless mimio Xi. Maximum wireless range is 30 feet in an open air environment.
  • Page 5: User Interface

    User Interface Power New page* indicator Learn Duplicate page* button** Print page* Minimize/maximize software application* Calibrate interactive mode* Link Status Data Transmission Link Status Indicator Green : A wireless link is established between the unit and the PC. Amber: There is no wireless link between the unit and the PC. Refer to the Troubleshooting section.
  • Page 6: Learning Process

    Learning Process The wireless mimio module and receiver are programmed at the factory and are packaged as a mated pair to work “out of the box” without user intervention . They are an exclusive pair of components that will only communicate to one another.
  • Page 7 1. Power on the mimio Xi capture bar (with wireless module). 2. Plug the wireless receiver into an available USB port on your PC. 3. Using a paper clip, press the teach button on the wireless receiver to initiate the learning process. module 4.
  • Page 8: Troubleshooting

    Troubleshooting If the Link Status LED on the mimio wireless module is amber, a wireless connection cannot be made between the mimio wireless module and the wireless receiver. Please try the following steps to establish a wireless connection: 1. Ensure the PC is powered and turned on.
  • Page 9: Technical Support

    Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Contact Virtual Ink Corporation, Brighton Landing East, 20 Guest Street – Suite 520, Boston, MA 02135. Technical Support: 877-846-3721.
  • Page 10 Support: +44 870 458 3366 RG19 4EW E-mail: eurosales@virtual-ink.com © 2005 Virtual Ink Corporation. All rights reserved. mimio is a registered trademark and mimio Xi is a trademark of Virtual Ink Corporation. Windows is a registered trademark of Microsoft, Inc. All rights reserved.
