Summary of Contents for LINKIND A19

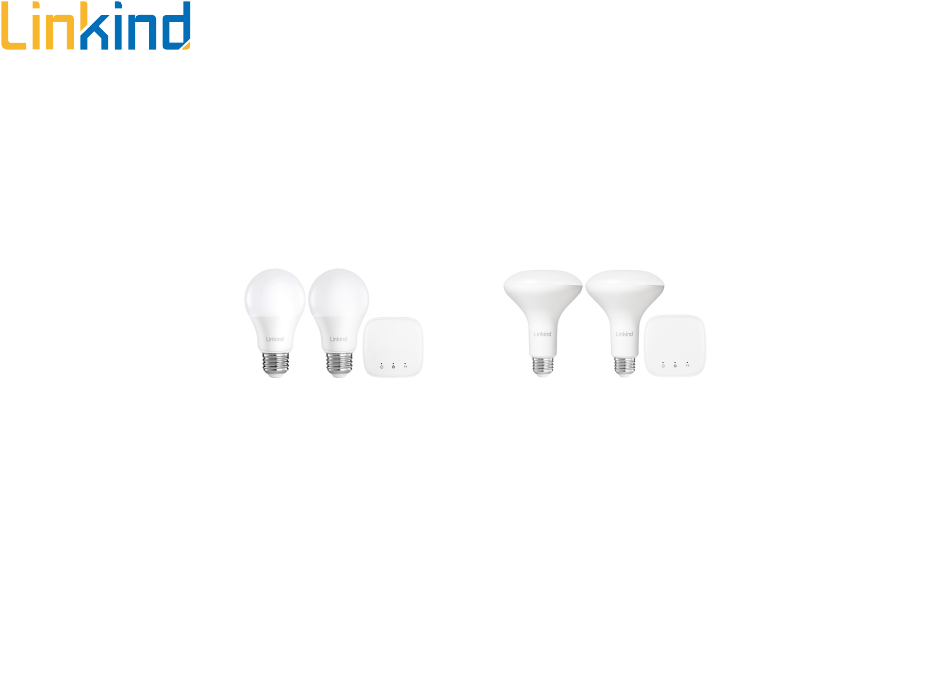

- Page 1 Smart LED Bulb Kit User Guide A19 Bulb Kit BR30 Bulb Kit If you have any questions of the installation or usage, contact us in the following ways: Phone: 1-855-999-6677 (24x7) Website: www.linkind.com Email: service@linkind.com LINKIND TECHNOLOGY CO.,LIMITED Ver 1.0...
-
Page 2: Table Of Contents
Content Cautions ……………………………………………………………………………………1 Products Overview ………………………………………………………………… 2 Linkind APP …………………………………………………………………………… 3 Add Smart LED Bulb Kit ………………………………………………………… 4 Add Mini Hub and Smart Bulb Separately …………………………… 6 Control the Smart Bulb ………………………………………………………… 9 Remove the Smart Bulb ………………………………………………………… 10 Remove the Mini Hub …………………………………………………………… 11 Scenes ……………………………………………………………………………………... -
Page 3: Cautions
Cautions To avoid personal injury and/or possible product damage, the following cautions must be followed: 1. Risk of electrical shock. Disconnect power at fuse or circuit breaker before installing or servicing. 2. To prevent early lamp failure, lamp should only be installed in operating environments ranging between -20°C and +40°C (-4°F and +104°F). -
Page 4: Products Overview

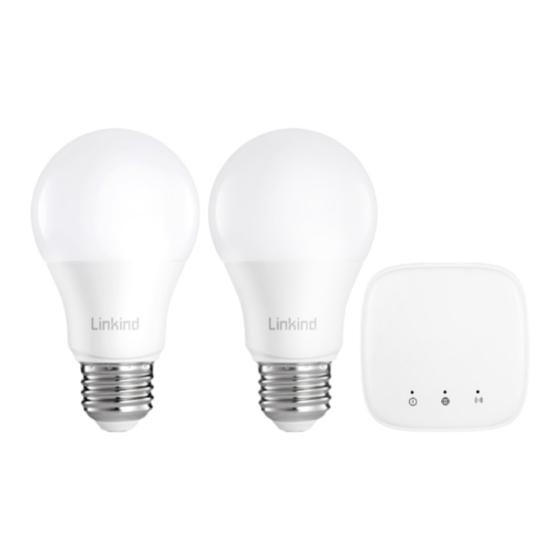

Products Overview A19 Bulb Kit BR30 Bulb Kit Protocol Zigbee 3.0 Zigbee 3.0 Watt Per Bulb 7.4W Base Lumens Per Bulb 800lm 700lm Dimmable: 2700K Dimmable: 2700K Light Appearance Tunable: 2700-6500K Tunable: 2700-6500K Light Dimming 1%-100% 1%-100% Beam Angle 240°... -
Page 5: Linkind App
1. Download Linkind APP 2. Register and Log in Get the "Linkind" app from App Store or Google Play. Linkind At Welcome page, tap "Create account", then "Agree" the app is applicable for iOS 8 or higher, Android 4.1 or higher. -
Page 6: Add Smart Led Bulb Kit
Tap "Take me to my settings", select "Mini-Hub-**" in the WLAN settings page. After your phone is connected to "Mini-Hub-**", return to Linkind APP. Step 2 Wait for the indicator on the right end of the Mini Hub to flash... - Page 7 Internet, and the Wi-Fi network is 2.4GHz. 2. Ensure you have entered the correct Wi-Fi password. 3. Ensure the Smart Bulb kit not added to another Linkind account. 4. Make sure you have allow all the APP access. If you're uncertain about it, please go to the Permission Settings of the APP and check.
-
Page 8: Add Mini Hub And Smart Bulb Separately
Select Wi-Fi: tap "Take me to my settings", select "Mini-Hub-**" in the WLAN settings page. After your phone is connected to "Mini-Hub-**", return to Linkind APP. Step 2 Wait for the indicator on the right end of the Mini Hub to flash once per second in green. - Page 9 Home page, select "Lighting" "+" to create a new room. - "Zigbee DIM A19"/"Zigbee CCT A19"/"Zigbee CCT A60" in the Device List; Re-plug in the smart bulbs and it will blink twice. If not, you need to power on and off the bulb consecutively for 6 times until it blinks twice.
- Page 10 Add Mini Hub and Smart Bulb Separately Step 7 The APP will automatically search for and add the smart bulb. Once the bulb is found, it will blink once and be added in the APP. If all bulbs appear at the "Searching For Device" page, tap "Stop searching" to stop the search. Tap "Test" to check where the connected bulb is.
-
Page 11: Control The Smart Bulb
Control the Smart Bulb On/off Settings of the smart bulb You can turn on/off the smart bulb at Home page. at the top right corner of bulb page for setting change. You can set the name, change the icon of the bulb, change the Dimming group it is listed in and so on. -
Page 12: Remove The Smart Bulb
Remove the Smart Bulb The smart bulb, if removed, will restore its factory defaults and no longer be listed on your account. Two ways to remove the bulb: Method 1 Long press the bulb you want to remove at Home page, tap at the top left, tap "Yes"... -
Page 13: Remove The Mini Hub
Remove the Mini Hub Two ways to remove the Mini Hub: Method 1 Long press the Mini Hub you want to remove at Home page, tap at the top left, tap "Yes" to delete the Mini Hub. Or tap "Remove" in the setting page of the Mini Hub. -
Page 14: Scenes
Scenes Scenes function enables you save many customized smart Set all Devices you need, then tap "Save" to complete the Scene home scenes you like. You can quickly switch to the scene you settings. At Scene page, taping the corresponding Scene allows prefer if needed. -
Page 15: Timer
Timer Set the timer At "Smart" page, tap at the top right corner, select "Time of With all settings done, you can tap "Preview" at Time of Day page to preview all the effects going to be triggered. Day" into timer creating page. Fill in the name of the timer, schedule the time and select a repeat mode. - Page 16 Timer View/Edit timer All timers saved will be listed at "Smart" page. You can enable or Remove timer disable relevant timer by taping Swipe the timer card to the left at "Smart" page. You can remove that card by tapping "Remove". At "Smart"...
-
Page 17: Ifttt
IFTTT Note: to perform IFTTT, make sure there is a motion sensor, or door/window sensor. door/window sensor added on the APP. Return to previous page, tap "Anytime" to set the period when IFTTT is a feature used to have automation over your lights with the trigger is taken into effect. - Page 18 IFTTT View/Edit IFTTT Remove IFTTT Swipe the IFTTT card to the left at Smart page. You can remove All IFTTT saved will be listed at "Smart" page. You can enable or that card by tapping "Remove". disable relevant IFTTT by taping At "Smart"...
-
Page 19: Home Setting
Home Setting Create Another Home Home Setting Tap the "Home" you created(default name: My Home) at Home In "Home Management", tap the "Home" you want to edit to do page, turn to "Home Management" page. Tap "Create" at the top the settings. -
Page 20: Home Share
Invitee needs to open the letter subjected with "Home Share smart devices to others. Invitation". Click "Accept invitation" to confirm the acceptance. Then the invitee is able to log in his Linkind account to control Tap the "Home" you created to go to detailed settings. Tap the shared Home. -
Page 21: Room
Room "Room" helps you organize the devices within "Home". If you Edit Room have too many devices to remember where they are, use In "Room Management" page, choose a "Room", edit or remove "Room" to manage them. the "Room" in "Room Settings". Remember to tap "Save" in the last step. - Page 22 Room Room Switch All Control In Home page, slide horizontally to view "ALL", "EVERYTHING ..." All control is a function allows you to control all devices, and Room created in the list, switch to one with a single tap. especially smart light, included in the same Room together. In Home page, tap to turn on/ off the devices in the Room.
-
Page 23: Work With Alexa
Go to Alexa app, tap the icon at the top left, select "SKILLS & Choose the displayed "Linkind", then tap "ENABLE TO USE". In GAMES" and tap the search icon at the top right. Enter "Linkind" the new page, fill in your Linkind account and password, then and search. - Page 24 Work with Alexa Step 3 Tap "Discover Devices" in the new page, Alexa will begin discovering your Linkind devices. Once the devices are found, you’re able to voice control them with Alexa. Another way to "Discover Devices": Tap the "+" at the top right corner of "Devices" on Alexa APP, choose "Add Devices", scroll to the...
-
Page 25: Fcc Compliance Statement
Smart LED A19 Bulb (Dimmable White) FCC ID: 2ASHKZL100010006 Smart LED A19 Bulb (Tunable White) FCC ID: 2ASHKZL100010004 Smart LED BR30 Bulb (Tunable White) UL Listed: ZL100050004 Mini Hub (Zigbee 3.0) FCC ID: 2ASHKZS120000001 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
