Summary of Contents for Mega Medical NET-280
- Page 1 * CONTENTS* 1. Introduction 2. Construction 3. Installation 4. Specifications. 4.1 Electrical Spec. 4.2 Electronic Spec. 5. Caution 1. Introduction...

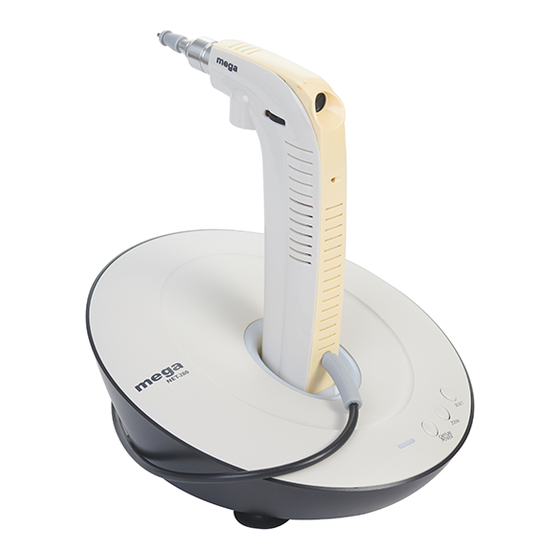

- Page 2 NET-280-WLS is electrical transmission system to send a high quality image by using ISM BAND 2.4GHz radio frequency. The sending image to receiver show on the monitor and can see natural color by naked eye at once. Features. - High quality image CCD Sensor : Sony 1/4 Inch, 410,000 Pixels - Power Save : Auto Power Off (30Sec) of sender(Handgun).
- Page 3 2. Construction...
- Page 4 3. Installation...
- Page 5 4. Specifications 4.1 Electrical Spec. 4.2 Electronic Spec. Parameters Specifications Unit Remarks Li-ion, 7.4V Battery Operating Voltage DC 12V Adaptor Operating Temperatures -10 ~ +65 ℃ Frequency 2410 ～ 2470 ㎒ Channels Pixels 410,000 Sony CCD pixels Power Consumptions Antenna Dipole(1/4λ) Recharge Times Hours...
- Page 6 - Power Off After Using Capture To Protect High Level LED - Install Receiver at Good Ventilation Place - Don’t Disassemble It, Except MEGA Engineer - Don’t Drop Sender/Handgun - Only Using Adaptor Supplied By MEGA MEDICAL - Charging Battery When Handgun Turn Off Automatically...
- Page 7 Megamedical. Co., Ltd. FCC Compliance Statement. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
