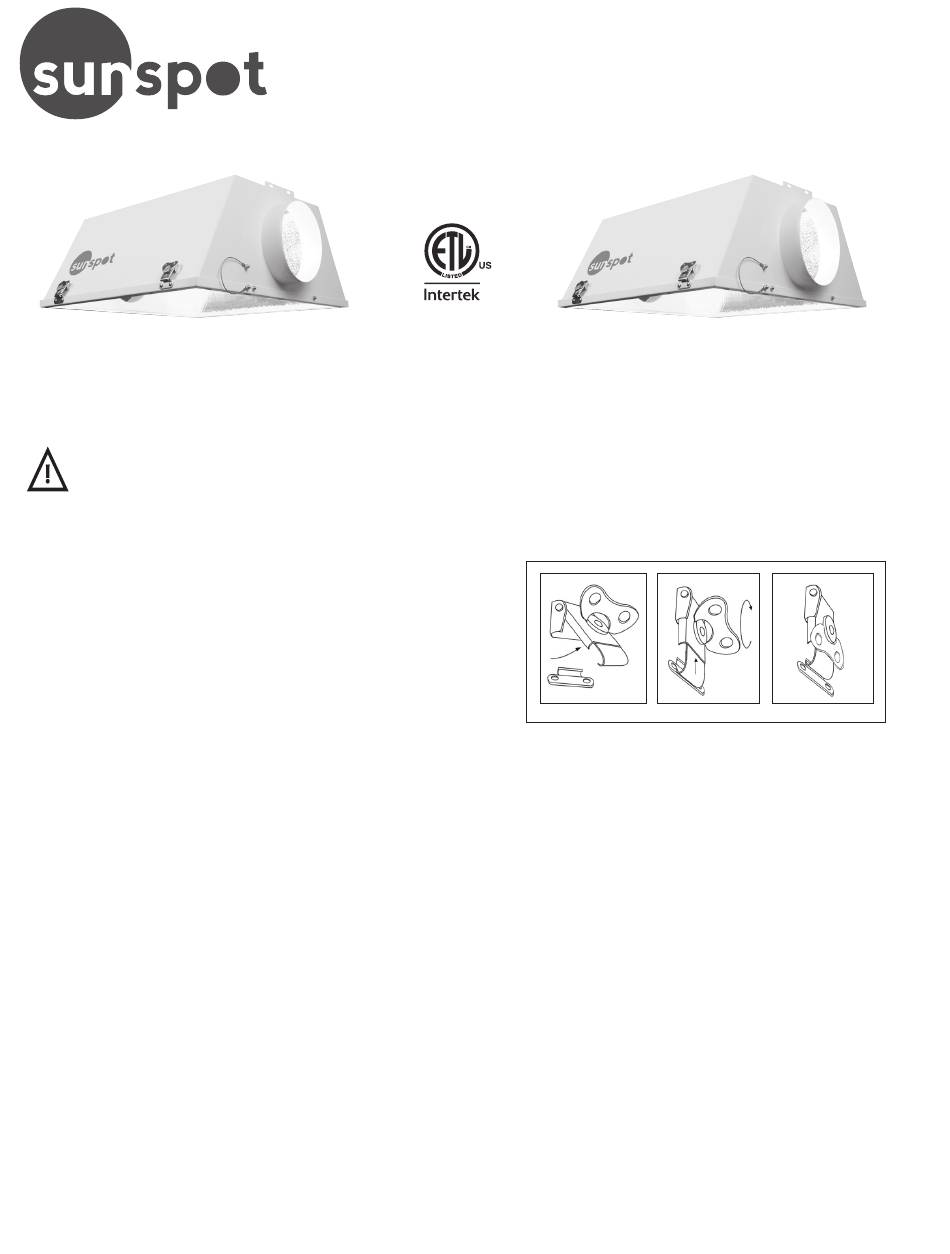

Sunspot 6 Instructions

6
23.02" x 21.26" x 8.52"
6" inline flanges and tempered
glass lens for air cooling

WARNING

• Do not exceed the maximum ratings of this unit.
• Do not use the power cord to hang the unit.
• Do not expose the unit to water.

WING LATCH OPERATION

Unique wing latches and UV/heat resistant gasket provide a secure
and complete seal for effective air cooling.

INSTALLATION

1. Hook the provided hangers through the hardware ports at the top of the reflector housing.
2. Confirm hangers are secure, then hang the reflector from a sufficient support and adjust until reflector is level.
3. Install lamp* into socket and wipe clean with a soft dry cloth.
4. Swing lens closed and securely fasten wing latches.
5. Plug the integrated lamp cord into a ballast* that matches the lamp wattage.
*Lamp and remote ballast sold separately.

LENS REPLACEmENT

1. Unplug the ballast and allow sufficient time for all lighting components to cool completely.
2. Unplug the reflector's integrated lamp cord from the ballast.
3. Unhook the entire reflector and move it, with lens facing downward, to a level surface to avoid personal injury and/or damage
to the unit.
4. Loosen wing latches, and unscrew the lens cable acorn nuts on the lens frame only. Detach lens cables from the lens frame.
5. Remove the lens frame from the lens frame hinges.
6. Unscrew all acorn nuts on lens retention brackets and remove the brackets.
7. Replace the lens. Remember to reattach the brackets and cables before hanging the reflector.
H I D
READ AND SAVE THESE INSTRUCTIONS
sunspotHID.com
6 & 8
R E F L E C T O R S
8
23.04" x 21.26" x 10.52"
8" inline flanges and tempered
glass lens for air cooling
1. 2.
Open
3.
Closed
42015
