The manual for the Installation, use and maintenance of the fireplace
CONTENTS
Fireplce Configuration：..................................3
Structural Decomposition：..............................4
Product Key Description：...............................5
Installation Notes：........................................6
Product Using：............................................13
Voice Prompts Description：...........................14
Maintenance & Warranty：..............................15
1
Advertisement
Summary of Contents for MCS Design ET Series
-
Page 1: Table Of Contents
The manual for the Installation, use and maintenance of the fireplace CONTENTS Fireplce Configuration：…………………………….3 Structural Decomposition：…………………………4 Product Key Description：………………………….5 Installation Notes：………………………………….6 Product Using：……………………………………..13 Voice Prompts Description：………………………14 Maintenance & Warranty：…………………………15... - Page 2 Thanks for choosing and using our intelligent 3D fireplaces with remote control .Please read the instructions carefully when you are ready to use the product.And please kindly operate the fireplace in accordance with the procedure so you can fully enjoy the services provided by our company.
- Page 3 For your safety: Please don't store or use any flammable, gas or liquid in the fireplace or in 500mm range around the fireplace. To install officers: Please leave this manual when installing equipment. To the user: Please keep this manual for future reference. The configuration table specification: subject to the actual purchase...
-

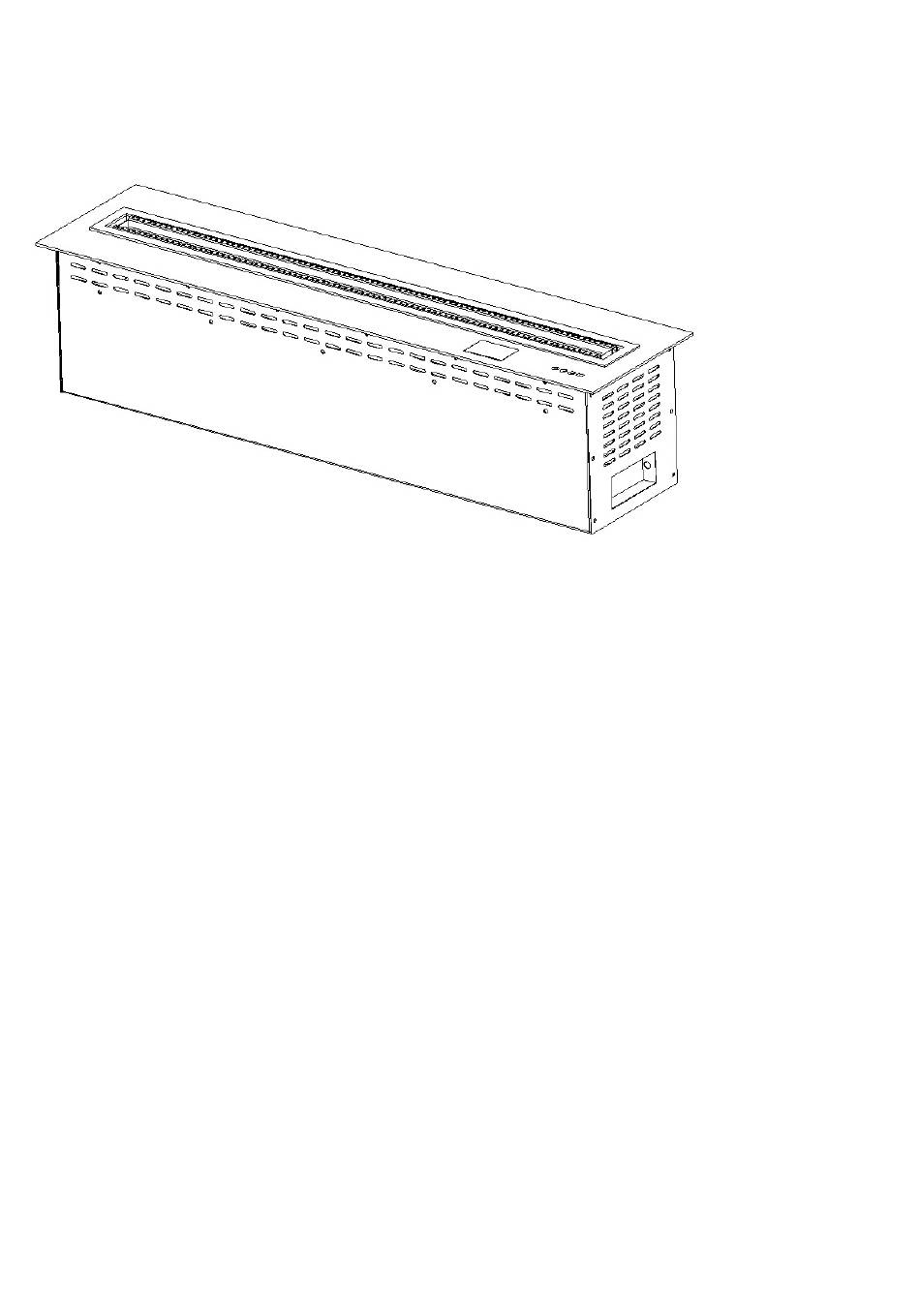

Page 4: Fireplce Configuration
basic configuration >tilt automatic protection devices>high energy ignition devices>child lock device >panel temperature over-top protection device>tank upper and lower limit reminder protection>voice prompt(Chinese and English optional)on tank optional indoor carbon dioxide remind protection device>indoor temperature device Meet a criterion Meet a criterion CE.CMA Accessories manual,remote control,power... -
Page 5: Structural Decomposition
Structural decomposition 1. high-energy ignition head 2.alcohol outlets 3.high-level probe 4.alcohol discharge pipe 5.the discharge valve 6.alcohol filler one 7.the power switch 8. the low level probe 9.the start switch 10.the switch for filling alcohol 11.the alarm release switch 12.the probe signal is received 13.DC power input plug 14. -
Page 6: Product Key Description
Product Key Description Host panel buttons The start switch ( ignition automatically and adding the ethanol automatically after starting) Filling fuel switch ( add fuel automatically after start the button and stop automatically after filling full） Discard Alarm switch (this lamp will stay lit when the device fails ) Child lock switch (hold down the two keys and the child lock switch will start. -
Page 7: Installation Notes
Discard Alarm switch (this lamp will stay lit when the device fails .Press the button and the alarm will be discarded) Installation Notes Installation requirements: There should be no flammable materials near to the fireplace and the space upper the fireplace left Should be 80-100CM.The fireplace can be decorated by nonflammable decorations, such as stone,metal materials and refractories etc.But we can't use gypsum board , wood and other combustible materials to decorate the wall side face , surface or top... - Page 8 the installing holes. There should be 0.16 square meter for ventilation every per 1meter of the fireplace.So it is good for Ventilation and heat dispersion as well as assisted combustion When multiple fireplaces are installed and used at the same time.It must be in a well ventilation environment.
- Page 9 surface level floor where there is no combustible all around 50CM range . The fireplace can not be installed on an uneven surface table or floor.If the tilt is beyond 15 degrees,the machine will start dumping protection device and the machine will alarm. And the machine will not start.
- Page 10 Alcohol filler（１） ： As shown in picture B: open fireplace panel door, you will see a plastic tube mouth (there is a power switch inside the machine ) connected the random distribution hose into alcohol bucket purchased back.When turn on the filling switch, it can automatically extract the alcohol to the fireplace fuel tank (if it is the initial power-up,filling pump will automatically start to fill .If the fuel tank does not reach a high level within 25 minutes, the machine will alarm and stop working.) After all filled up, it will automatically stop filling.And then pull out...
- Page 11 fire. The panel can not be higher than room temperature then you can only add alcohol fuel . after filling is completed, please pinch the hose by hand and rigid plastic pipes connecting swiftly and pull out. The alcohol dripped on panel needs to be wiped with a rag. If you do not operate in accordance with this requirement, the user is responsible for all the consequences.
- Page 12 tank,.And the working condition is normal . Special note: Fireplace flame burning normally.we can not carry or move fireplace or let children close and touch it without supervision.We can not touch the fireplace when the panel temperature rises.The human face, hands and other skin can not be close to the fireplace flames.
- Page 13 the room type.Flame height will be different normally 10-40cm.We can not artificially adjust the flame size and height. ethanol emissions in the Internal fireplace: When the fireplace requires to be maintenance or repaired or transported , internal ethanol in the fuel box's must be drained before they can are transported.Please lift the fireplace to 70-100CM's position .At the left of the bottom of the fireplace there is a drain switch and in the left side there is discharge hose.Use appropriate bucket to store.If can’t drain alcohol,please raise another end to a proper position until no alcohol outflow internal.
-
Page 14: Product Using
Picture B Before installing the machine ,please deal with the machine on-site commissioning and operate the machine by connecting the power.Please fill alcohol (It is not necessary to fill full.while filling , press key of filling alcohol until we can manually stop the filling pump stop). let the machine run for ten minutes (during the operation of the machine,no alarm appears.Then it can be turned off).When machine is cool down to be opened drain valve at the bottom of the machine,please discharge the internal alcohol.After the alcohol is... -
Page 15: Voice Prompts Description
power crush or pull DC head bad or broken). Voice prompt instructions Voice prompt (1) (The water level in the storage tank is too low. Please turn off the machine.And Add the fuel when the machine is cooling.)Please operate the machine according to the voice prompts. -
Page 16: Maintenance & Warranty
Other non-voice alert occurs, please contact the manufacturer.The exclusion of alarm should be done in the manufacturer's instructions. The machine can not be allowed to flip or dismantling.If operation the machine without the manufacturer's agreement or guidance and some problems occur, our company will not assume any responsibility. Maintenance When fireplace is working for a long time, the alcohol will burn a little splash Falling or there is some little impurities after burning alcohol falling in the panel surface.And there will be... - Page 17 paint face broken. C:find fault not stopping in time, causing damage of all or part of the machine. D:human demolition modification or using the parts which are not original. E: the damage caused by natural disasters rejected by humans such as lightning, earthquakes, floods, fires, wars etc.
- Page 18 1165L/1.165CBM value generate carbon dioxide oxygen power 50-60Hz 1.5A ignition state 110V/3.5A.220V/2 current standby current 0.15-0.25A generate carbon 0.78CBM dioxide external power DC 12V/10A combustion heat 8.3KW supply output voltage/current working current 0.4A MCS Design im Auftrag von Entu/China.
