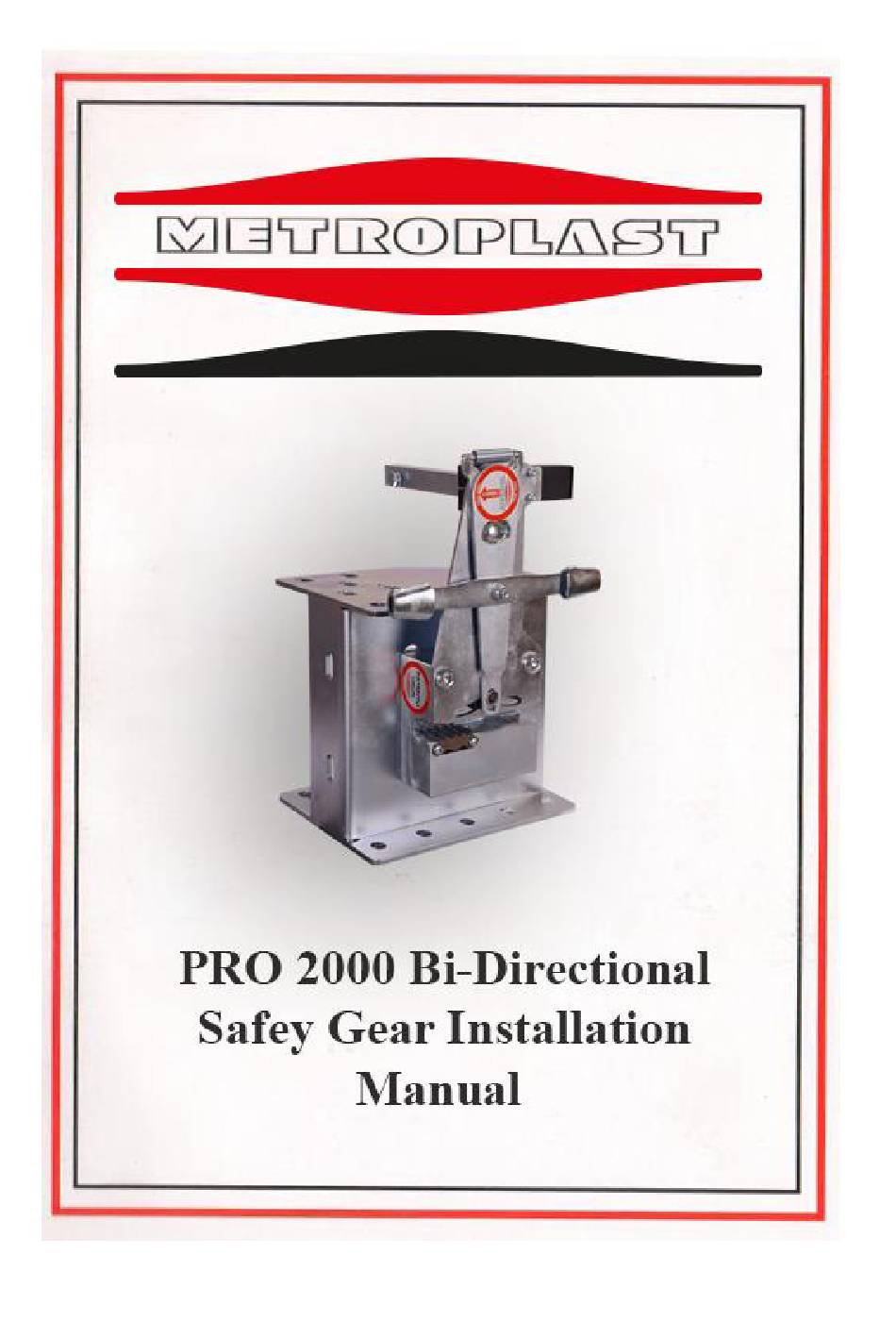

Summary of Contents for Metroplast PRO 2000
-
Page 2: Table Of Contents
CONTENTS 1. Security Equipment Selection Criteria ………………………..3 2. Advantages of Usage of PRO 2000…..……………….…….…3 3. Sign Analysis ………………………………………………….3 4. General Rules ……………………………….……………..4 5. Security Equipment Components …………………..…………5 6. Brake – Rail Position ………………………..………………...5 7. Installation of Security Equipment…………………………….6 8. Regulator Connection …………….……………………..…….7 9. -
Page 3: Security Equipment Selection Criteria
Treated Greasy → Cold Drawn Greasy 2. --- ADVANTAGES OF USAGE OF PRO 2000: In the event that the declared speed is exceeded, braking upstream and downstream activates with the movement taken from speed regulator. It provides easy installation, it does not require complicated processes. -
Page 4: General Rules
4.—GENERAL RULES: This installation manual has been prepared for realization of connection of the product onto the suspension in a safe way, and for maintenance of the security equipment. KEEP THE MANUAL IN A PLACE WHERE ALL STAFF INTERESTED IN THIS JOB CAN EASILY READ IT. ... -
Page 5: Security Equipment Components
5. SECURITY EQUIPMENT CONNECTION: Connection of security equipment blocks can be made onto the heads of lower or upper girders of suspension. It provides an easy connection through 4 M12 bolts. Connection bolts should be steel bolts in quality to meet the load in braking. The connection of twins block in both sides should be provided by the help of a Part that can wholly forward the movement to the moving shafts of both blocks. -
Page 6: Installation Of Security Equipment
7. INSTALLATION OF SECURITY EQUIPMENT Make sure that the brake is in the correct position during installation process. Loads that the brake will stop downstream and upstream are different. The tip of the arrow on the brake should be upstream. The brake has been adjusted in way that it can stop a load of (P + Q) downstream and that of Q/2 upstream. -
Page 7: Regulator Connection
8. REGULATOR CONNECTION It is necessary that brake handle be in the same direction with the regulator rope in the connection of brake block onto the suspension. Brake handle can be placed in brake blocks in both sides. Brake blocks must definitely not be reversed while performing such adjustment. Upstream should always be fixed. -
Page 8: Important Warnings
Main locking direction of the beak of the regulator should be downstream, however, regulators are bidirectional. Please make sure that the rope coming from the speed regulator to the brake handle is connected in way that it does not prevent the movement of the brake handle and loosen. Check whether or not the drawing direction of the rope is in a way that it realizes the braking upstream in the event that the speed regulator is locked. -
Page 9: Label Sample
11. LABEL SAMPLE 12. MAINTENANCE DETAILS No excessive lubricating should be done on the rails. In regular maintenances every month, whether foreign matters exist inside of the brake block or not should be checked and corrosion formation should be prevented. Reel seats should be checked in monthly maintenances and inside of the reel seats should be cleaned during the 6 months or yearly maintenances. -
Page 10: Transportation And Storage Transportation And Storage
Please take precautions against falling, crashing and any kind of deformation lest the brake blocks are damaged Please take the necessary safety precautions during the installation processes in high places. Wear barrette and safety belt and make sure that the installation place is safe. 14. -
Page 11: Braking Registry Form
15. BRAKING REGISTRY FORM “The security guard should be readjusted after 4 trials and its parts should be replaced.” Order Date Braking Speed P + Q Remarks...
