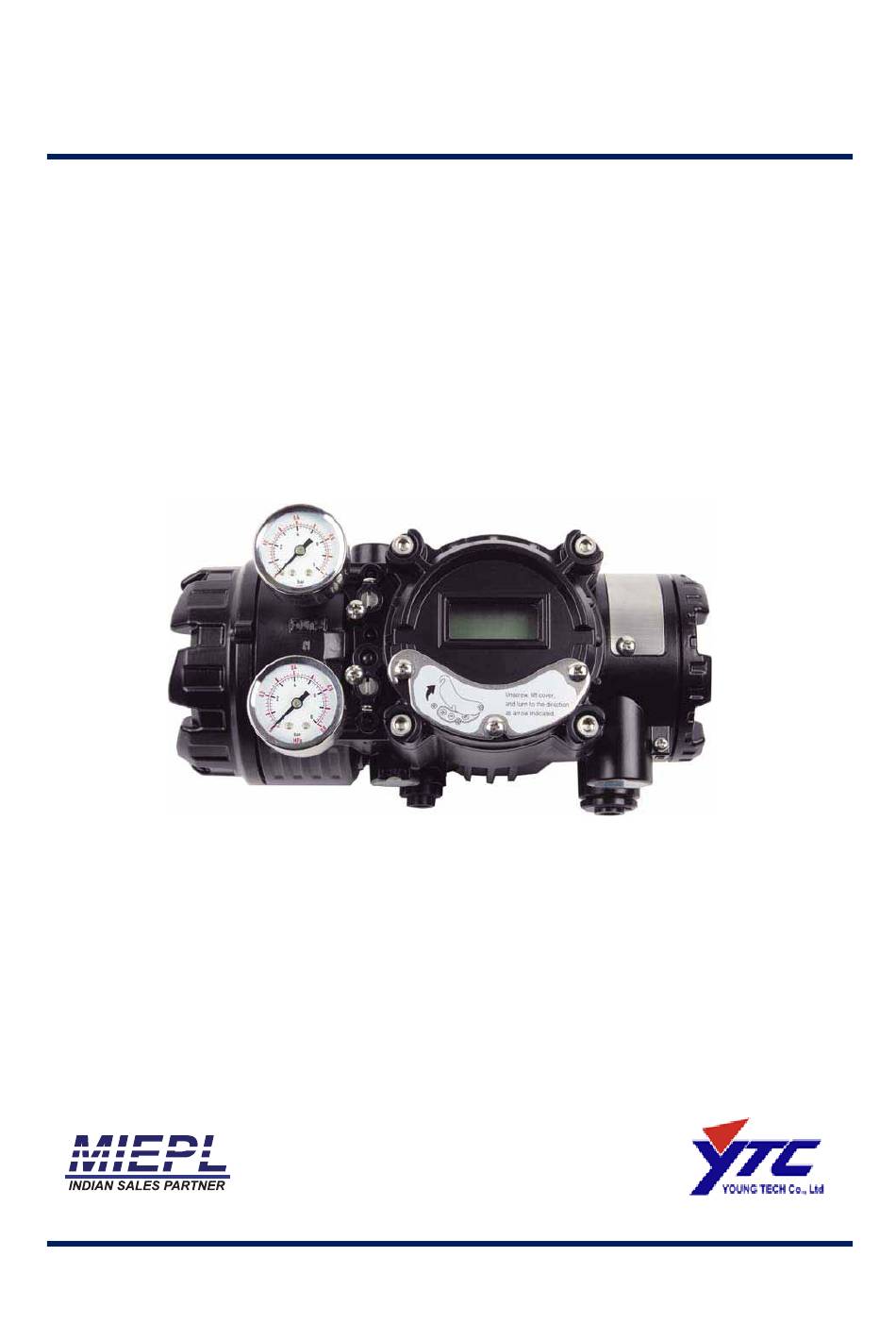

- Page 1 SMART POSITIONER PRODUCT MANUAL YT-2600 SERIES VERSION 1.04...
-
Page 2: Table Of Contents
Contents 1. Introduction …………………………………………………………………………………………… 1.1 General information for the users ………………………………………………………………. 1.2 Manufacturer Warranty …………………………………………………………………………… 4 1.3 Explosion Proof Warning ………………………………………………………………………. 2. Product Description ………………………………………………………………………………….. 2.1 General …………………………………………………………………………………………….. 2.2 Main Features and Functions ……………………………………………………………………. 5 2.3 Label Description ………………………………………………………………………………….. 6 2.4 Product Number ……………………………………………………………………………………... - Page 3 5.2 Variable Orifice Adjustment ………………………………………………………………………. 18 6. Operation ………………………………………………………………………………………………… 19 6.1 Safety ………………………………………………………………………………………………. 19 6.2 Button Description ………………………………………………………………………………… 19 6.3 Run Mode (RUN) ………………………………………………………………………………….. 19 6.3.1 Auto Calibration (AUTO CAL) …………………………………………………………. 20 6.3.1.1 AUTO1 Calibration (AUTO1) ……………………………………………….. 20 6.3.1.2 AUTO2 Calibration (AUTO2) ……………………………………………….. 20 6.3.1.3 AUTO3 Calibration (AUTO3) ………………………………………………..
-
Page 4: Introduction
1. Introduction General Information for the users Thank you for purchasing Young Tech Co., Ltd products. Each product has been fully inspected after its production to offer you the highest quality and reliable performance. Please read the product manual carefully prior to installing and commission the product. For the safety, it is important to follow the instructions in the manual. -
Page 5: Product Description
present at the installation site. Power should be turned off completed when opening product’s cover. When opening the cover, ensure that there is no power remaining in any electrical parts nearby. YT-2600 series has 2 ports for power connection. Explosion proof type wires and ... -
Page 6: Label Description
Label Description Fig. 1: YT-2600 Body Label Model: Indicates the model number of the positioner. Supply: Indicates the supply pressure range. Amb. Temp.: Indicates the allowable ambient temperature. Input Signal: Indicates input signal range. Protection of Enclosure: Indicates protection grade. Explosion Proof: Indicates certified explosion proof grade. -
Page 7: Product Specification
Product Specification Model YT-2600L YT-2600R Acting Type Single Double Single Double Input Signal 4~20mA DC Minimum Current Signal 3.2mA(Standard), 3.8mA(Hart Included) Supply Pressure 0.14~0.7 MPa (1.4~7 bar) Stroke 10~150 mm 0~90° Impedance Max.460Ω @ 20mA DC Air Connection PT, NPT 1/4 Gauge Connection PT, NPT 1/8 Conduit Entry... -
Page 8: Parts And Assembly
Parts and Assembly Fig. 2: YT-2600 series exploded view 1. Pilot Cover 6. Potentiometer 2. Pilot Unit 7. Main Body 3. Main Cover 8. Terminal PCB 4. Main PCB 9. Terminal Cover 5. Feedback Lever Product Dimension 2.7.1 YT-2600L YT-2600 series... -
Page 9: Yt-2600R
2.7.2 YT-2600R 3. Installation Safety When installing a positioner, please ensure to read and follow safety instructions. Any input or supply pressures to valve, actuator, and / or to other related devices must be turned off. Use bypass valve or other supportive equipment to avoid entire system “shut down”. ... -
Page 10: Installation Steps
3.2.1 Installation Steps 1. Proper bracket must be made in order to adapt the positioner on the actuator yoke. Please consider following important points when a bracket is being designed. Positioner’s feedback lever must be parallel to the ground at 50% of the valve stroke. ... - Page 11 7. Check if feedback lever is parallel to the ground at 50% of the valve stroke. If it is not parallel, adjust the bracket or feedback link bar to make parallel. Improper installation may cause poor linearity and may create unnecessary hunting during the operation. 8.
-
Page 12: Yt-2600R Installation
YT-2600R Installation YT-2600R should be installed on rotary motion valve such as ball or butterfly type which uses rack and pinion, scotch yoke or other type of actuators which stem rotates 90 degrees. Before proceeding with the installation, ensure following components are available. Positioner unit ... -
Page 13: Installation Steps
3.3.2 Installation Steps 1. Please check the actuator’s stem height and adjust the bracket by referring to the bracket table. 2. Attached the bracket onto the actuator. It is recommended to use spring washer so the bolts will not be loosen from vibration. 3. -
Page 14: Connections
4. Connections Safety Supply pressure should be clean and dry air – avoiding moisture, oil or dust. Always recommended to use air filter regulator (i.e. YT-200 series). Young Tech Co., Ltd has not tested positioner’s operation with any other gases ... -
Page 15: Double Acting Actuator
4.4.2 Double acting actuator Double acting type positioner is set to use OUT1 and OUT2 port. As input signal increases, the supply pressure will be supplied through OUT1 port. Fig. 8: Double acting linear (left) and rotary (right) type actuator Connection –... -
Page 16: Terminal Overview
4.5.2 Terminal Overview Fig. 9: Positioner Terminal IN +: Input Signal (+) Upper right 3 terminals: Limit switch 0% IN -: Input Signal (-) Lower right 3 terminals: Limit switch 100% OUT+: Feedback Signal (+) OUT-: Feedback Signal (-) 4.5.2.1 Input Signal Terminal 1. -
Page 17: Limit Switch Terminal
4.5.2.3 Limit Switch Terminal 1. Open terminal cover and locate limit switch terminals. <Fig. 9> 2. Locate terminal of limit switch and connect (+) and (-) according to the polarity. Make sure to tighten bolts with 1.5 Nm (15 kgf/cm 3. -
Page 18: Adjustment
5. Adjustments Limit Switch Adjustment 1. HIGH variable resistor adjusts the sensing point of valve end-point. In case of Direct Action type, it will sense 4mA point, and for Reverse Action type, 20mA of input signal will be its sensing point. Upon sensing, red LED will be lighted. 2. -
Page 19: Operation
6. Operation Safety Following process will operate valve and actuator. Before proceed with any AUTO Calibration, please separate valve from the entire system, so AUTO Calibration will affect entire valve process. Button Description Positioner has 4 buttons, and they enable to perform various functions. Fig. -
Page 20: Auto Calibration (Auto Cal)
6.3.1 Auto Calibration (AUTO CAL) Auto Calibration (AUTO CAL) automatically calibrates the positioner. “AUTO CAL” process takes about 2~3 minutes, and the duration of the process varies upon the size of the actuator. There are 3 types of AUTO CAL. Zero Point End Point KP, KI, KD... -
Page 21: Auto3 Calibration (Auto3)
6.3.1.3 AUTO3 Calibration (AUTO3) AUTO3 changes only the valve parameters. ⇨ ⇨ ⇨ <ENTER> <ENTER> <DOWN> 6 seconds 2 times ⇨ <ENTER> 6.3.2 Manual Mode (MANUAL) Manual mode is used to maneuver valve stem manually. During “MANUAL”, the positioner bypasses supply air to the actuator. The movement of the stroke does not affect the positioner’s save data valves. -
Page 22: P1 Value (Kp1)
⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 6 seconds 2 times ⇨ ⇨ ⇨ <ENTER> <ESC> <UP>/<DOWN> 3 times <ENTER> 6.3.3.2 P1 value (KP1) P value indicates the ratio of the compensation signal based on the percentage of error allowance. As the value increase, the positioner finds the target value quickly, but it is more likely to have hunting. -
Page 23: P2 (Kp2) And D2 (Kd2) Values
6.3.3.4 P2 (KP2) and D2 (Kd2) values P2 and D2 values’ principles are same as P1 and D1, but these values are applicable for only when input signal is decreasing. 6.3.3.5 P_ (KP_) and D_ (Kd_) values P_ and D_ values’ principles are same as P and D, but these values are applicable only when the positioner’s actual stroke reaches its target stroke per input signal. -
Page 24: Hand Calibration Mode (Hand Cal)
⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 10 times ⇨ ⇨ <ESC> <UP>/<DOWN> 3 times · < > 6.3.4 Hand Calibration Mode (HAND CAL) The positioner can be manually calibrated by entering into Hand Calibration Mode. 6.3.4.1 Zero-Point (PV_ZERO) and End-Point (PV_END) for Valves PZ_ZERO adjusts the zero point of the valve, and PV_END adjusts the end point of the valve. -
Page 25: End-Point Ratio For Valve (Pe_Trim)
⇨ ⇨ ⇨ <DOWN> <ENTER> <UP>/<DOWN) Match feedback Zero Adjustment <ENTER> signal with 4mA ⇨ ⇨ ⇨ <ESC> <DOWN> <ENTER> End Adjustment ⇨ ⇨ <ESC> <UP>/<DOWN) Match feedback <ENTER> signal with 20mA 6.3.4.3 End-Point Ratio for Valve (PE_TRIM) When reverse acting operating is used, End-Point can be adjusted within 10% of total valve stroke, without adjusting valve’s zero point. -
Page 26: Normal / Reverse Hart Signal (Ht_Norm / Revs)
6.3.4.5 Normal / Reverse HART Signal (HT_NORM / REVS) HART signal from the positioner can be viewed as normal or as reverse. ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 6 times Zero Adjustment ⇨ ⇨ ⇨ <DOWN> <ENTER> <ESC> 3 times 6.3.5 Valve Mode (VALVE) 6.3.5.1 Acting Adjustment (ACT) -
Page 27: User Characteristics (User Set)
⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> ⇨ ⇨ <ESC> <UP>/<DOWN> 3 times <ENTER> 6.3.5.3 User Characteristics (USER SET) In case positioner requires a specific characteristic, the valve characteristic curve can be made by selecting up to 16 points of the curve. ⇨... -
Page 28: Tight Shut Close (Tshut Cl)
6.3.5.5 Tight Shut Close (TSHUT CL) Tight Shut Close allows the valve to close completely as the input signal reaches around 4mA. ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 6 seconds 4 times ⇨ ⇨ <ESC> <UP>/<DOWN> 3 times <ENTER> 6.3.5.6 Split Range Mode (SPLIT) The valve can be operated by split range control –... -
Page 29: View Mode (View)
6.3.6 View Mode (VIEW) Different information can be shown on the positioner’s LCD. <UP>/<DOWN> ⇨ ⇨ <ESC> <DOWN> <ENTER> 4 times Description YT-2600L Positioner model VERSION Main software version HART V HART protocol version POL AddR HART protocol channel address Total used time duration. -
Page 30: Warning Code
Adjust bracket so the positioner Operating angle is too small due to RNG ERR mounted closer improper positioner installation. actuator. Error of 10% or more persists more than 1 minute. Perform BIAS calibration. No valve movement. Check setting pressure of actuator. -
Page 31: Main Software Map
8. Main Software Map YT-2600 series...
