Par-Kan Grain-Weigh GW200A User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

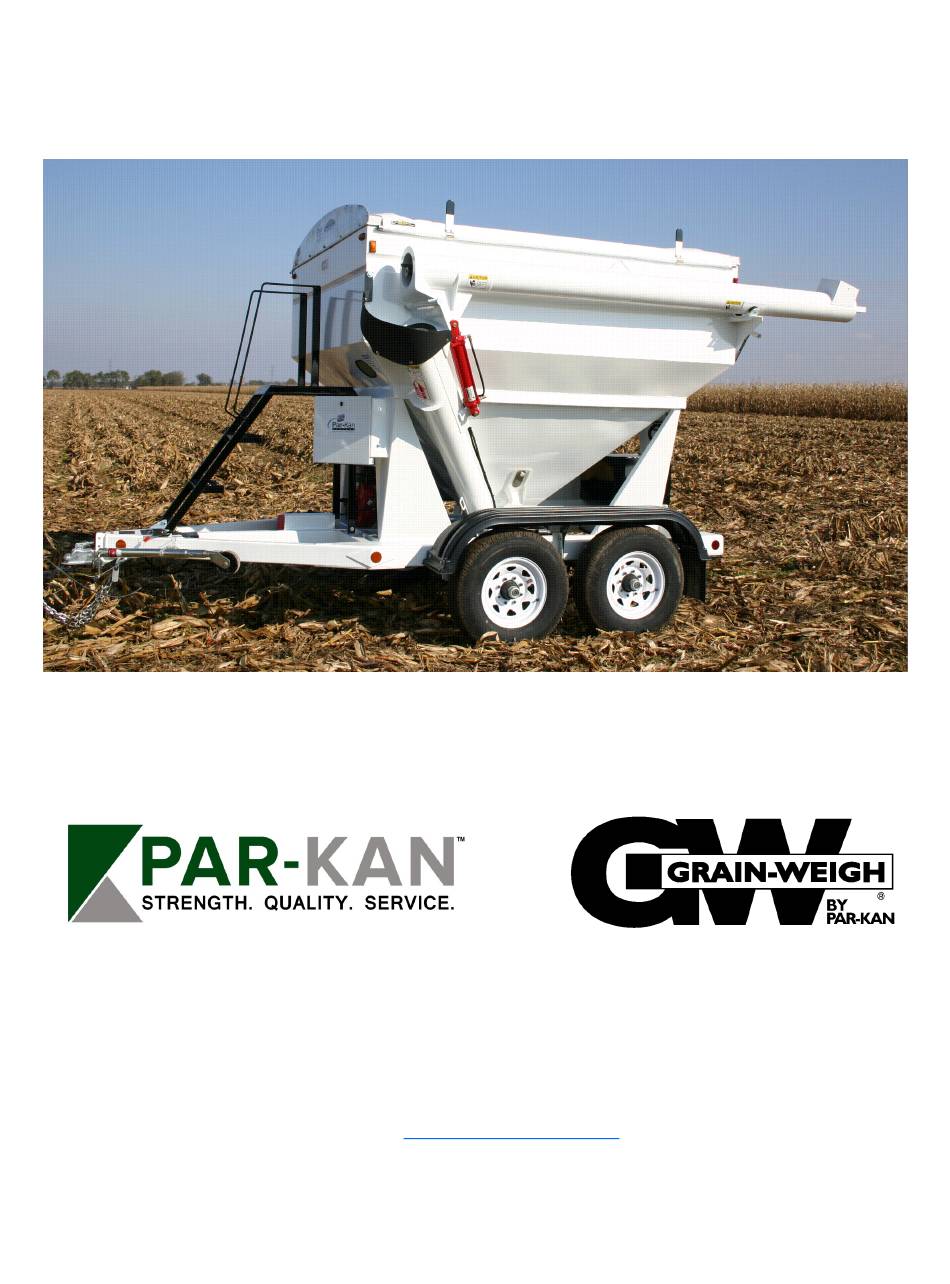

GW200A USER'S MANUAL
Read User's Manual Completely Prior to Operating, Towing, or Servicing Wagon
Par-Kan Company
2915 West 900 South
Silver Lake, IN 46982
*** Important ***
Contact: Sales Department
E-mail:
GWSales@par-kan.com
Website: www.par-kan.com
Phone: 1-800-291-5487
Phone: 260-352-2141
Fax: 260-352-0701

Advertisement

loading
Need help?

Need help?

Do you have a question about the Grain-Weigh GW200A and is the answer not in the manual?

Questions and answers

Summary of Contents for Par-Kan Grain-Weigh GW200A

  • Page 1 GW200A USER’S MANUAL *** Important *** Read User’s Manual Completely Prior to Operating, Towing, or Servicing Wagon Par-Kan Company Phone: 1-800-291-5487 2915 West 900 South Phone: 260-352-2141 Silver Lake, IN 46982 Fax: 260-352-0701 Contact: Sales Department E-mail: GWSales@par-kan.com Website: www.par-kan.com...
  • Page 2 GW200A CUSTOMER: __________________________________ SERIAL # _____________________________________ V.I.N. _________________________________________...
  • Page 3 -Briggs & Stratton® Operator/Owner Manual -Digi-Star EZ2500 Operators Manual -Shurco Owner’s Manual -Axis Products Speed Rating Note: This manual supersedes any other information supplied by Par-Kan Company before this date, and is good only for serial numbers listed in the manual.
  • Page 4 Grain-Weigh’s original invoice. Par-Kan Company will replace during the warranty period, subject to an exami- nation by an authorized representative of Par-Kan Company, any warranted part which proves defective in material and/or workmanship under normal installation, use, and service.
  • Page 5 Grain-Weigh 200A Dimensions...

  • Page 6: Reporting Safety Defects

    However, NHTSA cannot become involved in individual problems between you, your dealer, or Par-Kan. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);...
  • Page 7 Grain-Weigh 200A General Specifications & Features 1. Digi-Star Indicator Model EZ2500 – 2 lb. increment. 2. Briggs & Stratton®, 18 HP Vanguard Engine With Electric Start (Pull start backup system.) 3. 14,000 lb. Axis Tandem axle. 4. ST235//80 R16, 8-Bolt Tires 5.
  • Page 8 Grain Weigh 200A Safety Precautions 1. Observe all safety precautions listed in this manual 2. No Riders 3. Stand Clear of all moving parts while in operation. 4. Make no adjustments while cart is running. 5. Cart can be loaded without being attached but should be level while loading. 6.
  • Page 9 Grain-Weigh 200A Operating Procedures 1. Check engine oil and fuel before starting engine. 2. Run engine and hydraulic system to pre-warm before loading system. 3. Refer to the Digi-Star Operators Manual for details on the key functions for the Model EZ2500 Indicator.

  • Page 10: Seasonal Check List

    Grain-Weigh 200A Maintenance & Storage Daily Check List: -Check engine oil level (do not overfill) -Fill gas tank for daily operation. -Check for oil leaks. -Check hydraulic oil level (SAE 10W30, do not overfill.) -Fill 80% full (9.5 gallons) -Total Capacity: 12 gallons -Inspect for loose bolts.
  • Page 11 Grain-Weigh 200A Operation of Maintenance Meter Multi-Function Maintenance Meter: Hour Meter, Tachometer, and Service Alarm Hour Meter / Tachometer: These functions are fully automatic. Upon engine start the meter will show rpm's. At engine shutdown the meter displays the total accumulated running time (which cannot be reset).
  • Page 12 Grain-Weigh 200A Trouble Shooting Problem Cause Test Correction Engine will not start No fuel Visual Add fuel Bad connections Meter Clean or replace Dead Battery Meter Charge or replace Starter Meter Repair or replace Selective hydraulic components not Hydraulic Oil Visual Add oil working (Auger Screw, Unloading Door,...
  • Page 13 Grain Weigh 200A Hydraulic Trouble Shooting 1. Hydraulics will not operate. Make sure the engine is running at full power and not on one cylinder. Make sure the vent on the gas cap is open for engine to receive fuel. Check for blown fuse behind the weigh head and or see the manual override procedure.
  • Page 14 Grain-Weigh 200A Weigh Bar Replacement Remove old weigh bar First locate which weigh bar needs to be replaced Remove weigh bar wire from weigh head Place floor jack under inner frame and release pressure off weigh bar. Remove the 3/8” bolts on outer frame Remove the 7/16”...
  • Page 15 Grain-Weigh 200A Axle & Hub Assembly...
  • Page 16 Grain-Weigh 200A Axle & Hub Parts Listing Key # Part Number Description 241144 DL600 Seal 241145 Inner Bearing 241146 Inner Cone 241147 Left Hand Brake 241148 Right Hand Brake 241149 Brake Drum 241150 Outer Cone 241151 Outer Bearing 241106 “D” Washer 241107 1-14 Slotted Jam Nut 241152...
  • Page 17 Grain-Weigh 200A Power Plant Key # Part Number Description GW200A ENGINE PREP ASSY GW200A-9A070 GW150-9A070 Gas tank with fitting and hose assembled 224011 Nylon Pipe to hose adapter 220360 Gas line hose clamp 220360 Gas line hose clamp 220319 Fuel hose, ¼” I.D. x 20” length 260112 Choke Cable 260111...
  • Page 18 Part Number Description 660020 Tail light assembly kit ( Includes: taillight, grommet, and pigtail plug ) 660010 License plate light 250069 Decal, Par-Kan Company Logo 660011 License plate bracket 250029 Reflector, 3” round red 250250 Decal, Made in the U.S.A...
  • Page 19 Grain-Weigh 200A Frame & Body ( Front View )
  • Page 20 Grain Weigh 200A Frame & Body ( Front View ) Continued Key # Part Number Description 280057 Ball Coupler – 2-5/16” GW200A-6W000 Ladder Weldment 270013 Cam Lock, ( Grain-Weigh Box ) 270282 Safety Chains 280100 Tongue Jack With Swivel Wheel 361559 Sight Glass Square GW200A-1P601...
  • Page 21 Grain-Weigh 200A Auger Components Top Auger Part Number Description Key # 211079 Top Auger Spring Bolts – 3/8” x 6” 210100 Roll Pin – ¼” x 1-3/4” 270504 Top Auger Spring 280201 1” Flange Bearing GW200A-2W032 Top Auger Screw Weldment GW200A-2W001 Top Auger Tube Weldment GW200A-2S000-200...
  • Page 22 Grain-Weigh 200A Seed Tubes Key # Part Number Description 362120 SEED TUBE, TELESCOPING 5” D 3 SEC. 210075 POP RIVET, 3/16” X .626” X .750” AL/ST GW200C-9P700 SEED TUBE FLEX HOSE 220366 HOSE CLAMP, 6” S.S. 362027 SEED TUBE, ADAPTER **GW150/GW200A** GW200A-9S042 Complete Seed Tube Assy.
  • Page 23 DECAL, BE CAREFUL OVERHEAD WIRES(ARROW) INCLUDED W/ RT DECAL, ROLL TARP INFORMATION 250063 DECAL, “CAUTION” MANUAL REPLACEMENT 250100 DECAL, GRAIN WEIGH (SMALL) RED/BL ON WHT 250000 DECAL, “PAR-KAN” 6-1/4” X 4-1/2” 250250 DECAL, “MADE IN THE USA” 250101F DECAL, 3000 RPM MAXIMUM BLK LETTERING...
  • Page 24 Grain-Weigh 200A Electrical Schematic...
  • Page 25 Grain-Weigh 200A Electrical Schematic...
  • Page 26 Grain-Weigh 200A Electrical Schematic...
  • Page 27 Grain-Weigh 200A Electrical Schematic...
  • Page 28 Grain Weigh 200A Hydraulic System...
  • Page 29 Grain Weigh 200A Hydraulic System...
  • Page 30 Grain Weigh 200A Hydraulic Parts Listing Key # Part Number Description 420031 Hydraulic Adapter #6FORB x ¼” NPT 420015 Hydraulic Adapter Elbow, #6JIC x #6MPO 90 420022 Hydraulic Adapter, #12 ORB x #12JIC 440611 Hydraulic Oil Filter with Spin on Cartridge 440024 Hydraulic Adapter, #12ORB x #12JICM 90 Elbow 420024...
  • Page 31 Grain Weigh 200A Towing Safety Appendix Towing the Grain Weigh Cart is designed to be safe if some basic precautions are taken. It is your re- sponsibility to make sure these procedures are followed for the safety of yourself and others on the road. In addi- tion, due to the variety of laws you should check local and/or state requirements.
  • Page 32 Grain Weigh 200A Shurco Roll Tarp Replacement Parts...
  • Page 33 Grain Weigh 200A Shurco Roll Tarp Replacement Parts Key # Part Number Description 361544 Crank Stand-Off 7” 361521 Tarp Stop 361529 Roll Return End plug – Nylon 361512 Trim Seal 110” long 361549 Roll Return Tube 46” 361546 Stretch Rope, 124” long 361542 Crank Arm Assembly 361548...
  • Page 34 Model EZ2500 INDICATOR...
  • Page 35 Par-Kan Company Phone: 1-800-291-5487 2915 West 900 South Phone: 260-352-2141 Silver Lake, IN 46982 Fax: 260-352-0701 Contact: Sales Department E-mail: GWSales@par-kan.com Website: www.par-kan.com...
