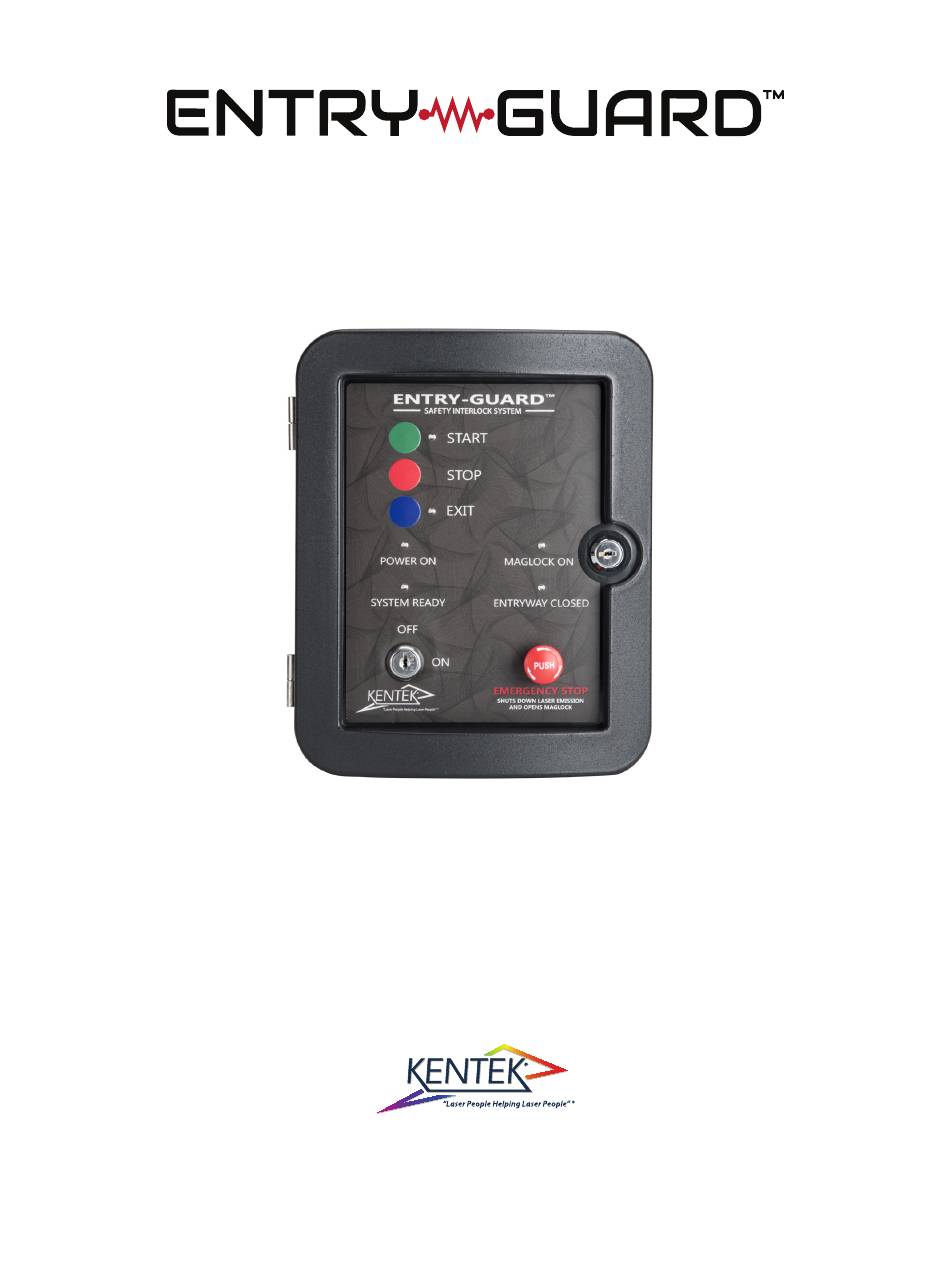

- Page 1 OPERATION MANUAL SAFETY INTERLOCK ACCESS CONTROL SYSTEM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Rev. 0420 INTRODUCTION ..................3 OVERALL CONCEPT................3 SYSTEM SPECIFICATIONS..............4-5 SYSTEM INSTALLATION ..............5-7 SYSTEM OPERATION ................8 PREVENTIVE MAINTENANCE INSPECTION ........9 ACCESSORY PARTS LIST ..............9-10 SPARE PARTS LIST ................10 WARRANTY ................... 10 10-1. -
Page 3: Introduction
This separation has become an industry standard. OVERALL CONCEPT Entry-Guard™ has the capability to integrate with components of any ACS, which may include any or all of the following components: Lasers warning signs... -
Page 4: System Specifications
SYSTEM SPECIFICATIONS Control Panel Dimensions: 6.00 D x 8.37 W x 10.50 L (inches) Control Panel Weight: 3.25 lbs. (approx.) Input Power: Transformer, Input: 100-240 VAC; Output: 15VDC, 2.4 Amp OUTPUT FEATURES: Laser Interlocks: (4) DPDT normally open / normally closed dry contacts, 12VDC can be added by applying jumpers JP10-JP13 Auxiliary Interlocks: (3) SPST normally open dry contacts... -
Page 5: System Installation
INPUT FEATURES: Safety Loop: Door 1: Normally closed contacts Door 2: Normally closed contacts Auxiliary: Normally closed contacts Emergency access: Normally closed contacts Emergency stop: Normally closed contacts • Voltage across inputs: 12VDC • Current: 61mA nominal • Inputs can be daisy chained together to offer multiple external options Remote Start: •... - Page 6 4-11. All interlocked (protected) equipment is enabled. 4-12. The ‘LASER ON’ sign is illuminated. 4-13. The ‘LASER OFF’ sign is not illuminated. 4-14. The ‘ENTER CAUTION’ or ‘EXIT NOW’sign(s) (if so equipped) should be off except during ‘EXIT NOW’ mode. 4-15.
- Page 7 Control Panel Static Checks 4-44. The key switch and push-buttons are not damaged and operate smoothly. 4-45. The external power supply (wall transformer) is connected to the PCB. 4-46. The screws to any terminal blocks that have wires connected to them are tight and the wires won’t pull out with moderate pulling force.
-
Page 8: System Operation
The ‘ENTRYWAY CLOSED’ LED on the control panel is used to give the status of all door safety interlock connections. Normally closed safety interlocks should be used on all entry ways to allow the Entry-Guard™ to monitor door status. These interlocks can be wired in series or connected directly to TB5 or TB7 located on PCB-EG001. -
Page 9: Preventive Maintenance Inspection
PREVENTIVE MAINTENANCE INSPECTION Early detection of failed components ensures the safest work environment. Listed below is a weekly safety routine recommended to verify all relays, interlocks and switches are performing as intended. K1 Relay controls main system relay K2 Relay controls all interlock outputs K3 Relay controls exit now relay K4 Relay controls magnetic locks K5 Relay controls laser interlocks TB13 and TB14... -
Page 10: Spare Parts List
**Call for updated lists WARRANTY Kentek warrants Entry-Guard™ and accessories to be free from defects caused by faulty material or poor workmanship. Liability under this warranty is limited to the obligation to repair or, at Kentek’s sole option, to replace without charge, any part found to be defective under normal use within one year from date of invoice. -
Page 11: Application Layout Options
Section 10-1. APPLICATION LAYOUT OPTIONS SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 12: Control Panel Faceplate
Section 10-2. CONTROL PANEL FACEPLATE SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 13: Printed Circuit Board Pcb-Eg001
Section 10-3. PRINTED CIRCUIT BOARD PCB-EG001 SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 14: Printed Circuit Board Pcb-Eg001 Layout
Section 10-4. PRINTED CIRCUIT BOARD PCB-EG001 LAYOUT SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 15: Printed Circuit Board Pcb-Eg-Mpi
Section 10-5. PRINTED CIRCUIT BOARD PCB-EG-MPI SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 16: Printed Circuit Board Pcb-Eg-Mpi Layout
Section 10-6. PRINTED CIRCUIT BOARD PCB-EG-MPI LAYOUT SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 17: Remote Start Wiring
Section 10-7. REMOTE START WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 18: Access Control Wiring
Section 10-8. ACCESS CONTROL WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 19: Emergency Access Wiring
Section 10-9. EMERGENCY ACCESS WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 20: Emergency Stop Wiring
Section 10-10. EMERGENCY STOP WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 21: Door Interlock Wiring
Section 10-11. DOOR INTERLOCK WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 22: Keypad Wiring
Section 10-12. KEYPAD WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 23: Magnetic Lock Wiring
Section 10-13. MAGNETIC LOCK WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 24: Single Status Sign Wiring
Section 10-14. SINGLE STATUS SIGN WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 25: Dual Status Sign Wiring
Section 10-15. DUAL STATUS SIGN WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 26: Triple Status Sign Wiring
Section 10-16. TRIPLE STATUS SIGN WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 27: Pcb Sign Wiring
Section 10-17. PCB-SIGN WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... -
Page 28: Bypass Key Switch Wiring
Section 10-18. BYPASS KEY SWITCH WIRING SAFETY INTERLOCK ACCESS CONTROL SYSTEM... - Page 29 ©Kentek Corporation. All rights reserved. ENTRY-GUARD® is a registered trademark of Kentek Corporation.
