VLB-44X Marine LED Beacon
(With Extended I/O Option)
Product Manual
Version: 1.0.2
th
Date: September 18
VLB-44X
Date 18.9.2019 Version 1.0.2  Product Manual  1 of 72
SABIK Oy · Höylänlastu 2 A · FI 06150 Porvoo · Telephone +358 -19- 560 1100 · sabik-marine.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vega VLB-44X Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sabik Marine Vega VLB-44X Series

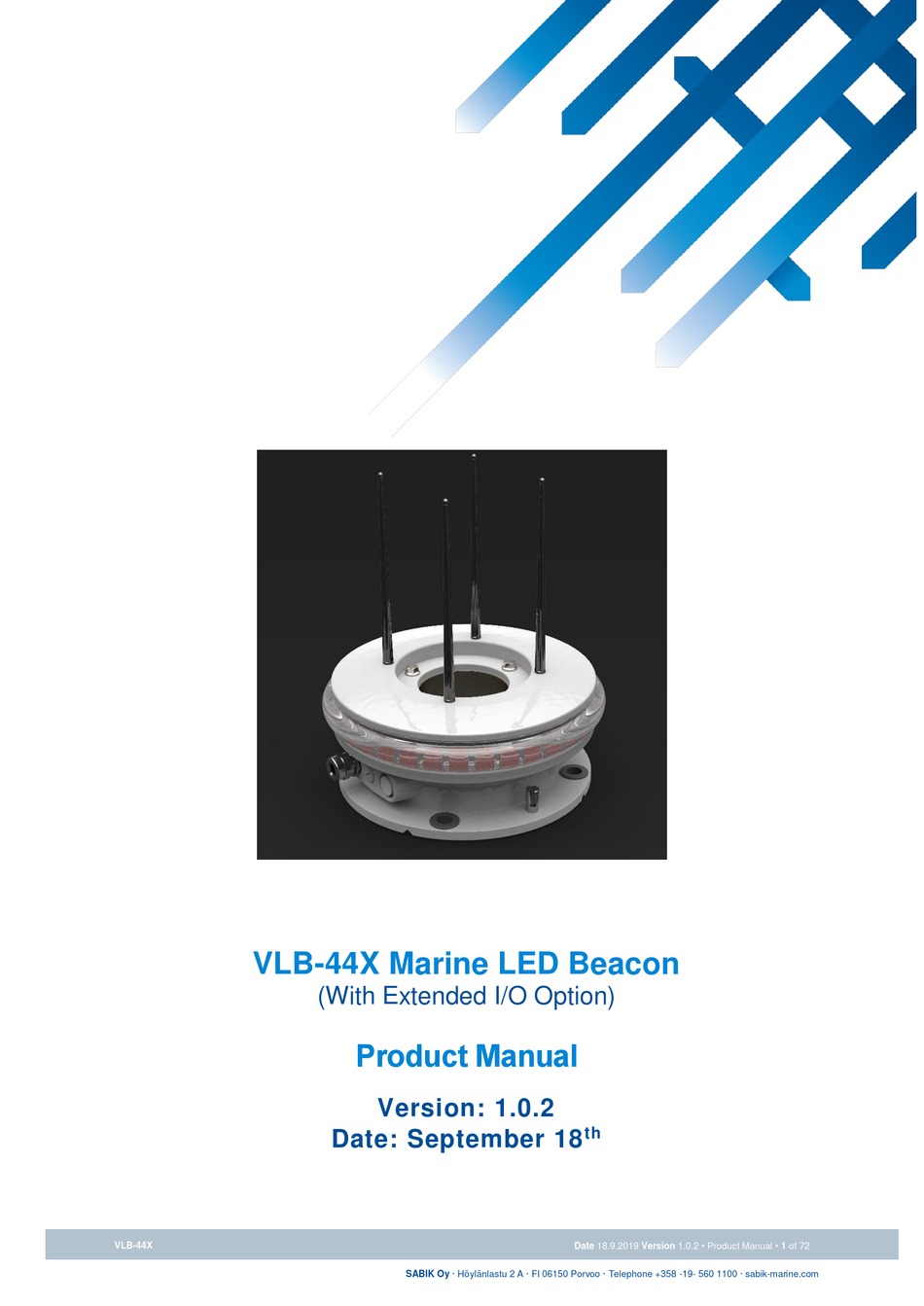

  • Page 1 VLB-44X Marine LED Beacon (With Extended I/O Option) Product Manual Version: 1.0.2 Date: September 18 VLB-44X Date 18.9.2019 Version 1.0.2  Product Manual  1 of 72 SABIK Oy · Höylänlastu 2 A · FI 06150 Porvoo · Telephone +358 -19- 560 1100 · sabik-marine.com...

  • Page 2: Table Of Contents

    Disclaimer: Every possible effort has been made to ensure the validity of this document. It represents the current view (as of the publishing date) on the functions and properties of the products mentioned in the document. SABIK OY is not responsible for possible typing errors. The pictures and drawings are for descriptive use only. The document may be updated or changed without notice.
  • Page 3 7.1..........................23 ONITORING UTPUT 7.2........................23 OMMAND AND UERY NPUT ROUTINE MAINTENANCE ........................25 8.1......................... 25 AINTENANCE CLEANING 8.1.1. Inspection check ......................... 25 USER NOTES ..............................26 APPENDIX A VLB-44X TVIR PROGRAMMING SYNTAX TABLE ............... 27 APPENDIX B VLB-44X PERFORMANCE TABLES ....................

  • Page 4: Introduction To The Vlb-44X Marine Led Beacon

    Introduction to the VLB-44X Marine LED Beacon 1.1. Overview The Vega VLB-44X LED beacon is an energy-efficient marine beacon that is available in a wide range of configurations. The number of tiers can range from 1 to 3, with each tier having a vertical divergence of 2.5, 5.0 or 10 degrees.

  • Page 5: Infra-Red Programming

     The beacon might be set to Traffic Light mode. Either apply the appropriate voltage to the On input or send the TVIR programming command to set the beacon into Normal mode, instead. 1.3. Infra-red programming The infrared receiver for programming the beacon is located on the base of the beacon. For best results when programming direct the IR remote at this part of the beacon.
  • Page 6 This allows the VLB-44X to be controlled by an external controller so it may be used, for example, to direct shipping traffic. Note – when operating in traffic light mode, the normal mode day/night switching based on the measured light level is inhibited.

  • Page 7: Getting Started

    Getting Started From knowing the flash character, colour, and range required (effective candela) i. Determine the number of tiers required and the power requirement (Appendix D) ii. Connect power to the VLB-44X and any I/O signals that are required. iii. Program the beacon for the required flash character, effective candela, and other features (Section 3 and Appendices A &...

  • Page 8: Tvir Remote02 Programming Procedures & Options

    TVIR Remote02 Programming Procedures & Options For detailed programming instructions refer to Appendix A. The programming codes for the effective intensity settings of the VLB-44X beacon are provided in the performance tables of Appendix B of this manual. During programming the VLB-44X beacon will flash each time a button is operated on the IR programmer. On completion of a program option the beacon will provide visual feedback by repeating the code of the programmed function by a series of flashes.

  • Page 9: Visual Feedback

    The valid combinations of operation, feature and value are listed in Appendix A. The valid beacon intensity settings can be found in Appendix B for the relevant beacon model. Please take the time to familiarise yourself with the tables in Appendices A & B before continuing. 3.1.3.
  • Page 10 Press the red standby button for 5 seconds The beacon will give 4 quick flashes to indicate it has entered programming mode Exit program mode The beacon will give two quick flashes followed by a Leave the programmer idle for 10 seconds short pause followed by another two quick flashes.

  • Page 11: Programming Features

    When the sequence is completed the value will be rejected and an error indicated by 3 quick flashes. The beacon will then return to programming mode and is ready for a new instruction. Exit programming mode The beacon will give two quick flashes followed by a short pause followed by another two quick Leave the programmer idle for 10 seconds flashes.

  • Page 12: Custom Flash Character

    Vega beacons are pre-programmed with 246 standard characters represented by a 3 digit code XYY. The first digit of the code represents a flash type such as 1YY for isophase characters. If a customer uses a set of flash characters which are not included in the standard set these can be included if advised at time of ordering the beacons.

  • Page 13: Effective Intensity

    The Day/Night transition can be synchronised between multiple beacons when the sync wires of the beacons are connected. This synchronization scheme overcomes the difference in the accuracy of the light sensor in each beacon or their slightly different location. The synchronization works as follows for beacons that are sync masters: ...

  • Page 14: Operation Mode

    1-7-001 <Normal sync operation with 1 continued flash cycle after loss of sync if a slave>) Hard wire synchronization is standard for the VLB-44X beacon. Programming options allow the beacon to be set as a sync-master or as a sync-slave. The start of the flash character can be delayed from 0 to 9.9 seconds.

  • Page 15: Programming Mode

    Value = 001 is normal operation mode Note - it is not possible to switch directly from Traffic Light mode to Storage mode. It is first necessary to switch to Normal mode from Traffic Light mode and then the beacon may be switched to Storage mode. It is however possible to switch from storage mode into any other mode –...

  • Page 16: Pin Code Option

     Beacon internal temperature (2);  Factory current adjustment (3);  Serial number (4);  LED type (5);  Calibration/Characterisation (6);  Aux Driver to Primary Driver Current Ratio (9). 3.2.10. PIN Code Option (Factory setting 000 <no PIN code>) If the user is concerned about unauthorized programming of the beacon then a 3-digit PIN code can be set.

  • Page 17: Installing The Vlb-44X Beacon

    Installing the VLB-44X Beacon 4.1. The Mounting Structure Any movement of the mounting structure will affect how the intended user will see the beacon. The amount of sway that can occur needs to be limited to ensure that the beacon will remain visible. This includes the sway on a fixed structure and the degree of roll on a buoy.

  • Page 18: Central Pole Mounting

    4.2.2. Central Pole Mounting The Ø88mm hole through the centre of the VLB-44X beacon provides an alternative mounting option. Secure Head Fastener Top view of fastener Aluminium tube Base Mounting Plate with Taper-Lock collar. Date 18.9.2019 Version 1.0.2  Product Manual  18 of 72 VLB-44X SABIK Oy ·...

  • Page 19: Bird Spikes

    4.3. Bird Spikes The beacon is supplied with four plastic bird spikes. To install the bird spikes simply screw them by hand into the threaded holes in the beacons lid. Screw bird spikes in firmly 4.4. Mounting the VSU-29 Pulse Sync unit The internal diameter of the centre hole allows for the fitting of the VSU-29 GPS Sync Unit and mounting ring.

  • Page 20: Power Supply & I/O Connections

    Power Supply & I/O Connections 5.1. Power Supply Requirements Supply voltage is nominally 12 VDC, with an operating range of 9.0 – 18.0 VDC. Normal operating voltage should not exceed 18.0V. Reverse polarity and internal transient voltage protection are provided. A low and high voltage threshold is programmable and the beacon will switch off if the low threshold is reached.

  • Page 21: Digital I/O Connection To Vegaais

    5.4. Digital I/O Connection to VegaAIS The following connection table provides both VLB-44X I/O and serial interface monitoring inputs to the VegaAIS. VLB-44X Data Port Cable AIS Beacon Cable Signal Colour Colour Signal Do not connect Grey Signal Ground Black & Blue Black Beacon -ve Pink...

  • Page 22: Synchronization With Other Beacons

    Synchronization with Other Beacons Note – Synchronization is disabled when in traffic light mode. 6.1. Hard-wire synchronization option The VLB-44X beacon comes with a sync wire to allow synchronizing with other beacons that are within a reasonable wiring distance. For convenience the sync wire is present in both the power and the I/O cables. When using one of the sync connections leave the other unconnected.

  • Page 23: Serial Interface

    Serial Interface The VLB-44X RS232 serial interface accepts commands and queries as well as generating monitoring data. The default state of the serial interface is active (115200 baud, 8N1) and receiving commands and queries with monitoring output deactivated. 7.1. Monitoring Output The monitoring output can be delivered in a variety of ways: ...
  • Page 24 e.g. the query <VER>?/ returns the string <VER>408/ An unrecognized command or query returns no response. Most commands only have an effect on the beacon when followed by a restart. A restart can be initiated by any of these methods: ...

  • Page 25: Routine Maintenance

    Routine Maintenance 8.1. Maintenance cleaning This LED beacon requires little to no maintenance other than the occasional cleaning with warm soapy water. Rinse off with clean water. Do not use any solvent-based cleaner. If the beacon is solar powered, panels should be inspected and cleaned occasionally to ensure maximum solar energy capture.

  • Page 26: User Notes

    User Notes Date 18.9.2019 Version 1.0.2  Product Manual  26 of 72 VLB-44X SABIK Oy · Höylänlastu 2 A · FI 06150 Porvoo · Telephone +358 -19- 560 1100 · sabik-marine.com...

  • Page 27: Appendix Avlb-44X Tvir Programming Syntax Table

    Appendix A VLB-44X TVIR Programming Syntax Table For most TVIR commands in the following table, the corresponding serial interface command or related serial commands are shown in Courier New font. All serial interface commands can accept a question mark, ‘?’ as a parameter and will return the current settings after the receipt of the trailing forward slash ‘/’.
  • Page 28 Operation Feature Value 6 = Program Mode 000 – Disable RS232, No Monitoring 004 – Enable RS232, Monitoring on Demand <MON>b/ 005 – Enable RS232, Monitoring Free Running <MFR>b/ (suitable for Vegaweb monitoring) b = 0 or 1 006 – Enable RS232, No Monitoring (default setting) 007 –Enable RS232, Monitoring, 60s Free Running <R2B>x/ 008 –...
  • Page 29 Feature Value Operation Custom flash character Up to 9 On/Off pairs. Comma Separated, 50 millisecond segments units. Numbers 002 to 255 are permitted in the On/Off pairs. 001 is a special case indicating continuation <SPC>.../ (connect the two values on either side of 001) 002 to 255: 100 milliseconds to 12.75 seconds 001 - Extend an on or off period).
  • Page 30 Operation Value Feature Version Y.Y.Y (i.e. 1.9.2 or 1.7) 0 = Software version <VER>?/ 1 – Supply voltage YY.Y Volts (i.e. 11.7 volts) Last voltage prior to entering (<BAT> monitoring only) programming mode 2 – Beacon Temperature YYY in degrees Kelvin. Subtract 273 to obtain the (<TMP>...

  • Page 31: Appendix Bvlb-44X Performance Tables

    Appendix B VLB-44X Performance Tables Using the Programming and current tables Performance tables are provided for each vertical divergence and for each colour of the VLB-44X beacon. Each table details the effective intensity settings that can be programmed and the current that the beacon will draw. Currents in bold font indicate fixed character operation (100% duty) capability.

  • Page 32: Vlb-44X-2.5 White

    Appendix B.1 VLB-44X-2.5 White White 2.5 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 14130 7870 7870 22.5 13450 7490 7490 11900 011 900 6630 6630 6630 14.5 11400...
  • Page 33  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 34: Vlb-44X-2.5 Red

    Appendix B.1 VLB-44X-2.5 Red Red 2.5 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 14130 22.5 13450 11900 14.5 11400 21.5 10400 10200 9180 9000 9000 20.5 8070 008 070...
  • Page 35  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 36: Vlb-44X-2.5 Green

    Appendix B.1 VLB-44X-2.5 Green Green 2.5 Degree Beacon Range Range Effective Nominal Current (mA) Prog (NM @ (NM @ Candela @12V, 25C Ambient code Tiers 0.74T) 0.85T) (cd) 11900 14.5 11400 21.5 10400 9180 7280 7280 20.5 8070 008 070 6400 6400 6400...
  • Page 37  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 38: Vlb-44X-2.5 Yellow

    Appendix B.1 VLB-44X-2.5 Yellow Yellow 2.5 Degree Beacon Range Range Effective Prog Nominal Current (mA) (NM @ (NM @ Candela code Tiers @12V, 25C Ambient 0.74T) 0.85T) (cd) 14.51 21.85 11400 14.5 21.8 11260 21.5 10400 9180 20.5 8070 13.5 7280 7090 7090...
  • Page 39  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 40: Vlb-44X-5 White

    Appendix B.2 VLB-44X-5 White White 5 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 21.5 10400 9180 7310 7310 20.5 8070 008 070 6420 6420 6420 13.5 7280 007 280...
  • Page 41  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 42: Vlb-44X-5 Red

    Appendix B.2 VLB-44X-5 Red Red 5 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 20.5 8070 13.5 7280 7080 10220 19.5 6200 8950 8950 5810 005 810 8390 8390 5430...
  • Page 43  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 44: Vlb-44X-5 Green

    Appendix B.2 VLB-44X-5 Green Green 5 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 7080 19.5 6200 7130 7130 5810 6680 6680 5430 005 430 6250 6250 6250 18.5...
  • Page 45  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 46: Vlb-44X-5 Yellow

    Appendix B.2 VLB-44X-5 Yellow Yellow 5 Degree Beacon Range Range Effective Prog Nominal Current (mA) (NM @ (NM @ Candela code @12V, 25C Ambient Tiers 0.74T) 0.85T) (cd) 5430 7720 7720 18.5 4750 6750 6750 12.5 4620 6570 6570 4140 004 140 5880 5880...
  • Page 47  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 48: Vlb-44X-10 White

    Appendix B.3 VLB-44X-10 White White 10 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 7080 19.5 6200 7820 7820 5810 7330 7330 5430 6850 6850 18.5 4750 004 750 5990...
  • Page 49  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 50: Vlb-44X-10 Red

    Appendix B.3 VLB-44X-10 Red Red 10 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 7080 19.5 6200 5810 5430 18.5 4750 12.5 4620 10150 4140 9090 9090 17.5 3660...
  • Page 51  Currents in bold font indicate fixed character operation (100% duty). Currents in blue, italicised font indicate 30% duty capability and cannot be programmed directly but result from Schmidt-Clausen correction.  All currents should have a 10% margin added to them and will increase with increasing ambient temperature.

  • Page 52: Vlb-44X-10G Reen

    Appendix B.3 VLB-44X-10 Green Green 10 Degree Beacon Nominal Current (mA) Range Range Effective Prog @12V, 25C Ambient (NM @ (NM @ Candela code 0.74T) 0.85T) (cd) Tiers 18.5 4750 7560 7560 12.5 4620 7360 7360 4140 6590 6590 17.5 3660 003 660 5830...

  • Page 53: Vlb-44X-10 Yellow

    Appendix B.3 VLB-44X-10 Yellow Yellow 10 Degree Beacon Range Range Effective Prog Nominal Current (mA) (NM @ (NM @ Candela code Tiers @12V, 25C Ambient 0.74T) 0.85T) (cd) 4140 17.5 3660 7430 7430 3140 003 140 6380 6380 6380 11.5 2890 002 890 5870...

  • Page 54: Appendix B.5 Sample Vertical Divergence Profiles

    Appendix B.5 Sample Vertical Divergence Profiles VLB-44X 2.5D Normalised Vertical Divergence Beam Shapes Yellow366 White466 Green263 Red153 3250 3000 2750 2500 2250 2000 1750 1500 1250 1000 Vertical Angle (Degrees) Date 18.9.2019 Version 1.0.2  Product Manual  54 of 72 VLB-44X SABIK Oy ·...

  • Page 55: Appendix Cday And Night Intensity And Range Tables

    Appendix C Day and Night Intensity and Range Tables Day Range Table Night Range Table Day-Time Range in Night-Time Range in Nautical Miles assuming no background light at Nautical Miles for 0.74T 0.74T and 0.85T assuming background light 0.74 0.85 0.74 0.85 0.74...

  • Page 56: Beacon Dimensions

    Appendix D Beacon Dimensions BEACON NUMBER FOCAL HEIGHT BEACON HEIGHT [A] OF TIERS (mm)* WEIGHT (Kg) (mm)* 110+((N-1)x40) 80+((N-1)x20) 4.5+((N-1)x2.7) * Includes mounting bush Date 18.9.2019 Version 1.0.2  Product Manual  56 of 72 VLB-44X SABIK Oy · Höylänlastu 2 A · FI 06150 Porvoo · Telephone +358 -19- 560 1100 · sabik-marine.com...

  • Page 57: Product Codes

    Appendix E Product Codes Marine LED beacon with IR programmer VLB-44X-xT-cddd Beacon colours, RED, WHT, GRN, YEL. ddd = Vertical divergence 2.5, 05, 10 degrees Number of tiers 3 or 4 M12 Bolts, nuts, washers, lock nuts (or 1/2”) Mounting studs required: 3 or 4 M12 Threaded rod, nuts, washers, locking nuts (1/2”) Mounting bolt separation 200mm PCD Date 18.9.2019 Version 1.0.2 ...

  • Page 58: Appendix Fspecifications Of Vlb-44X Beacon

    Appendix F Specifications of VLB-44X Beacon Optical Light Source High-Intensity Light-Emitting Diodes Output temperature controlled to protect LEDs Colours Available Red, White, Green and Yellow Intensity See Appendix B Effective intensity settings Up to 15 levels for both day and night operation Peak Intensity Automatic Schmidt-Clausen correction up to beacon max intensity Flash Characters...
  • Page 59 Programming Vega Infra Red programmer Design Life >10 years depending on flash character and duty cycle Weights and Dimensions Three corrosion-insulated holes, Ø14 mm, on 200 (7-7/8”) PCD Mounting holes Overall Height See Appendix D Focal plane See Appendix D Beacon diameter See Appendix D Centre Hole...

  • Page 60: Appendix Gworksheet For A Custom Character

    Appendix G Worksheet for a Custom Character Fill out the table below for the values required to program a custom character. The steps to program a custom character are as follows Example given for Fl (2) 38.5sec (0.5sec on 2sec off 16sec on 20sec off) Required Step Example...

  • Page 61: Appendix Hflash Character Table With Programming Codes

    Appendix H Flash Character Table with Programming Codes Code Description Duty Cycle FIXED CHARACTER CODE Fixed 1.00 Fixed – 0.Y sec SC Correction FOR LAB TESTING ONLY – DO NOT USE IN THE FIELD ISOPHASE CODES ISO 2s 0.50 1.00 1.00 ISO 3s 0.50...
  • Page 62 Code Description Duty Cycle Fl 3s 0.5 0.17 0.50 2.50 Fl 3s 0.6 0.20 0.60 2.40 Fl 3s 1.0 0.33 1.00 2.00 Fl 4s 0.2 0.05 0.20 3.80 Fl 4s 0.3 0.08 0.30 3.70 Fl 4s 0.4 0.10 0.40 3.60 Fl 4s 0.5 0.13 0.50...
  • Page 63 Code Description Duty Cycle Fl(2) 6s 0.5 1.5 0.17 0.50 1.50 0.50 3.50 Fl(2) 6s 0.8 0.27 0.80 1.20 0.80 3.20 Fl(2) 6s 1.0 0.33 1.00 1.00 1.00 3.00 Fl(2) 6s 3.0 0.67 3.00 1.00 1.00 1.00 Fl(2) 7s 1.0 0.29 1.00 1.00...
  • Page 64 Code Description Duty Cycle Fl(4) 20s 1.5 0.30 1.50 1.50 1.50 1.50 1.50 1.50 1.50 9.50 Fl(4) 30s 0.5 0.07 0.50 0.50 0.50 0.50 0.50 0.50 0.50 26.5 Fl(5) 20s 0.5 1.5 0.13 0.50 1.50 [x 4] 0.50 11.5 Fl(5) 20s 0.80 0.20 0.80 1.20 [x 4]...
  • Page 65 Code Description Duty Cycle Q(4) 20s 0.5 0.10 0.50 0.50 0.50 0.50 0.50 0.50 0.50 16.5 Q(9) 15s 0.3 0.18 0.30 0.70 [x 8] 0.30 6.70 Q(9) 15s 0.35 0.21 0.35 0.65 [x 8] 0.35 6.65 Q(9) 15s 0.6 0.36 0.60 0.60 [x 8] 0.60...
  • Page 66 CUSTOM & SPECIAL CODES 900… Can be inserted at factory at time of order (up to 50, memory-limited) See next page if special characters have been added. Custom flash character programmed by user Code Custom Character Duty Description Cycle SPECIAL CHARACTER CODE Fl 3s, 0.45 0.15 0.45...

  • Page 67: Appendix Itvir Remote02 Specifications & Battery Replacement

    Appendix I TVIR Remote02 Specifications & Battery Replacement Coding Scheme: RC5 code with centre frequency 36.7 kHz Programming options:  Flash Character  Individual day / night Intensity  Synchronisation  Day / Night sensitivity control  Operation mode  Battery low threshold ...
  • Page 68  Insert the battery holder into the programmer case, and press it until the latch clicks into place. Date 18.9.2019 Version 1.0.2  Product Manual  68 of 72 VLB-44X SABIK Oy · Höylänlastu 2 A · FI 06150 Porvoo · Telephone +358 -19- 560 1100 · sabik-marine.com...

  • Page 69: Appendix J Serial Interface Commands

    Appendix J Serial Interface Commands The VLB-44X beacon offers a serial interface control and monitoring capability if the data-port option is fitted. Many of these commands can be found in Appendix A as annotations to their related TVIR commands. Any command can be turned into a query by inserting a question-mark character, ‘?’ instead of the standard parameter.
  • Page 70 Command Command or Legal Parameter Acts Immediately Description (Pseudo-XML Query Name Range & Unit or Requires Tag) Restart <TRF>B Traffic Light Mode 1: Enable traffic light Restart required Enables or disables traffic light mode (and remove mode. beacon from storage mode as a side effect);...
  • Page 71 Command Command or Legal Parameter Acts Immediately Description (Pseudo-XML Query Name Range & Unit or Requires Tag) Restart <REB>1/ Value doesn’t matter Reboot command Immediate Causes a reboot from the bootloader, which has a startup delay before the beacon application is entered.
  • Page 72 Command Command or Legal Parameter Acts Immediately Description (Pseudo-XML Query Name Range & Unit or Requires Tag) Restart <AIM>B/ AIS Monitoring B = 0: disable AIS Restart required Enables/disables the specific AIS function monitoring output monitoring stream format B = 1: enable AIS comprising one-per-minute bursts monitoring of all monitoring data after a...
