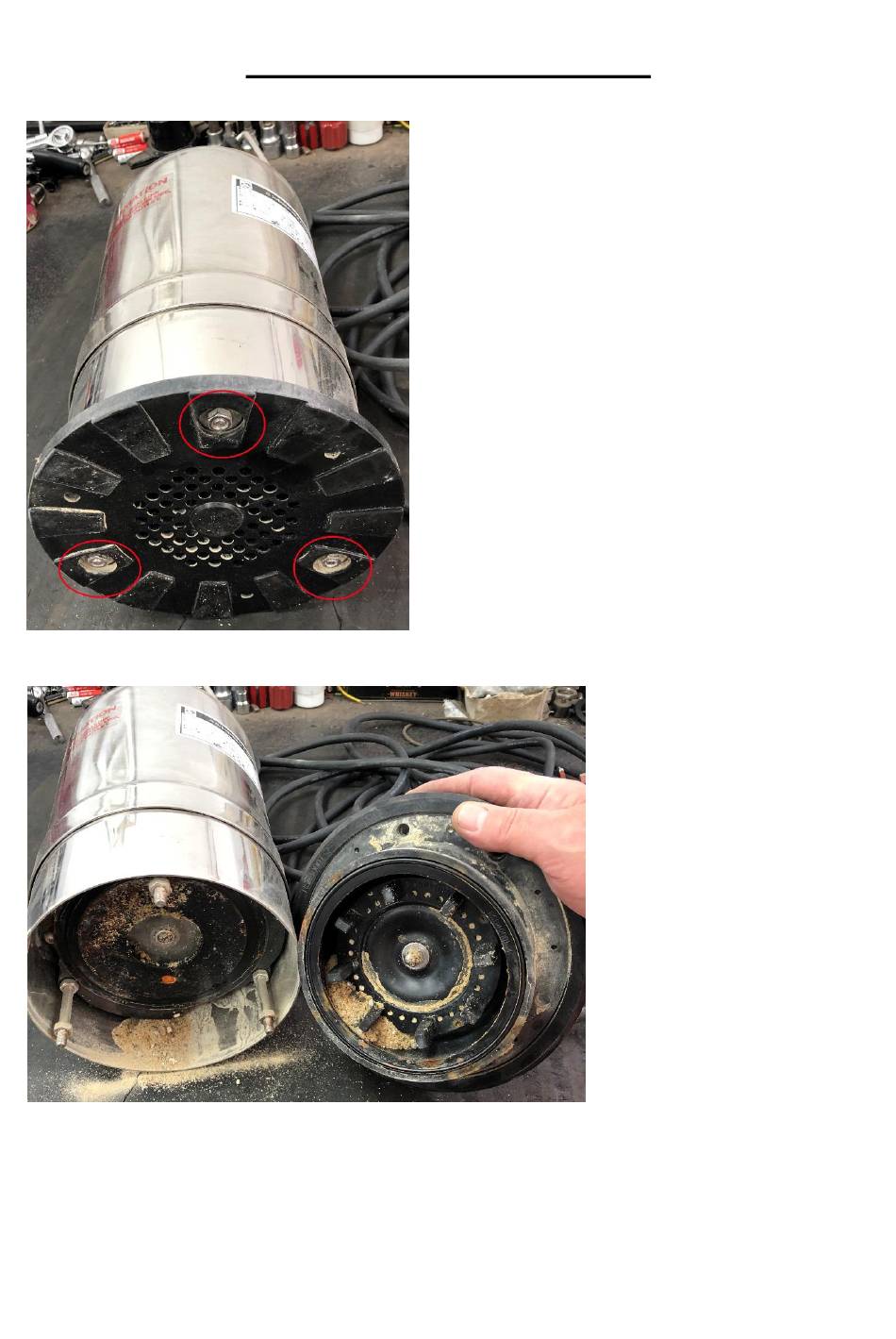

- Page 1 RSD-400 - Maintenance Guide Remove the 3 nuts and washers from the RSD base Keep these safe. Remove the rubber base to expose the non return flap valve and volute / impeller area...
- Page 2 Using a flat head screwdriver, check to see if the impeller is free to turn. If the impeller is bound or feels restricted or gritty, continue through these steps. Using a PH2 Philips screwdriver, remove the screws marked to release the volute from the pump.
- Page 4 Scrape out and clean the volute from all debris and build- The volute should be smooth and flat. Ensure that the o- ring remains in place around the outer edge of the volute...
- Page 5 Once the volute and impeller are clean and clear from the blockages and debris. Carefully reassemble the pump, taking care to ensure that the O-rings are in place on the volute and on the lower rubber cup.
