Summary of Contents for Spectrum King LowPro Veg

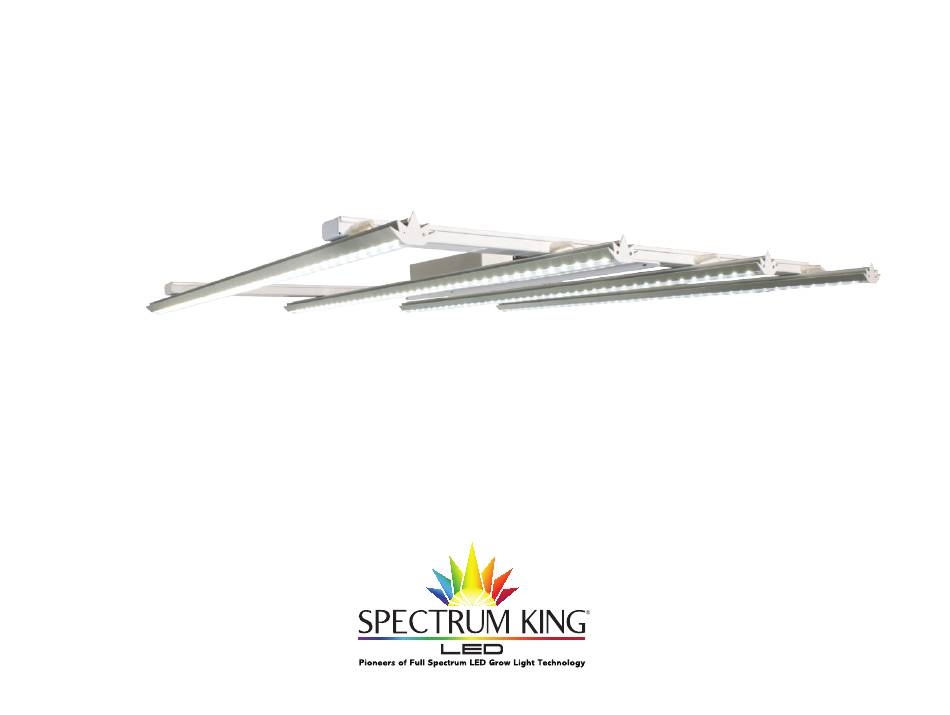

- Page 1 LowPro Veg/Flower PRODUCTS MANUAL WWW.SPECTRUMKINGLED.COM 888.654.0737 7751 ALABAMA AVE. #1, CANOGA PARK, CA 91304...
- Page 2 Low Pro Veg & Flower Parts and Tools Required for Assembly. SPECTRUMKINGLED.COM 888.654.0737 A. LED Bar B. Power Supply and Center Segment Of H Frame C. Channel Without Connectors D. Channel With Connectors E. Cahnnels covers F. Bar Screws G.Frame Screws...
- Page 3 Assembling The H Frame SPECTRUMKINGLED.COM 888.654.0737 Parts Needed B, C, D, E Take off the covers from parts C and D Take parts B, C and D and lay them flat on the floor as shown in Figure #1. Take x4 G Frame Screws and screw them in with a Philips screw driver. *Please note the screw head must face down as shown in figure #2* *Make sure the orientation of the frame is pointing outward as shown in Figure #2* Figure #2...
- Page 4 Connecting The Bars To The Frame SPECTRUMKINGLED.COM 888.654.0737 Lay down all the bars A while the LEDs on the bars face the floor Attach the H frame to the bars using x2 F screws per bar *Make sure the holes on channels are facing up* Close channels C and D using the E covers...
