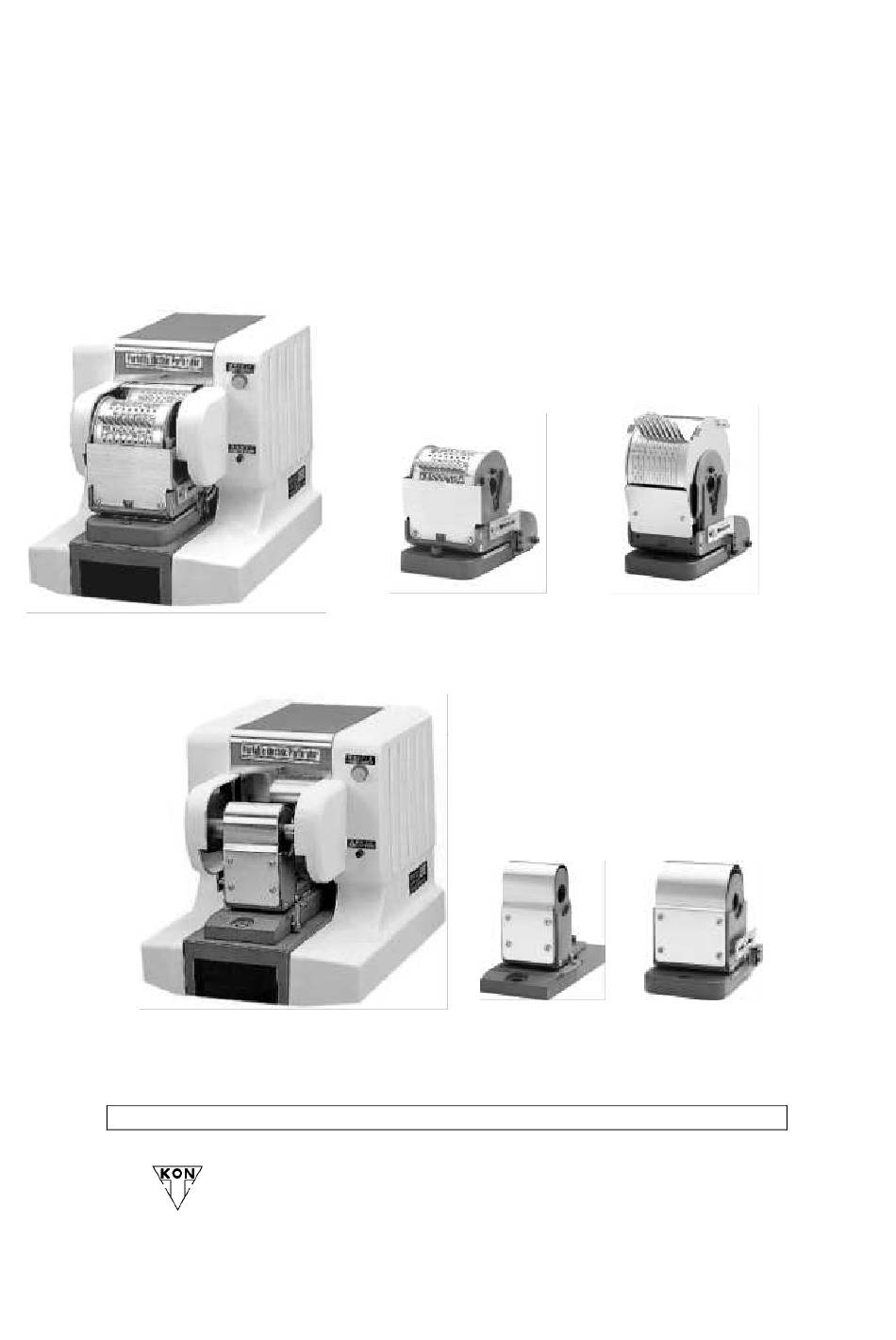

NEW KON ELECTRIC PERFORATORS
Models 10-905・10-905L・10-605・10-705
MODEL:10-905 / 10-905L
MODEL: 10-605 / 10-705
◆Specifications may change without prior notice for ongoing functional improvements.◆
e
r
a
t
i
n
e
r
a
t
i
n
N
E
W
N
E
W
g
M
a
g
M
a
Die-Block
Pin Type
905
Die-Block
605
K
O
N
K
O
N
I
I
1
n
u
a
l
n
u
a
l
Lever Type
905L
705
N
D
U
S
T
R
I
A
L
C
O
N
D
U
S
T
R
I
A
L
C
O
Final 4.18.2018
.
,
L
T
D
.
.
,
L
T
D
.
Advertisement
Table of Contents
Summary of Contents for NEW KON 10 Series
- Page 1 NEW KON ELECTRIC PERFORATORS Models 10-905・10-905L・10-605・10-705 Final 4.18.2018 Die-Block Pin Type Lever Type MODEL:10-905 / 10-905L 905L Die-Block MODEL: 10-605 / 10-705 ◆Specifications may change without prior notice for ongoing functional improvements.◆...
-
Page 2: Table Of Contents
◆ Warning ............３ ◆ Caution ............４ １. Appearance .............５ ２. Part names and accessories ........５ ３. Operating parts and descriptions ........６ ４. How to operate the die block ........７ ５. Specifications ............８ ６. Operating methods ..........９ ７. Perforating operation ........１０-１１ ８. - Page 3 Please be sure to read these precautions carefully before use. Thank you for purchasing the MODEL 10 Perforator. For safety reasons, prior to operating this machine, please read these precautions and operating manual carefully. To use this machine correctly and in a safe manner, we added notifications to the following sections to further explain important information.
-
Page 4: Caution
To ensure safe use of the machine and avoid damage to it, please be sure to observe the following precautions. Keep your fingers and hands away from the die block when perforating, otherwise injury may occur. Don’t touch moving parts when perforating, otherwise injury may occur. Don’t pull the paper out while perforating. -
Page 5: Appearance
１ ． １ ． Push button switch that turns on the power supply. ① Main Switch (The green lamp lights up.) ② Electric cord with plug Plug unit into a suitable wall outlet. ③ Operating switch Push button for manual operation if the depth switch cannot be used. ④... -
Page 6: Operating Parts And Descriptions
⑬ There are 4 screws; one each for front, back, left and right Screws for attaching the side cover ⑭ Bolt for fixing the stand. Used for setting the die block on the main body. ⑮ Micro switch connector cables Connectors for attaching micro switch. -
Page 7: How To Operate The Die Block
※ There are 4 types of die blocks….905, 905L, 605 and 705. ※ The maximum capacity is based on 64gs/㎡paper. Based upon paper thickness, number and diameter of the needles, the specifications may vary. e.g: the capacity may be less than the specified maximum. ※... -
Page 8: Specifications
Model 10 Series Electric Perforator Perforator Model Die Block Type 905L Type of Selection Letter PIN TYPE LEVER TYPE FIXED LETTER TYPE Fixed letters or marks Types of Perforations Dating or numbering・1 line PAID・Custom (including designed letters, logos, mark) 8 digits･10 digits 20 x 52 mm. -
Page 9: Operating Methods
■Please read the following precautions carefully before using. Be sure to check and confirm that the power supply and voltage is correct as outlined in specifications. When carrying the product, please disconnect from wall and carry with two hands or put on a cart. Since the perforator is very heavy, be sure to place it on a solid surface. -
Page 10: Perforating Operation
■Precautions before use ※ Please be sure to install the perforator on a solid surface. ※ Perforators are very heavy. Please take caution while moving and setting up the unit. ※ A protective sheet is attached to the top cover. Please remove it prior to operation. ■... - Page 11 ■ 1. Turn on the power. ※ The green power lamp will illuminate. 2. Insert the paper into the throat of the die block. When the paper contacts the depth micro switch, the perforation process will begin. ※ If you prefer to not use the depth switch, you can use the push button switch. 3.
-
Page 12: Depth Adjustments
■ There is a micro switch to auto activate the perforation cycle located on the depth gauge. (Upon paper insertion, the machine will activate automatically.) ■ The position of the micro switch is set at the point of maximum depth when shipped from the factory. ■... - Page 13 ■ Following is the procedure to remove and install a die block. ※ Note: Be sure to turn off the power and unplug the power plug from the outlet before attempting repairs. ■TOOLS NEEDED: Phillips screwdriver. Allen wrench (located in the accessory bag). 1.
- Page 14 Remove the 2 screws on the back of the top cover. There is a fitting pin on the front of the top cover Lift up the top cover and remove it. Remove the 4 screws from the side covers. Spread the side covers to the left and right sides. Remove the screw which is attached to die block.
-
Page 15: Troubleshooting
… … … … A1: Is the power plug inserted into the AC outlet? Please insert the power plug into the AC outlet. A2: Is the fuse blown? A. No power Please inspect and replace with the spare fuse. (the power lamp is not lit) １... - Page 16 11. Cleaning and Maintenance 1. Please check & empty the paper waste storage container prior to/during operation or on a regular schedule. 2. If you would like to clean the cover of the product, please wipe it with a clean, soft dry cloth. Lubricating points ※...
