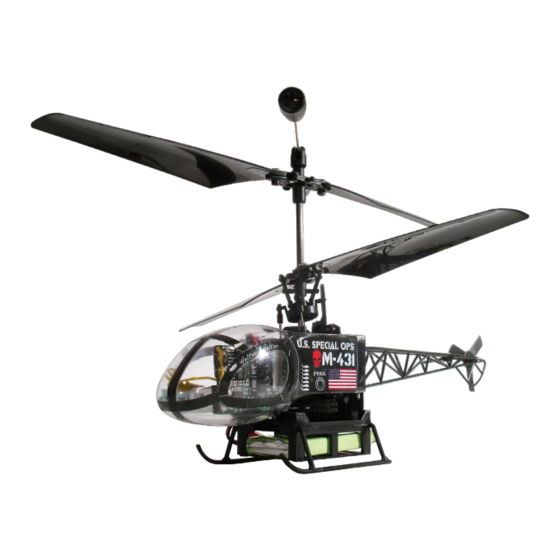

SPECIFICATIONS:
•Upper Rotor Diameter: 260 mm
•Lower Rotor Diameter: 260 mm
•Overall Length: 300 mm
•Drive: 2 high torque electric motors
•Battery: 7.4V 350mAh Li-Po battery
•Flying Weight: 80g w/battery
•Transmitter: TRIB1071
FEATURES:
Coaxial structure effectively offers
stable flight and easy operation.
The combination of prompt servos
and 2 high torque motors ensures
various flight courses.
Adjustable servo extent and the
sensitivity of built-in gyro in the 3-in-
1 receiving circuit lets you make fine
adjustments for perfect flight.
The hi-capacity 7.4V 350mAh
Lithimum Polymer battery pack on a
fully charged cycle will offer 8 to 10
minute flight.
WARNING! THIS HELICOPTER USES A LI-PO
(Lithium Polymer) BATTERY PACK AND ALL
BATTERY WARNINGS AND BATTERY CARE
INSTRUCTIONS MUST BE READ BEFORE
USE.
Read these instructions and follow them in regards to safely
charging your Li-Po battery pack. The user will take the full
responsibility for using and the results of using this battery pack.
Trinity Products Inc. your point of purchase and any dealer/
distributor of this battery will assume no responsibility for the
use or misuse of this product and any damages or injuries that
may occur.
Li-Po (Lithium-Polymer) batteries are designed to out perform
Ni-Cd and Ni-MH batteries in the areas of weight, voltage and
capacity, but greater care must be taken to insure safe use in
regards to your vehicle, person and surroundings.
The nature of Li-Po batteries is the capacity and performance
gains comes at a cost in the areas of safety and maintenance.
Used correctly your Li-Po battery pack will prove to be safe and
reliable.
The Li-Po technology requires special chargers and different
ways of charging and caring for your battery pack than you
have been accustomed to with Ni-Cd and Ni-MH. More care is
required with Li-Po especially during charging and storing.
WARNING!
Li-Po batteries are unlike Ni-Cd and Ni-MH and cannot be
charged, used, treated or stored in the same manner. The
nature of the Li-Po battery pack is that the failure to follow the
care and handling instructions provided can result in severe
permanent damage to the battery pack, its surroundings, your
person and it can even start a fire.
CHARGING:
• Your Trinity Li-PRO battery pack has both a RED power
plug and a WHITE charging plug. The RED plug is used for
powering your vehicle. The White plug is used for charging the
pack battery.
•Never leave
battery pack
unattended at
any time during
charging. You must
always charge
your battery pack
in a fireproof
location, which
could be a metal
container like a
pail, pot or bucket
of sand. Always
keep "ABC" type
lithium approved
fire extinguisher
TRI38000
Advertisement
Summary of Contents for REVOLVER TRI38000

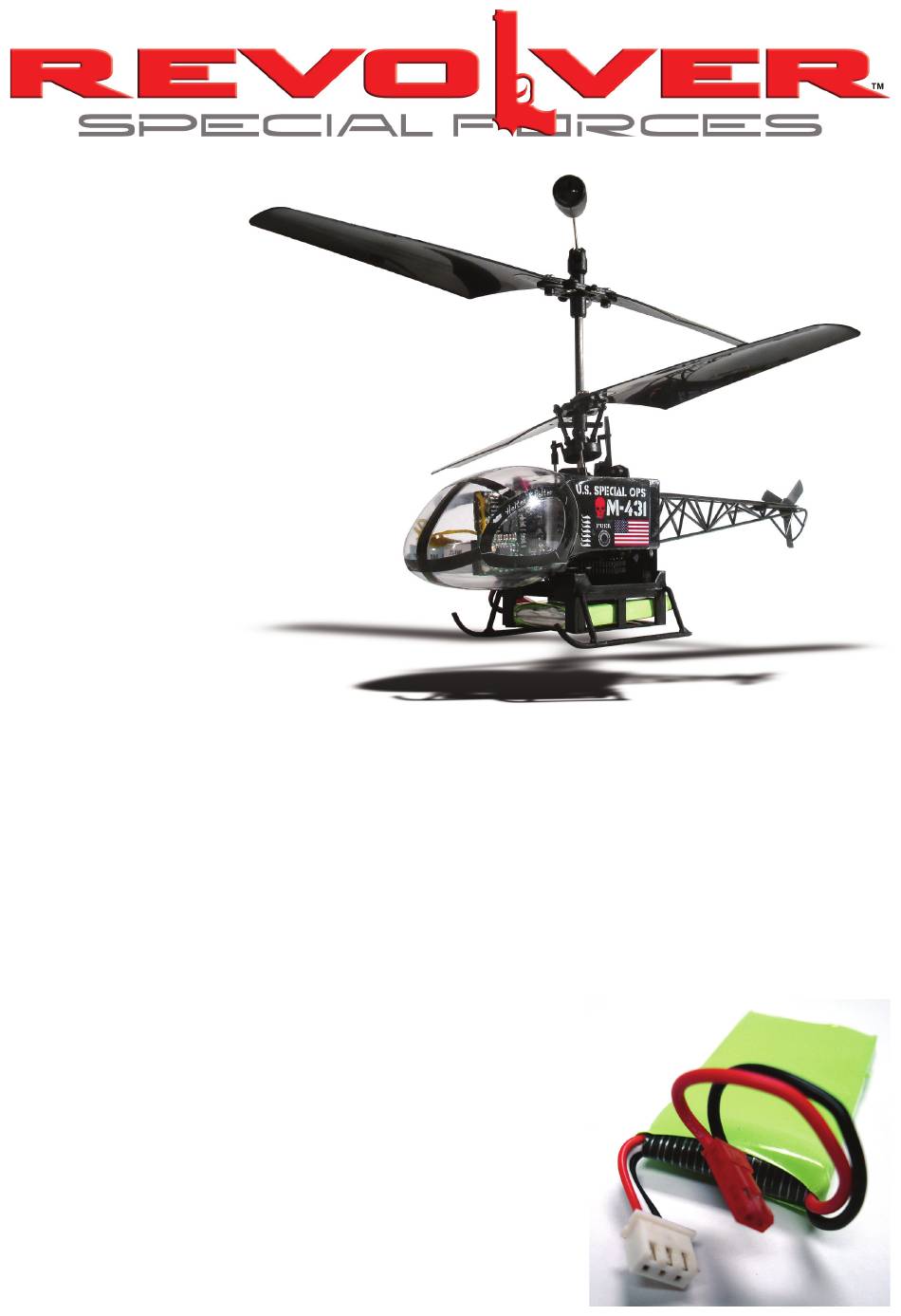

- Page 1 TRI38000 SPECIFICATIONS: •Upper Rotor Diameter: 260 mm •Lower Rotor Diameter: 260 mm •Overall Length: 300 mm •Drive: 2 high torque electric motors •Battery: 7.4V 350mAh Li-Po battery •Flying Weight: 80g w/battery •Transmitter: TRIB1071 FEATURES: Coaxial structure effectively offers stable flight and easy operation.
-
Page 2: Damaged Batteries
present. • Monitor battery pack through out entire charge cycle. Do not leave unattended. • Charge only with a Li-Po compatible charger that has a constant current/constant voltage (cc/cv) circuit, your enclosed •The small balance charger plug is used only for balance Trinity charger has these specifications. -
Page 3: First Aid
•Never charge without “ABC type” Lithium approved fire CA type glue. extinguisher readily available in case of fire. When working on your Revolver never use an electric screwdriver as you risk stripping out the plastic parts. •Keep all metallic objects away form battery pack. Shorting battery pack can cause fire and personal injury. - Page 4 damage the plastic and composite parts. Always turn on the transmitter before plugging in the flight battery and always unplug the flight battery before turning off the transmitter. Never cut the receiver antenna shorter or you could lose control of the helicopter during flight.
- Page 5 Receiver Identification (Fig.2) 1. CH1, connects to the aileron servo. 2. CH2, connects to the elevator servo. 3. MAIN Mo, connects to the driver motor. 4. TAIL Mo, connects to the tail motor. 5. Battery, connects the battery pack. 6. Sensitive, gyro sensitivity knob. Adjust the sensitivity according to the hunting effect of the helicopter while flying.
- Page 7 60 days. The sender will be notified on return shipping Your Revolver helicopter is covered only for defects at the time of manu- charges via e-mail or parcel post within 3 days. After 60 days the parts facture.
