Santa's Bags Tree Dolly Assembly Instructions

For assistance with assembly including instructional videos, parts and customer service visit
Please lay out all parts prior to assembly or installation. Read instructions prior to assembly.
PART PART PICTURE
A.
Bolt
B.
Wing Nut
C.
Base
D.
Middle
Frame
E.
Top
Frame
Step 1. Rear side wheels (Part G) attach by screwing in the bolt (Part A) with the provided Alan wrench (Part I).
Step 2. Front castors are installed by threading the wheels (Part H) onto the base (Part C). Then by using the included
wrench (Part J), rotating until tight.
Step 3 & 4. Insert the middle frame section (Part D) into the tubes on the base of the dolly (Part C). Because the
section's tubing t's tightly, be sure to keep the frame sections lined perfectly straight with each other as you assemble
them together. Having one section or the other at a slightly "o " angle may result in di culty in assembling.
Step 5. Insert the top frame section (Part E) into the tubes of the middle frame section (Part D).
Step 6. Insert the bolts into the holes on both frame sections (Parts D & E) and tighten with the provided wing
nuts (Part B).
Step 7. Slide the rear bag sleeve (Part F) over the handle of the frame (Part E).
Step 8. Velcro the top bag handle onto the top of the dolly handle.
Step 9. Velcro the base of the bag (Part F) to the base of the dolly (Part C).
ITEM SB-10120 / SB-10120RS
Tree Dolly Assembly Instructions
DO NOT RETURN TO VENDOR.
www.SantasBags.com
QUANTITY
ILLUSTRATIONS ON NEXT PAGE

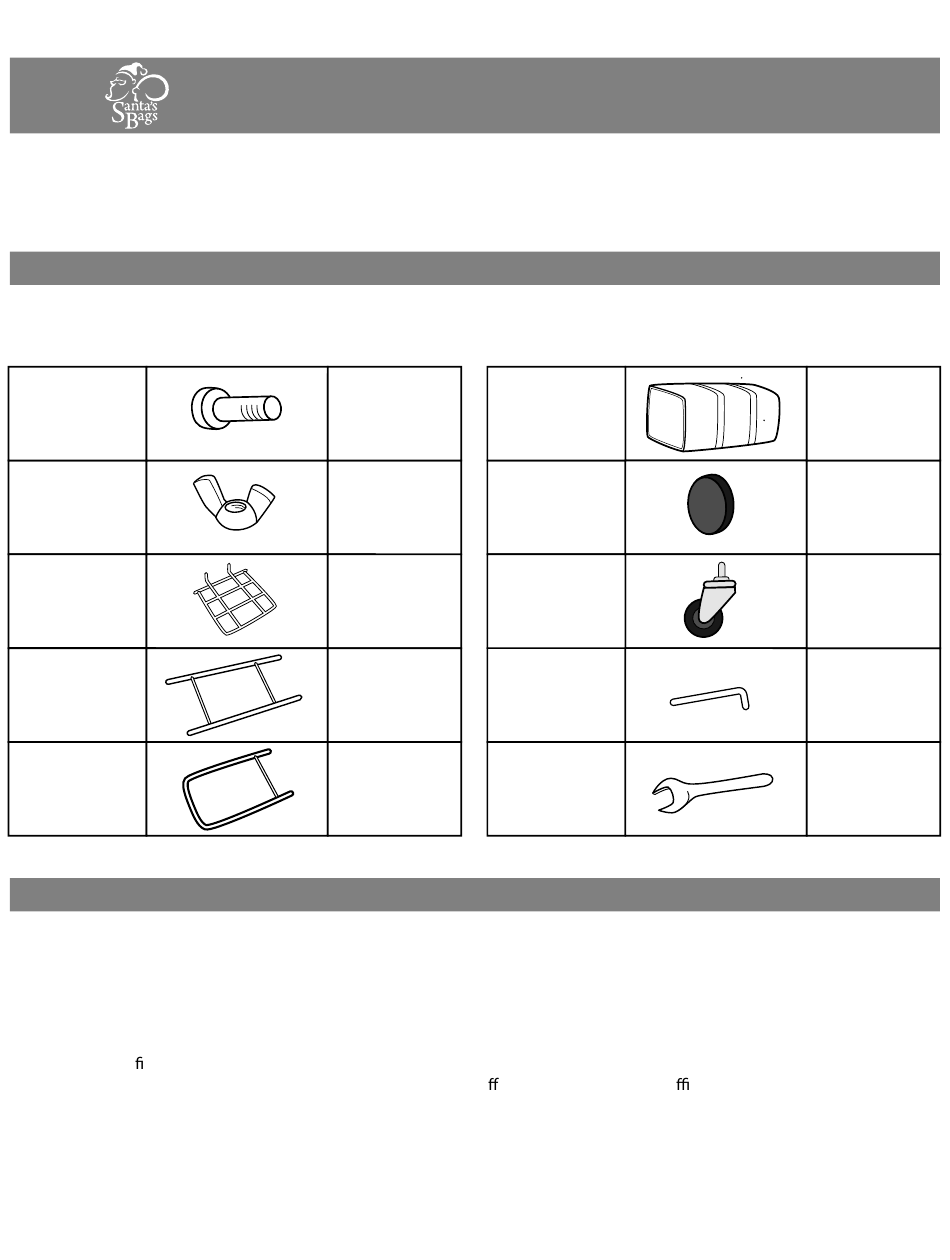

PARTS LIST
PART
F.
Storage
6
Bag
G.
Back
4
Wheels
H.
Front
1
Castors
I.
Alan
1
Wrench
J.
1
Wrench
ASSEMBLY
PART PICTURE QUANTITY
1
2
2
1
1
