Summary of Contents for Rollover FLEXI

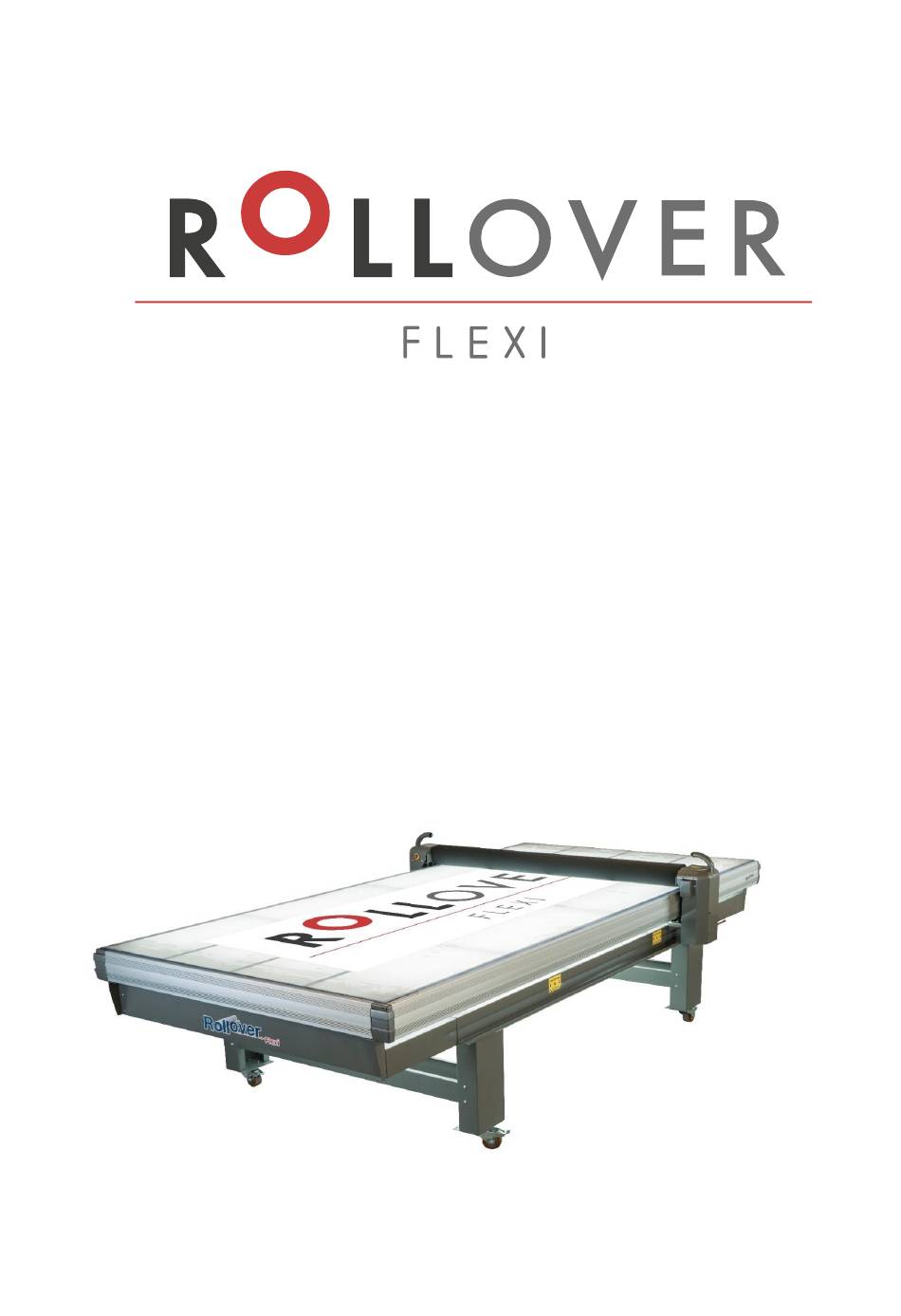

- Page 1 User Manual...
-
Page 2: Table Of Contents
Table of content General information page 3 Overview page 3 Warning symbols/safety instructions page 4-5 Installation & assembly page 5 Emergency Stop Switch page 5 Delivery inspection page 6 Transport Wire Locks page 6 Air connection page 7 Controls page 8 Dismounting of the roller gantry page 9 Lifting Instructions... -
Page 3: General Information
Rollover Flatbed Applicators are very easy to operate and maintain, but you should still take the time to read through this manual carefully. By doing this, you can exploit your Rollover in the optimal way and at the same time you will reduce the possibility for operator- or machine damages. -
Page 4: Warning Symbols/Safety Instructions
The pneumatic pressure of the roller against the table may cause crush injury. It is vital to be aware of this when operating the Rollover, especially if there is more than one person involved in the process. Personal safety equipment Specific personal safety equipment is not required for normal use of the Rollover. -
Page 5: Installation & Assembly
Lifting instructions The Rollover must be lifted with a forklift fitted with long forks. The forks must have a minimum length of 7’, and a min. lifting capacity of 1000 kg. Upon arrival in the wooden crate, the pallet itself is the reinforced lifting base, and the lifting positions are well marked. -
Page 6: Delivery Inspection
Delivery inspection The following elements are included when the machine is delivered; • Rollover Flatbed Applicator • Cutting mat • 2 spindles for holding media • 2 reversible brackets for attaching the spindles on the housings/machine ends • User Manual/instruction for dismounting/mounting of the roller gantry •... -
Page 7: Air Connection
Air connection Compressed Air is supplied through the quick-connector/gauge located at the short end of the Applicator – this is where you also will find the CE-label, switches & controls – see above picture. During operation: recommended 6 – 6,5 bar air pressure, filtered and moisture free air – max pressure 8 bar. The quick connector fixed to the gauge fits an air hose w/clamp coming from the compressor. -
Page 8: Controls
Controls: Shown in the picture from the left hand side: Main switch, resettable fuse, power inlet, light switch, reset switch (if emergency stop has been activated), emergency stop. Behind the cover: Main switch, fuse, power inlet, light switch, emergency stop, printed circuit board. -
Page 9: Dismounting Of The Roller Gantry
Flooring Rollover Graphic Applicators must be placed on a flat, moisture-free and vibration free surface. Dismounting/mounting of the roller gantry 1) Disconnect the quick-connector for the electrical wires (A) and air tubes (B) underneath the sliding arms on each side of the machine... -
Page 10: Operation And Application
Operation Operating the Rollover does not require any specific skills of the operator. The operation is performed as described in this manual. Please note: The PVC-cutting mat can be somewhat “uneven” and the surface might after some use be worn out – this can affect the quality of applications negatively. In such cases, application can be done directly on the glass bed until the mat has been replaced. -
Page 11: Maintenance And Adjustments
Please pay attention to holding the media in the center as well as straight over the roller as you go. 13. Please have a look at the videos found on www.rollover.no to have a visual impression of the applications. - Page 12 Once a month: • Your Rollover is connected to a compressor. See the maintenance manual for the compressor. It is important that condensation water is emptied as well as using a dryer filter to avoid any humidity in the pneumatic system of the machine, as this can cause corrosion and potential damage.
-
Page 13: Troubleshooting
LED’s. Repairs in general: Contact a technician via the dealer where you purchased your Rollover. Notice! The machine must only be used for its intended purpose as specified in this manual. All other use may result in damage or injury, and is at the user’s own risk and liability.
