Sulastic SA-01 TU Quick Start Manual

SULASTIC
S U S P E N S I ON S

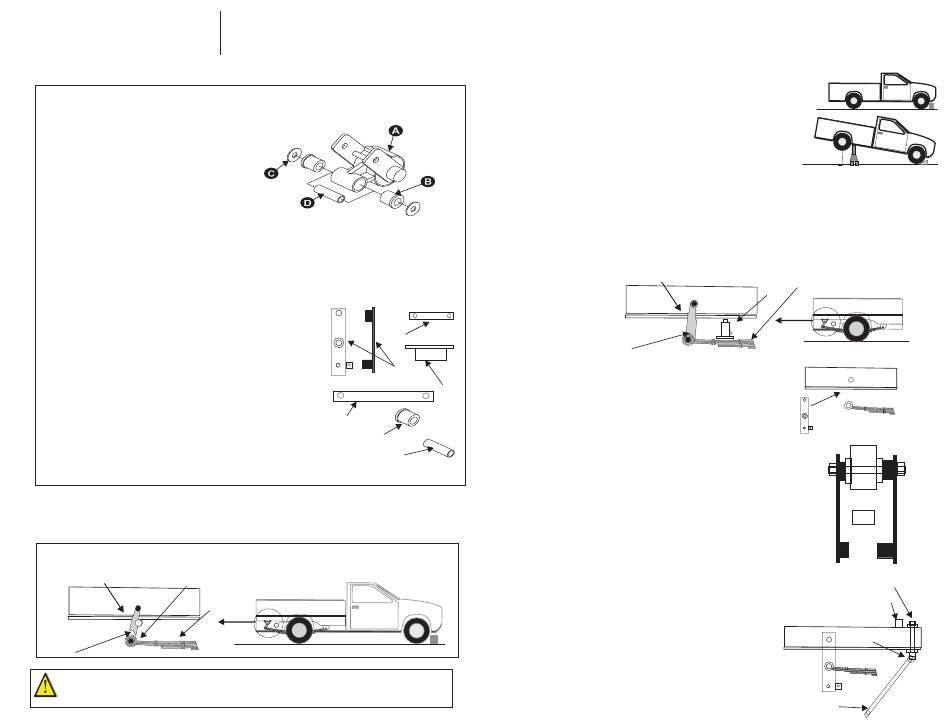

SULASTIC SA-01 TU KIT CONTAINS

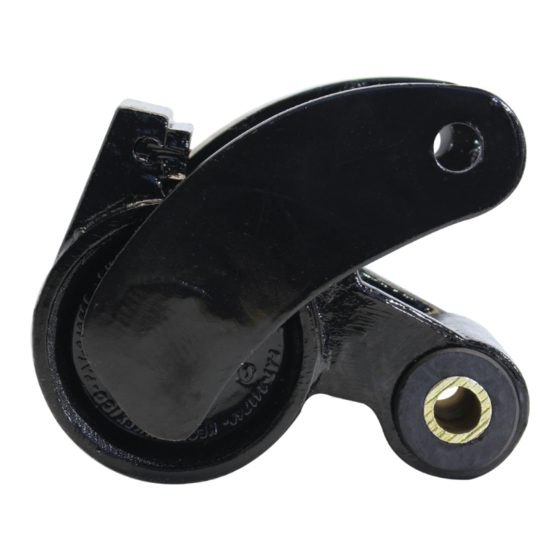

A) 2 - SULASTIC SUSPENSION
B) 4 - BUSHINGS
C) 4 - WASHERS
D) 2 - SLEEVES
E) 1 - INSTALLATION GUIDE
F) 1 - WARRANTY POLICY
BOLTS AND WASHERS.
2.-9/16" X 5 ½" BOLTS WITH NUT FLAT AND LOCK WASHERS
2.-9/16" X 4 1/2" BOLTS WITH NUT, FLAT AND LOCK WASHERS
4.-½"X 1 ½"BOLTS WITH NUT, FLAT AND LOCK WASHERS.
4.-9/16' X 8"THREADED ROD WITH 2 NUTS 2 FLATS AND 2 LOCK WASHERS EACH ONE.
12.- FLAT WASHERS ZINC COLOR. (SPACER FOR BRACKETS

SULASTIC REVERSE HANGER LIFT KIT CONTAINS.

G) 4 - MAIN BODY EXTENSION.
G1,G2 PASANGER SIDE , G3,G4 DRIVER SIDE.
H) 4 - BRAKETS
I) 2 - SUPPORT BRACKET CLAMPS DOWN SIDE.
J) 2 - SUPPORT BRACKET CLAMPS UP SIDE
K) 4 - RUBBER BUSHINGS.
L) 2 - SLEEVES .
INSTALLATION'S NECESSARY TOOLS
-Hydraulic Floor Jack - Wrenches Set - Jack Stands - Bottle Jack.

USED TERMS

SPRING SOCKET
HANGER
LEAF
SPRING
SHACKLE
Make sure the hydraulic jack and jack stands have enough capacity
to support the vehicle.
SA-01 TU WITH REVERSE
HANGER AND EXTENSION

LIFT INSTALLATION KIT

J
G
H
K
L
Before you start the installation,remove the spare tire
1.-
Chock your front wheels to avoid tires from moving forward .
Use the jack to lift the truck on the left side
2.-
until the tire is 2" above from the ground.
3.-
Position the jack stand under the truck's left side
to increase protection and safety.
Repeat step 2 & 3 on the right side
using the other jack stand.
4.-
Put the hydraulic jack between the frame and
leaf spring and slowly lift it until you are able
to remove the bolts from (lower and upper ).
Shackle
5.- Repeat step 4 on the other side
I
6.-
Remove shackles.(both sides)
start with passenger side.
7.- Install the main body extension to the frame
( G1 outside frame and G2 inside frame)
use the 9/16" Threaded rod to attach both parts
(the thread on each side should be equal.)
( Do not tight yet.)
8.-
Install the frame clamp using (J) and (I) parts
just in front the first bed support between
the main body extension and axle. Using two bolts
I/2" x 5 ½" (install the bolts upside down to where the
heads of the bolts are facing towards the ground)
(do not tight The bolts yet.)
Install the (H) brackets using the 9/16" x 5 ½"
9.-
bolt to attach the brackets to support (I) you should
install three washers on each side of the clamp support
(Between each bracket and the clamp it is very
important)
(Repeat steps 7,8 and 9 on the other side)
Hanger
Leaf spring
Bottle Jack
Frame
(H)Brackets
2"
FRAME
J Clamp
Bed support
I
