THY-470
NISSAN/ SUZUKI 4.0L
FRONTIER, PATHFINDER, XTERRA/
EQUATOR, 2005-12, 2/4WD
PARTS INCLUDED

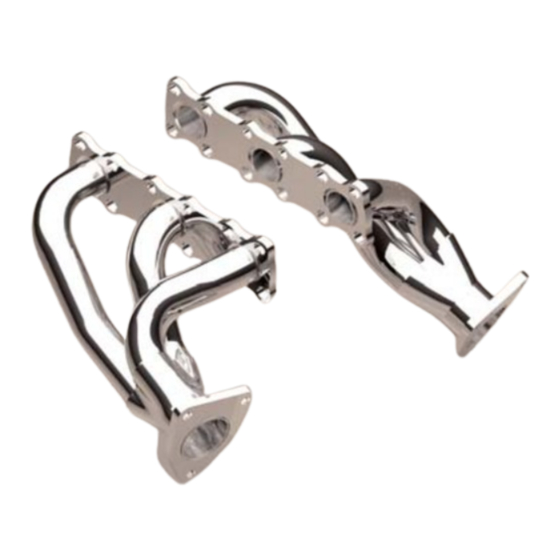

1 - Driver side Header Assembly
1 - Pass. side Header Assembly
WARRANTY NOTES
1) The utmost care is taken at Thorley Headers to maintain the highest standards of quality.
However, Thorley Headers cannot control the installation of the product. For this reason, the
Thorley Headers warranty covers only the replacement of the components - not the labor for
the installation.
2) The use of any type of "header wrapping" voids the warranty. Using any sort of wrapping
material on the headers destroys the tubing's ability to dissipate heat, causing very rapid
deterioration of the metal and the subsequent failure of the headers.
3) The chrome plating applied to all Thorley headers is a high-nickel chrome finish applied to
retard corrosion. This is a "heat" chrome to preserve the metal. This finish is not "show
chrome" intended for the sake of appearance. This high-nickel chrome turns colors and
approaches black as it cooks into the metal. The brilliance of the chrome finish is not cov-
ered under the warranty. Contamination of the surface by foreign substances may produce
other color patterns. This can be prevented by routine cleaning.
I N D U S T R I E S
HARDWARE INCLUDED
2 - M10x1.25x35mm Hex flange bolts
2 - M10X1.25 Hex flange nuts
TOOLS REQUIRED
12mm, 14mm Wrenches
12mm, 14mm Deep sockets
12mm, 14mm Regular sockets
Ratchet and extensions
Pliers
Crescent wrench
Torque wrench
Rust penetrant
High-temp sensor-safe silicon sealer
(rated at 600 degrees+)
1
Advertisement
Related Manuals for Summit Industries Doug Thorley Headers THY-470
Summary of Contents for Summit Industries Doug Thorley Headers THY-470

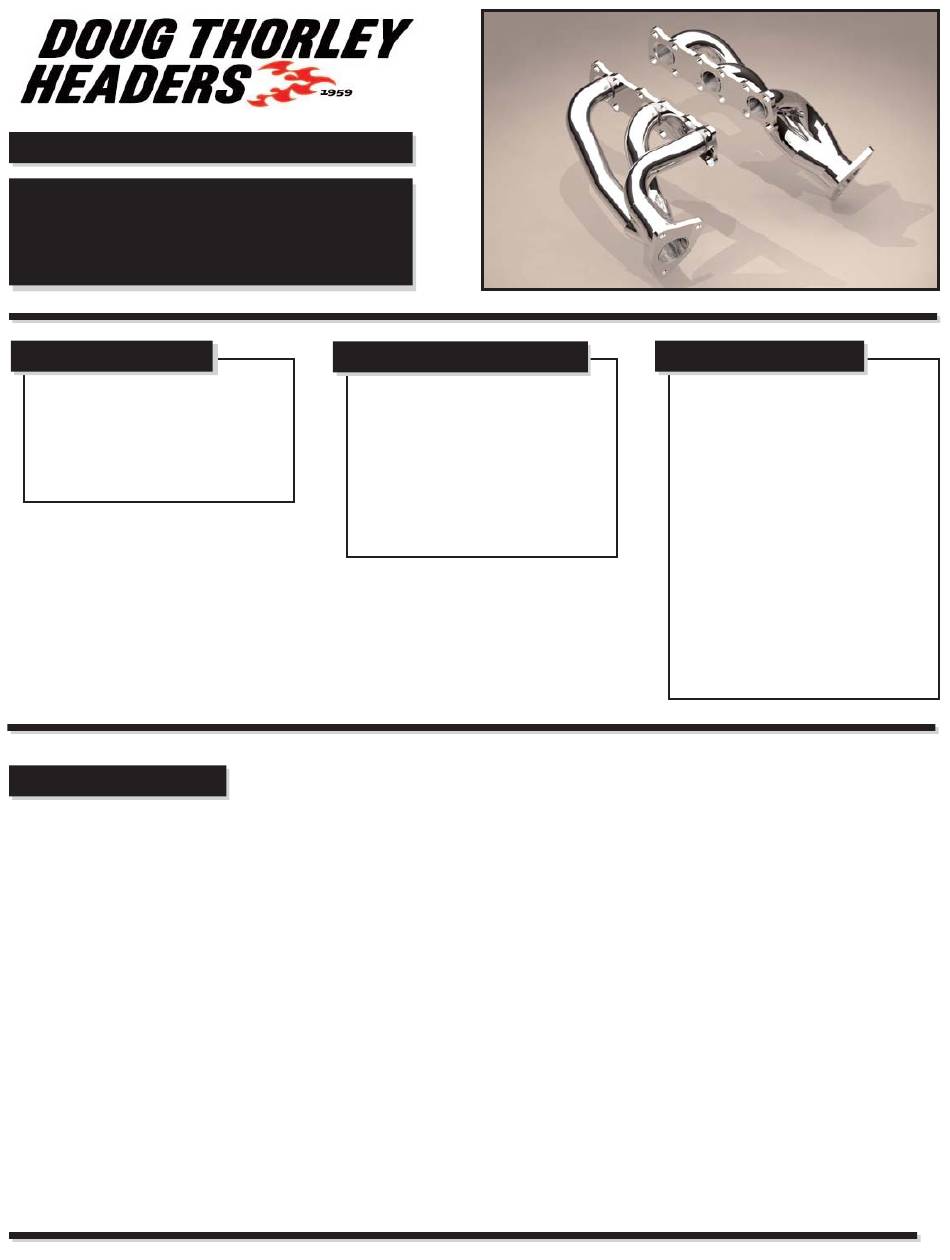

- Page 1 S U M M I T I N D U S T R I E S THY-470 NISSAN/ SUZUKI 4.0L FRONTIER, PATHFINDER, XTERRA/ EQUATOR, 2005-12, 2/4WD PARTS INCLUDED HARDWARE INCLUDED TOOLS REQUIRED 2 - M10x1.25x35mm Hex flange bolts 1 - Driver side Header Assembly 12mm, 14mm Wrenches 2 - M10X1.25 Hex flange nuts 12mm, 14mm Deep sockets...
- Page 2 THY-470 NISSAN/ SUZUKI 4.0L FRONTIER, PATHFINDER, XTERRA/ EQUATOR, 2005-12, 2/4WD WARRANTY NOTES 4) Retain all paperwork pertaining to the purchase of your Thorley product. Save your receipt! Your limited warranty is not valid without a receipt of purchase. LEGALITY NOTE The installation of headers onto any vehicle must be performed in accordance with all govern- mental regulations that might pertain to the particular vehicle receiving the headers.
- Page 3 THY-470 NISSAN/ SUZUKI 4.0L FRONTIER, PATHFINDER, XTERRA/ EQUATOR, 2005-12, 2/4WD INSTALLATION PROCEDURES WARNING! - Do not rely on bumper jacks or chassis jacks for support during header installa- tion. The subject vehicle should be raised and supported with jacking equipment and jackstands or ramps intended for undercarriage auto maintenance.
- Page 4 THY-470 NISSAN/ SUZUKI 4.0L FRONTIER, PATHFINDER, XTERRA/ EQUATOR, 2005-12, 2/4WD 7) Remove both manifolds from the bottom of the vehicle. 8) While the passenger side is still jacked up, install the new headers along with the factory gaskets from under the vehicle. Snug the nuts down but do not tighten fully at this time. 9) Lower the engine back down until satisfied with the engine alignment.
