Multi-Channel Player
Reality Sys

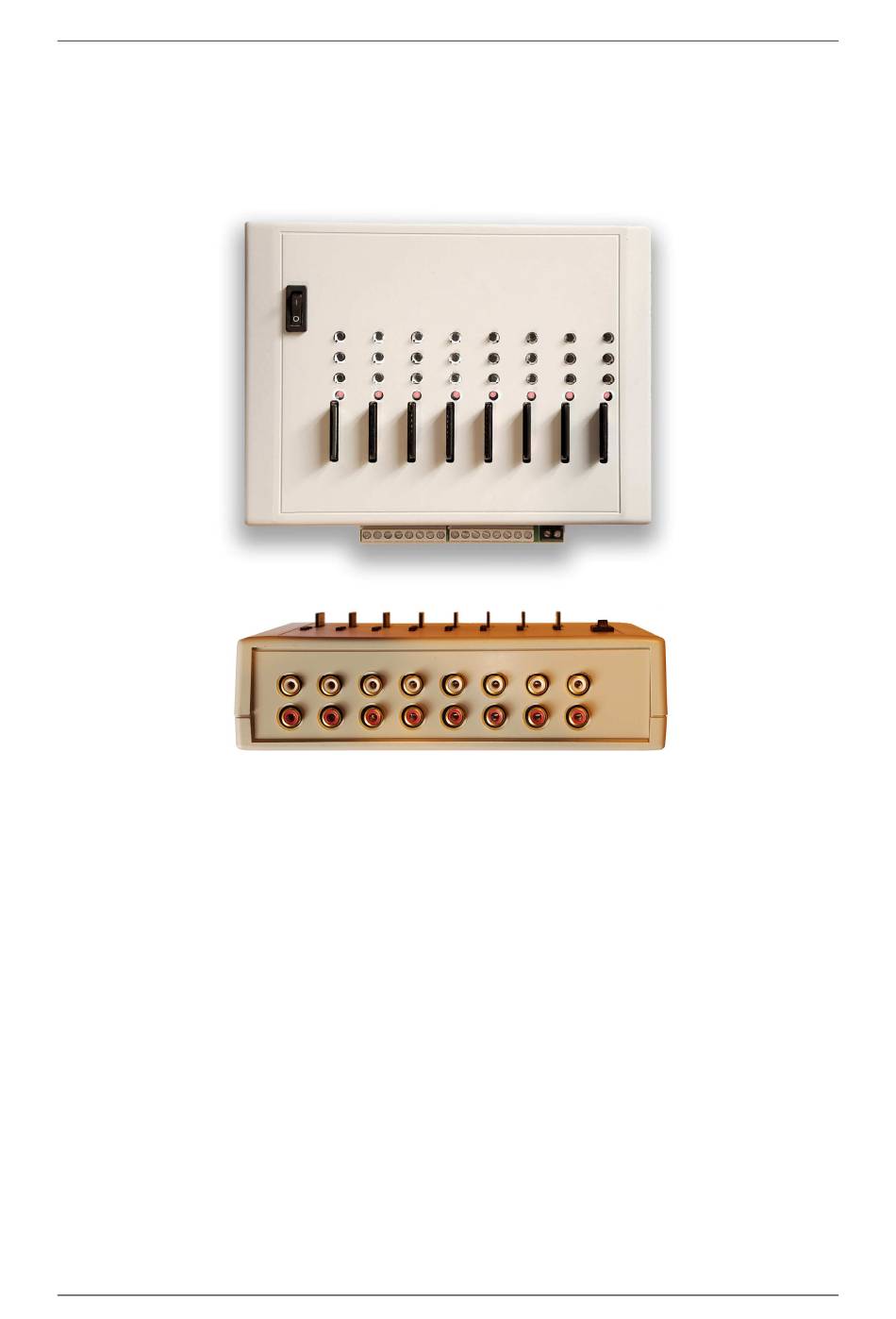

Description
1
DC 8-9V. PLUG (+ in the middle).
2
TRIGGERS 8 X 2 ways, common and return
3
8 X 2 Cinch audio line out (unmixed version, mixed version is 1 x 2 Cinch).
4
SD/MMC cards. Sticker faces right.
5
Switches. Volume, test, configuration.
6
Status Leds.
7
ON/OFF switch.
.
REALITY SYS
INSTALLATION GUIDE
7
5
6
4
1
2
Multi-Channel Player V1.1
Multichannel mp3 Player
3
Installation 1
Advertisement
Table of Contents
Summary of Contents for Reality Sys Multichannel Mixer Player
- Page 1 INSTALLATION GUIDE Multi-Channel Player Reality Sys Multichannel mp3 Player Description DC 8-9V. PLUG (+ in the middle). TRIGGERS 8 X 2 ways, common and return 8 X 2 Cinch audio line out (unmixed version, mixed version is 1 x 2 Cinch).
- Page 2 The leds of the 8 channels must go on then off. After ten seconds, if an indicator remains lit or flickers, that indicates that the corresponding card is not correctly installed or is not recognized. REALITY SYS Multi-Channel Player V1.1 Installation 2...
- Page 3 If there are multiple tracks on card, the channel can be configured to play only the first track, the next track at each new trigger, or, a random track with each trigger. Triggers switch can be normally open (NO) or normally closed (NC) REALITY SYS Multi-Channel Player V1.1 Installation 3...
- Page 4 To proceed to the choice of the operating mode of a channel, do in the following way. You have to proceed channel by channel. Each channel have 3 buttons, numbered 1, 2 & 3 REALITY SYS Multi-Channel Player V1.1 Installation 4...
- Page 5 -Continuous, all the tracks on the card are played after each other, the player never stops. -Loop and event, the first track is repeated forever, when a trigger occurs, an alternate track is played, when this one is finished, the player restart looping the first track. REALITY SYS Multi-Channel Player V1.1 Installation 5...
- Page 6 PRESS A SWITCH AGAIN TO CHOSE BETWEEN N.O., N.C. or 15 coded inputs TRIGGER NORMALY OPEN, must be closed to start TRIGGER NORMALY CLOSED, must be open to start To apply different setups, you must power down and restart the process from the beginning. REALITY SYS Multi-Channel Player V1.1 Installation 6...
- Page 7 Are there mp3 files on the card? (See 1, preparation of the memory card) After a trigger contact, LED is flashing slowly but no sound. Check that Volume is not set to minimum. Check speakers and their connections. REALITY SYS Multi-Channel Player V1.1 Installation 7...
- Page 8 « CD » quality 32MB 90 min 40 min 64MB 80 min 128MB 160 min 256MB 16 h 12 h 5h 30 min 512MB 32 h 24 h 11 h 64 h 48 h 22 h REALITY SYS Multi-Channel Player V1.1 Installation 8...
