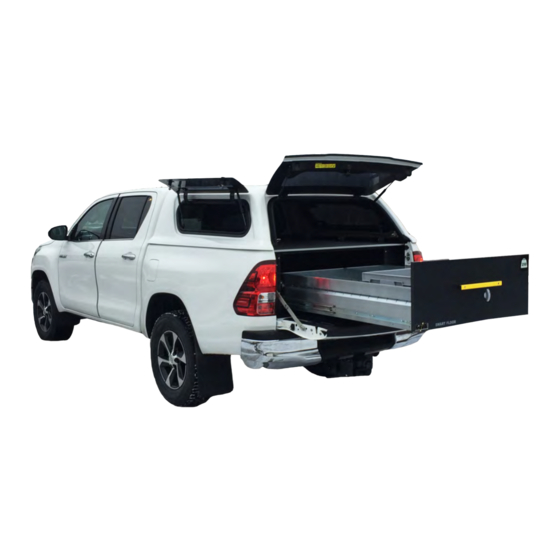

- Page 1 SMARTFLOOR Hilux D-Cab & X-Cab Installation Manual Manual nr 15013374 Rev0 Loyds Industri AS 2017-03-27...
-
Page 2: Revision Record
Revision Record Rev nr Date Page Picture Update Deleted steps Recommended torque for screws: 4,2mm Selfdrilling: 3,6 NM 6mm: 6 NM 8mm: 10 NM 10mm: 42 NM Tools CLICK 10-13 mm Torx Bits 10-13 mm TX 20 TX 25 TX 30... - Page 3 15012650 Kit Complete Hilux D-cab Item Quantity Part Number Description 15010859 RD Drawer 1000 1200 Main Assy 15012649 Steelbracket Set Hilux D-cab 15012645 Floor Set Hilux D-cab 15012640 Kit Complete Hilux X-cab Item Quantity Part Number Description 15010859 RD Drawer 1000 1200 Main Assy 15012647 Steelbracket Set Hilux X-cab 15012639...
- Page 4 15012645 Floor Set Hilux D-cab 15012645 Floor Set Hilux D-cab Item Quantity Part Number Description 15012644 Floor Right Hilux D-cab 15012643 Floor Left Hilux D-cab 15012638 U-profile 12mm L=1329 15012639 Floor Set Hilux D-cab 15012639 Floor Set Hilux D-cab Item Quantity Part Number Description...
- Page 5 15012649 Steelbracket Set Hilux D-cab Item Quantity Part Number Description 15012626 Bracket Rear Left Hilux ASSY 15012627 Bracket Rear Right Hilux ASSY 15012635 Bracket Latch Middle Hilux ASSY 15012631 Bracket Front w Latch Hilux ASSY 15012633 Fix Bracket Side Front Hilux X-cab ASSY 15012677 Bracket Right Between Drawer &...
- Page 6 15010236 Handle Assy 15010236 Handle Assy Item Quantity Part Number Description 15009441 Handle Tube 25x15x286 15009442 Spacer Ø8,3x18x30 Nylon Black 15009443 Spacer Ø8,1x13x6mm Galv 15009444 Screw M8x50 Cylinderh Hex 8 NMU Mutter M8 Nyloc DIN985 8,4x17x2 M8 Washer, DIN 125 15009438 End Plug Tube 25x15 Inside...
-
Page 7: Fitting Kit
Fitting Kit 15003551 15009568 Screw 4,8x32 Selfdrill 15005497 M6x16 TX30 pan (DIN 7985) Counters Torx Elz Latch Cup Black Ø90 Ø12x15 1000Kp 15005884 8x40 15007019 D-profile Rubber 14x12 3440151 Washer Latchcup for Ø8 M8x40mm Bolt, DIN 933, sort 6x16 6k 8x20 6K 8,4x17x2 M6 Bolt, DIN 933... - Page 8 L&R L&R L&R L&R L&R D-Cab B6/B7/ X-Cab...
- Page 9 D-Cab X-Cab see page 6, art.no 15010236 L&R L&R L&R L&R B1 / B2...
- Page 10 L&R C1 / C4 C2 / C5 L&R L&R L&R...
- Page 11 D-Cab X-Cab...
