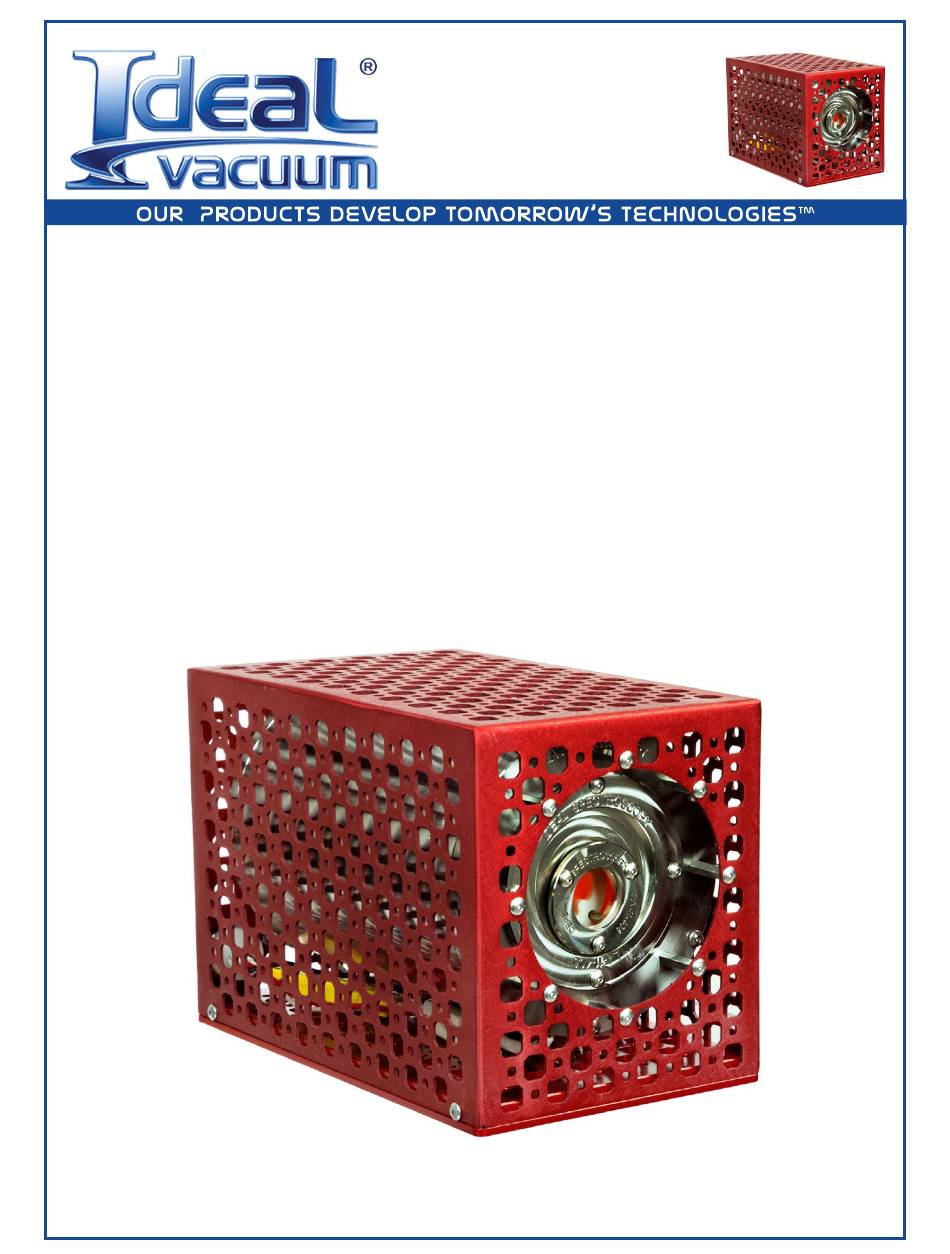

- Page 1 Habanero Spectroscopy ™ Reference Cell Furnace (P1012726) USER MANUAL HRCF-08122022- V 1.1...
-
Page 2: Warranty
Ideal Vacuum warrants to the original purchaser, this product to be free from defects in workmanship and materials for a period of 90 days from the original delivery date. The liability of Ideal Vacuum, under this warranty, is limited to servicing, adjusting, repairing or replacing any unit or component part which, at Ideal Vacuum’s sole discretion, is determined to have failed during normal, intended... -
Page 3: Table Of Contents
4. Window Replacement ......................14 Available Replacement Windows ...................14 Window Replacement Procedure ..................15 5. Furnace Control ........................16 With IVP PID Heater Control ..................16 With Variable Transformer .....................17 Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com HRCF-08122022 - V 1.1... - Page 4 LIST OF TABLES Table 1 - Furnace specifications ....................7 Table 2 - Specifications of available reference cells ..............8 Table 3 - Available replacement windows ................14 Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com HRCF-08122022 - V 1.1...
-
Page 5: Safety
SAFETY IMPORTANT SAFETY INFORMATION Thank you for purchasing this equipment from Ideal Vacuum Products. We want you to operate it safely. h Read this manual and all associated equipment manuals before installing or operating this equipment. Failure to follow the warnings and instructions may result in serious injury or equipment damage. -
Page 6: Overview
With its wide operating range from maximum to ambient, the Habanero can be used with all of Ideal Vacuum’s sealed wavelength reference cells. Note that care must be taken not to exceed the damage threshold temperature of alkali and organic reference cells. -
Page 7: Physical Specifications
Minimum Side Clearance 76 mm (3 in.) Recommended Underneath Clearance 76 mm (3 in.) Weight 5.33 kg. (11.75 lb.) Table 1 - Furnace specifications Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com HRCF-08122022 - V 1.1... -
Page 8: Available Wavelength Reference Cells
25 mm x 100 mm Tellurium P1010959 Iodine 20-70°C 500-910 nm 20 mm x 100 mm Table 2 - Specifications of available reference cells Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com HRCF-08122022 - V 1.1... -
Page 9: Basic Installation
3” above the surface to improve air flow. The base of the Habanero has eight 8-32 tapped holes for mounting legs or posts. Figure 1 - Tapped mounting holes in base Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com... -
Page 10: Figure 2 - Optical Post Legs For Benchtop Placement
Other optical table accessories are available, including optical posts and holders in varied lengths, optic mounts, and breadboards. Figure 3 - Optical table furnace mounting kit (P1012736) Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com HRCF-08122022 - V 1.1... -
Page 11: Reference Cell Installation
Figure 4 - Remove four end cap screws (LA-11-405) 2. Grasp the window retaining ring and carefully pull the cell holder assembly out of the furnace. Figure 5 - Grasp and pull on window retaining ring Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com... -
Page 12: Figure 6 - Pull Out From End Cap
Seat the cell into the holder. Figure 8 - Seat the reference cell into the ceramic holder Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com... -
Page 13: Figure 9 - Slide The Ceramic Holder Back Onto The Mounting Rods
Figure 11- Insert the cell holder assembly into the furnace 9. Secure the assembly to the furnace with the four 6-32 x 3/8” screws. Use a 5/64” hex wrench. Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com... -
Page 14: Window Replacement
600°C (Humid) P1012278 130-10000 nm 5.4% @ 5000 nm Fluoride 1000°C (Humid) * Included standard with furnace. Table 3 - Available replacement windows Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com HRCF-08122022 - V 1.1... -
Page 15: Window Replacement Procedure
2. Carefully remove the window. Do not let it fall into the furnace case. Figure 13 - Carefully remove and replace window 3. Install the replacement window in reverse order. Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com... -
Page 16: Furnace Control
(P1012728) to connect the furnace power plug to the PID heater connector. 10. Plug the furnace’s thermocouple into the controller (Figure 16, next page). Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com HRCF-08122022 - V 1.1... -
Page 17: Figure 16 - Initial Furnace Current And Target Temperatures
18. Similarly, if r-S is set to STOP, press the ROTATE button. Press the UP ARROW to change to RUN. Press the SET Button to save the selection and go back to the temperature display. Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com... -
Page 18: With Variable Transformer
Type K thermocouple mini connector. Do not run full voltage. The furnace will be damaged. Instead, increase the transformer’s voltage slowly from zero to achieve the desired temperature. Copyright © 2022, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com... - Page 19 Ideal Vacuum Products, LLC. 5910 Midway Park Blvd NE Albuquerque, NM 87109 Phone: (505) 872-0037 Fax: (505) 872-9001 Web: idealvac.com...
