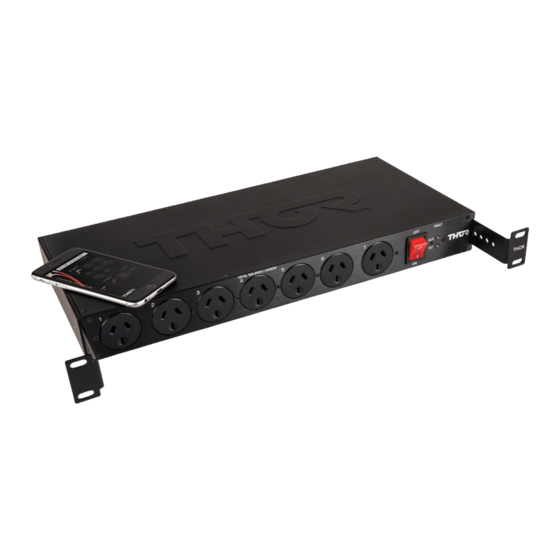

- Page 1 SMART RACKGUARD iQ RF11iQP 8 X REMOTE CONTROLLED DUAL CIRCUIT PROTECTION AND FILTRATION RF11iQP MODEL: USER MANUAL thortechnologies.com.au...
- Page 2 RF11iQP Warranty & User Manual Thor Technologies Pty Ltd reserves the right to alter or change the specifications and/or product as and when deemed necessary to keep in line with the Company policy of ongoing improvement in research, development and features of the product range.
- Page 3 The RF11iQ has the added feature of OTA Firmware upgrades through the Configuration Screen by using a downloadable file from Thor Technologies (*.Bin) reducing the need to return the unit to Thor Technologies for upgrades. See ‘Firmware’ in this manual.
- Page 4 3. INSTRUCTION Procedures Please note whilst effort has been made to simplify the setup, some of these procedures have been produced assuming an experienced IT person is carrying out the configuration. Knowledge of networking protocols would assist greatly with understanding the configuration. 3.1 IP BASED MONITORING It’s highly recommended to connect the RF11iQP to a network with a DHCP server (generally your internet router).
-
Page 5: Enable Dhcp
3.2 CONFIGURATION Please select “Configure” button on the bottom of the page to access the network settings. This will allow you to change the default IP address, User name and password and email configuration. Changing these settings is strongly recommended to maintain security protocols. 3.2.1 Enable DHCP When enabled, the device uses Dynamic Host Configuration Protocol to determine network settings. - Page 6 3.2.2 Delays After Outlet 1 On power-up, this allows for a delay between the first outlet and the rest, to allow (for example) the router or DHCP server to boot ready to serve the other devices when they in turn are powered up. Outlet 1 Auto-restart Setting the Outlet 1 Auto Restart Delay allows for Outlet 1 to automatically restart after the preset delay period (sec).
-
Page 7: Network Access
3.2.7 Firmware Choose File Click on this button to locate a Thor RF11iQP *.BIN (binary) file to upload into the firmware. Upload Once a bin file has been chosen, click upload to program the new firmware into the unit. Do not disconnect network or power until the operation is complete. -
Page 8: Factory Reset
3.2.8 Remote Access and Security Remote access : RF11iQP is listening on ports 80 and 443 (http and https, respectively). Port forwarding on your firewall/router would point to 80. Security It’s recommended to restrict remote access to only trusted external IPs For example : if using port forwarding for external access, and opening ports 8081 forwarding 8081 to 80 of the IP address of the RF11iQP, external access to port 8081 is recommended to be limited too. - Page 9 3.5 OPERATIONAL AND PROTECTION STATUS RF11iQP PROTECTION FUNCTIONING CORRECTLY Power On LEDs. ‘AUS’ – Green, ‘IEC’ – Green. PROTECTION NOT FUNCTIONING If any condition displayed on the LED’s is other than both ‘Green’ please contact Thor Technologies immediately. RF11iQP Warranty and User Manual...
-
Page 10: Smartphone App
3.6 SMARTPHONE APP Access Enter the hostname or IP address into your Smart phone web browser. e.g. http://RF11iQP.local Operation The RF11iQP has a revolutionised remote control of a power filtration & distribution system using a Smartphone web browser It is the same as the web server page but oriented to fit a Smartphone screen •... - Page 11 4. APPLICATION NOTE (HOW TO TURN ON/OFF STAND-BY POWER) Use of HTTP interface to remotely control the RF11iQP unit. The RF11iQP exposes an HTML interface via the /cpan.cgi url which allows the user to power up/ down the output and enable the buzzer for faults on each circuit. It also allows the user to silence the buzzer if it is active.
- Page 12 Given that the device has a HTML interface which displays status and provides a user interface for this cpan.cgi command interface, the URL is not especially useful on its own. When, however, it is combined with the cURL utility (available for Linux, Mac and Windows) it means that any of these functions on the unit may be operated from the command line on any application.
-
Page 13: Windows Example
Windows Example Start by finding a version of curl that works on your system. A good place to start is http://curl.haxx.se/download.html. Download and copy the curl.exe into your c:\windows\system32 directory. You may need to do this by running an explorer or cmd shell as administrator. - Page 14 5. EXTERNAL EARTH CONNECTION Add external earth Terminate cable with a vinyl-insulated ring terminal similar to kst drvs5-1 or similar with a hole ø to fit m4 stud ... Hook-up wire 300v grn / yel or yel / grn min 16awg ... Similar to alphawire ul 1007 3057 Figure 2 OPTIONAL An external earth can be added to selected RF11 Series products to meet earthing requirements...
-
Page 15: Important Note
6. BRACKET ADJUSTMENT INSTRUCTIONS ADJUSTABLE RACK MOUNTING BRACKET The RF11 Series has a unique adjustable Rack Mounting Bracket to be set by the end user. (A) The bracket can be adjusted to accommodate the depth of the plugs that are connected. The bracket has a stop point limit and can be adjusted from flat, level with the front panel to its maximum point of travel as shown by the arrows in Figure 1 A. -
Page 16: Appendix A - Glossary
REFERENCE Error messages and causes: Appendix A - Glossary Title Title Appendix B - Index Title Title RF11iQP Warranty and User Manual... -
Page 17: Year Product Warranty
This THOR product is sold by the Dealer or Agent as principal. The Dealer or Agent has no authority from THOR Technologies Pty Ltd to express any additional warranty or guarantee on the Company’s behalf except as herein contained. - Page 18 RF11iQP Warranty and User Manual...
- Page 19 RF11iQP Warranty and User Manual...
- Page 20 THOR TECHNOLOGIES PTY LTD 1300 766 140 | warranty@thortechnologies.com.au PO Box 95, Karrinyup, Western Australia, Australia 6921 thortechnologies.com.au RF11iQP v1.3 – 05/22 RF11iQP Warranty and User Manual...
