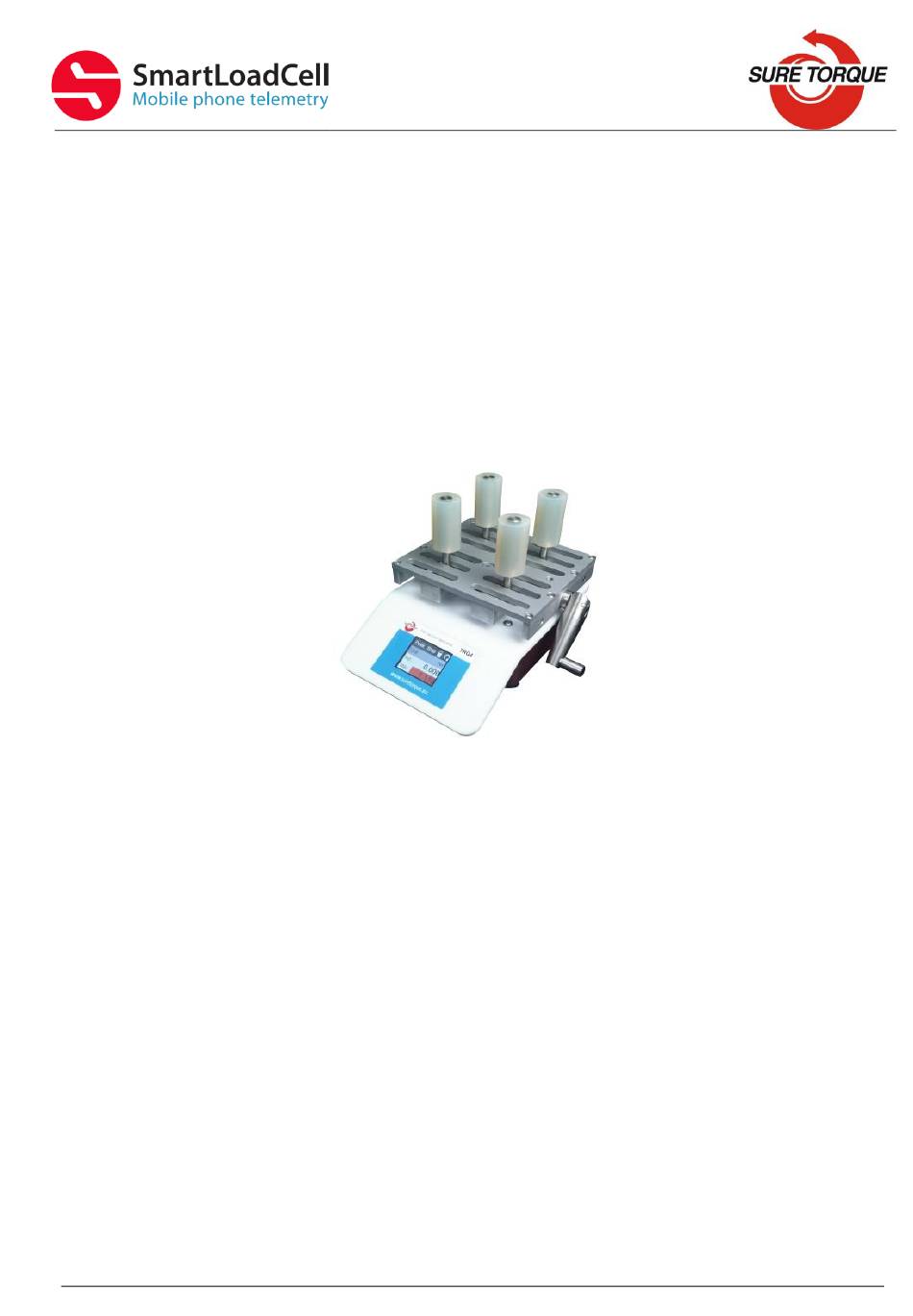

- Page 1 ’ MART ELL USER S MANUAL Smart Load Cell TRQ4 manual desktop torque tester Serial numbers: TRQ4 torque tester: ST-E…… Date of purchase: ……………………... Warranty: 3 years SLC-TRQ4 manual v1.1...
- Page 2 TRQ4 DESKTOP TORQUE TESTER INSTALL Download: www.suretorque.eu / Support / Downloads / SmartLoadCell_Single application – v_1.14.5 – apk http://www.suretorque.eu/media/wysiwyg/download/slc_v1.14.5.apk System requirements: Android 6.0 or higher, 1 GB RAM, 1 GHz Processor, 4 GB ROM Install the SmartLoadCell Android application on your device! SETUP –...
- Page 3 After pressing OK button, all the changes will apply on the phone and on the device’s screen too. For example when changing the measuring unit, or measuring Mode. LCD SCREEN FEATURES The built in LCD screen is designed to show the most important information in a similar way as in the Android application.
- Page 4 DOING A TEST 1. Set clamping fingers to the diameter of your sample. Make sure clamping fingers are set symmetrical to ensure centered grip of the container. TRQ4 is aquiped with quick lock clamping table that enables super quick sample change: 2.
- Page 5 SETUP – A LIITLE MORE IN THE DETAILS Measuring modes: Continuous – records all measuring points Single peak – Measurement stops from start to stop automatic after the 1 peak. Result: maximum value. Result: maximum value This mode is ideal for monitoring longer This mode is ideal for monitoring short procedures with several peaks as chuck procedures with...
-
Page 6: Further Features
procedures with 2 discrete peaks as cap testing hundreds of cycles release and warranty ring break torque Result: maximum of the peaks testing 1. Select measuring unit 2. Set trigger level – Trigger level is a load level that starts and stops the measurement recording - “start-stop signal”... -
Page 7: Shutting Down
SHUTTING DOWN Shutting down the SmartLoadCell – To turn off, select the turn-off-button on the main screen or keep the power button pushed for 10 seconds on the SmartLoadCell unit. CHARGING Charging – SmartLoadCells can be charged with any micro USB charger. While charging the status led on the unit will be red. - Page 8 CALIBRATION Load cells’ calibration should be generally checked (verified) every year. Frequency of the calibration check may be higher or lower upon the application and the stress of the load cell. Load cell must be recalibrated only in the case, if the measured values are outside of the tolerance range during the calibration check.
-
Page 9: Troubleshooting
SmartLoadCell unit. If cover is sealed, pay attention on sealing it with clear silicone when reclosing the cover! CONTACT Manufacturing and distribution: Sure Torque Europe ltd. H-1134 Budapest, Rozsafa u. 13., HUNGARY Tel.: +36.1.3917389 SLC-TRQ4 manual v1.1... - Page 10 Fax: +36.1.3917310 mail@sureotrque.eu www.suretorque.eu SLC-TRQ4 manual v1.1...
