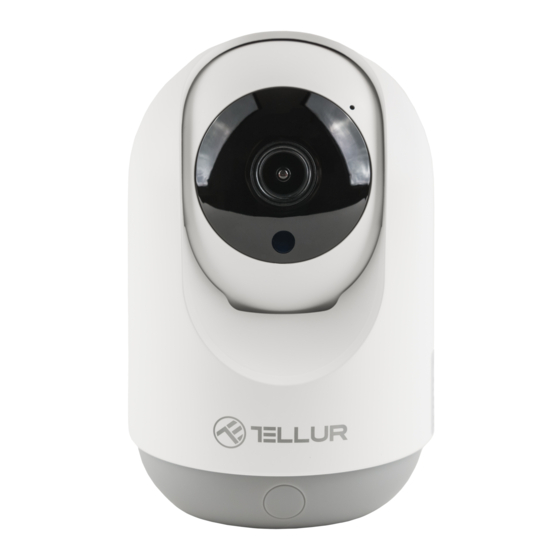

- Page 1 Smart WiFi Indoor Camera UltraHD, Pan &Tilt TLL331391 User manual...
- Page 2 Thank you for choosing Tellur! To ensure an optimum performance and safety, please, read this user manual carefully before using the product. Keep this user manual safe for future references. What's in the box...
- Page 3 Product diagram microphone infrared light lens light sensor reset button microSD card slot speaker power connector...
- Page 4 Technical specifications Sensor type: 1/2.7" CMOS Sensor resolution: 3 Megapixels Lens: f:3.6mm Angle adjustment: Tilt: 0° ~ +65°; Pan: 0~350° + Zoom Infrared sensor: Yes, up to 10 meters Image resolution: Ultra HD 2304 x 1296 Video compression: H.264 + H.265 Frame rate: Up to 20/second Image flip: Horizontal and vertical by APP Motion detection: PIR...
- Page 5 Mare sure your phone is connected to the 2.4GHz wireless network and you have access to WiFi password before you start the pairing procedure. Pairing the device 1. Download and install the Tellur Smart app, available for either iOS or Android devices.
- Page 6 Wi-Fi, keep the mobile phone and device close to the router to speed up the configuration of the device. 3. Open the Tellur Smart app and click “Add device” or “+” and then select “Video Surveillance” -> “Smart Camera (Wi-Fi)”.
- Page 7 a. When connecting, make sure your router, smartphone and the camera are as close as possible. b. Power on and reset the camera until the status indicator is flashing quickly or a prompt tone is heard, and then click "Next". Then input your WiFi password and click "Next".
- Page 8 Storage Installing microSD card 1. Rotate the camera lens up to find the card slot at the bottom of the lens. 2. Insert the card in the slot (The camera supports microSD cards up to 128GB capacity, minimum class 10 required.) microSD card...
- Page 9 Open Tellur Smart app, go to "Profile" -> "Device sharing" -> "Sharing sent", tap "Add sharing" and share the device with the added family members. Notice - users must install the Tellur Smart app on their device in order to see shared devices.
- Page 10 Disposal and recycling information The crossed-out wheeled-bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in the normal waste stream with household garbage.
