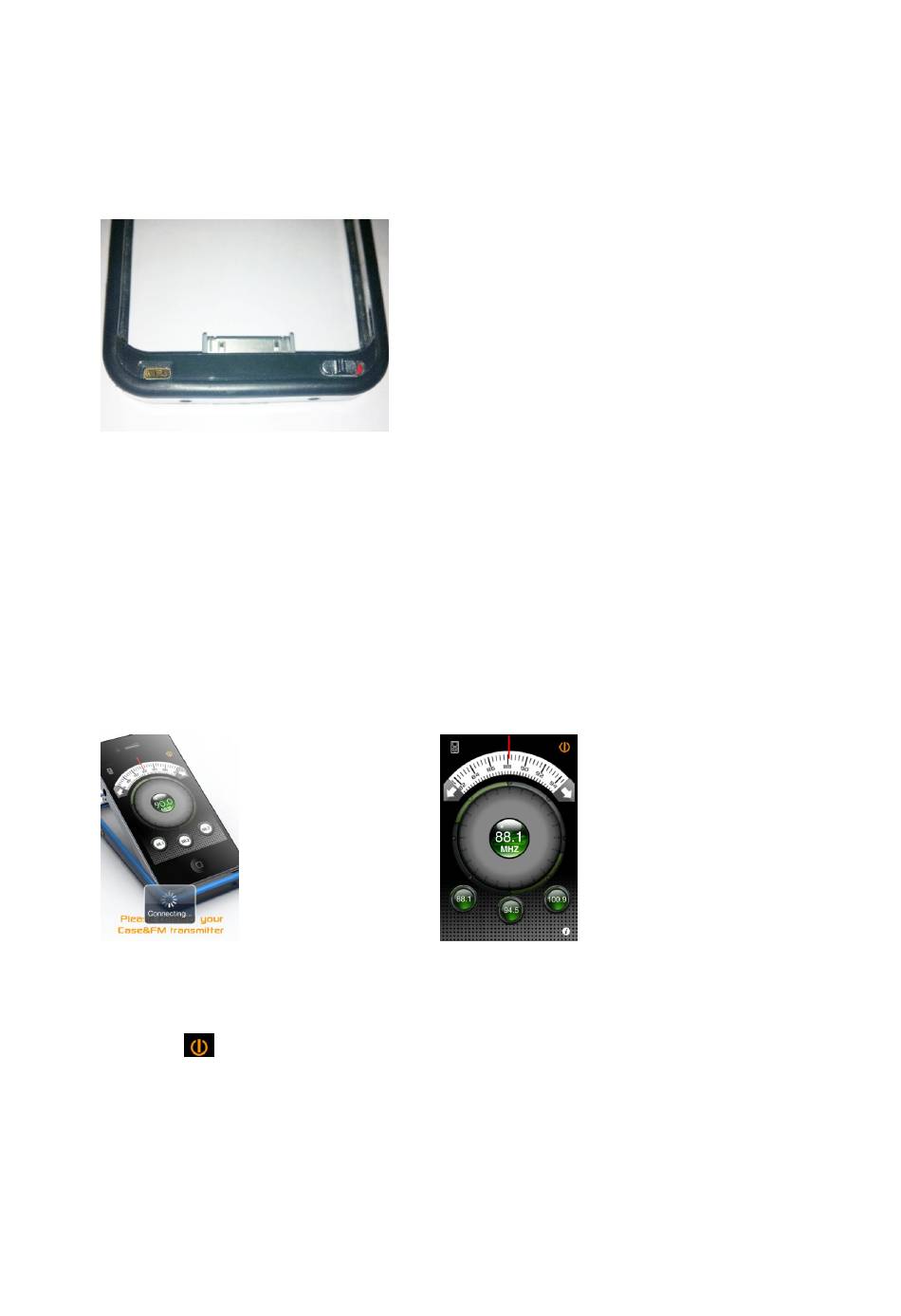

FM23 Quick Guide

Power On

You can use the button on the back size (the right button as below) to power on

or power off FM Transmitter. If the switch is on right side (RED color), means

FM Transmitter is on working; if it's on left side, means FM Transmitter is off

working.

Please see the USB port in left side. You can connect the iPhone4G with PC

by using the USB cable for date transferring, charging; or charge your

iPhone4G by connecting with cigarret lighter.

Plug the FM Transmitter to iPhone4G，select the APP icon, the iPhone4G will

appear "connecting", as shown (1).

When the system complete the connecting, it will get into the main interface, as

shown (2):

(1) connecting

(2) main interface

Click

on the APP interface, can turn on/off the FM Transmitter.

Meanwhile, the disc displayed on the center will use different color to show

different status. GRENN means ON, and RED means OFF.

Shown as below:

Table of Contents

Do you have a question about the FM23 and is the answer not in the manual?

Page 1 FM23 Quick Guide Power On You can use the button on the back size (the right button as below) to power on or power off FM Transmitter. If the switch is on right side (RED color), means FM Transmitter is on working; if it’s on left side, means FM Transmitter is off working.
Page 2 （3） ON transmitting mode （4）OFF transmitting mode Adjust the Frequency: 1. Please rotate the big disk showed on the iPhone by truning your figure, can quickly adjust the frequency. 2. To click the arrow at both size ends of the ruler, can adjust the frequency single-step.
Page 3 FM stations preset Select the 3 buttons shown on APP, can extract the current 3 preset stations which was saved, and transmit it. Preset Press for more than 3 seconds, will enter the storage position, when the edge of the button starts flashing, you can adjust the radio. If you press again, you will exit the storage units.
