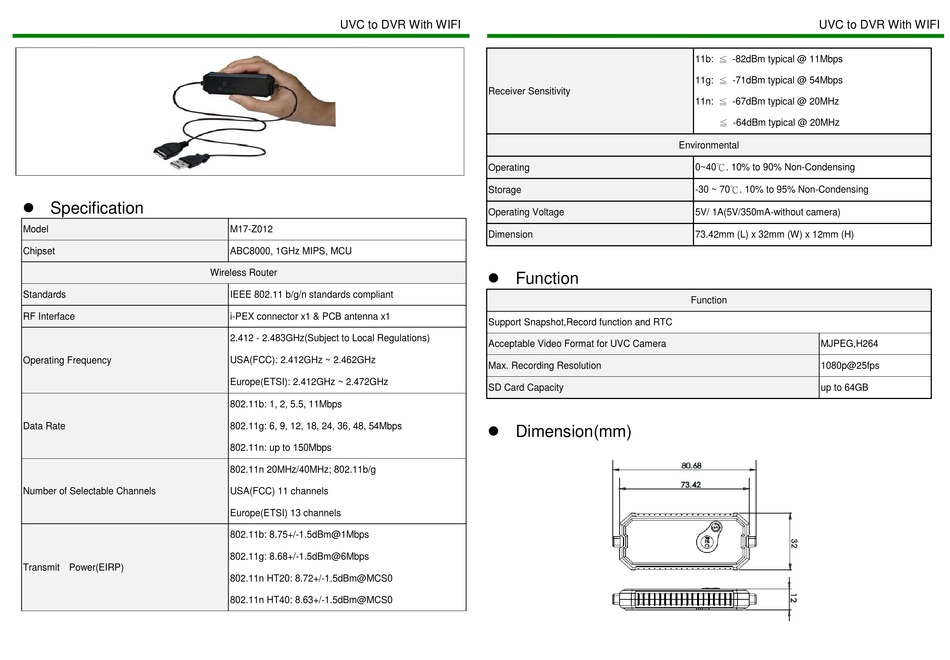

Avisonic M17-Z012 Manual

 Specification
Model
Chipset
Standards
RF Interface
Operating Frequency
Data Rate
Number of Selectable Channels
Transmit Power(EIRP)
UVC to DVR With WIFI
M17-Z012
ABC8000, 1GHz MIPS, MCU
Wireless Router
IEEE 802.11 b/g/n standards compliant
i-PEX connector x1 & PCB antenna x1
2.412 - 2.483GHz(Subject to Local Regulations)
USA(FCC): 2.412GHz ~ 2.462GHz
Europe(ETSI): 2.412GHz ~ 2.472GHz
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 150Mbps
802.11n 20MHz/40MHz; 802.11b/g
USA(FCC) 11 channels
Europe(ETSI) 13 channels
802.11b: 8.75+/-1.5dBm@1Mbps
802.11g: 8.68+/-1.5dBm@6Mbps
802.11n HT20: 8.72+/-1.5dBm@MCS0
802.11n HT40: 8.63+/-1.5dBm@MCS0
Receiver Sensitivity
Operating
Storage
Operating Voltage
Dimension
 Function
Support Snapshot,Record function and RTC
Acceptable Video Format for UVC Camera
Max. Recording Resolution
SD Card Capacity
 Dimension(mm)
UVC to DVR With WIFI
11b: ≦ -82dBm typical @ 11Mbps
11g: ≦ -71dBm typical @ 54Mbps
11n: ≦ -67dBm typical @ 20MHz
≦ -64dBm typical @ 20MHz
Environmental
0~40℃. 10% to 90% Non-Condensing
-30 ~ 70℃. 10% to 95% Non-Condensing
5V/ 1A(5V/350mA-without camera)
73.42mm (L) x 32mm (W) x 12mm (H)
Function
MJPEG,H264
1080p@25fps
up to 64GB
