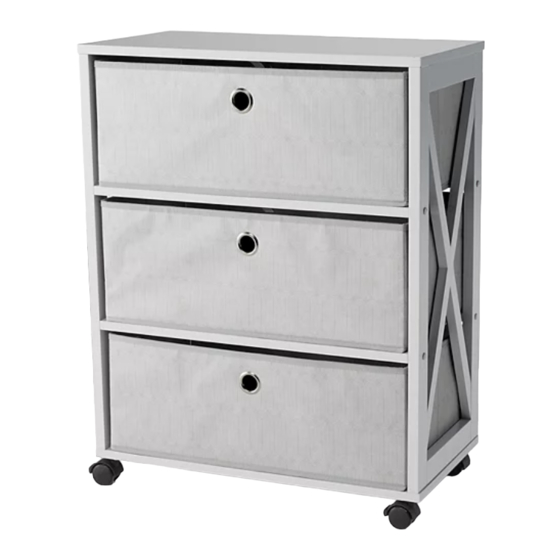

SIMPLE BY DESIGN 3 DRAWER STORAGE UNIT ASSEMBLY INSTRUCTIONS
ASSEMBLE ON A FLAT, PROTECTED SURFACE
PHILLIPS HEAD SCREWDRIVER NEEDED FOR ASSEMBLY; NOT INCLUDED
FIGURE
PART LIST
A
B
C
D
E
F
G
H
I
J
K
L
M
SAVE THESE INSTRUCTIONS
STYLE #: 73SDRST01
QUANTITY
1 PC
2 PCS
2 PCS
1 PC
3 PCS
3 PCS
4 PCS +1 PC
4 PCS + 1 PC
12 PCS + 1 PC
12 PCS + 1 PC
16 PCS + 1 PC
2 PCS
2 PCS
DESCRIPTION
TOP PANEL
SIDE PANEL
SHELF
BOTTOM SHELF
DRAWER
DRAWER BOTTOM
CAM BOLT
CAM LOCK
BOLT
(1/4" x 1 3/4")
BARREL NUT
LONG SCREW
(3/16" x 1/2")
BACK WHEEL
FRONT LOCKING WHEEL
Page 1/8
Advertisement
Table of Contents
Related Manuals for Simple By Design 73SDRST01
Summary of Contents for Simple By Design 73SDRST01
- Page 1 SAVE THESE INSTRUCTIONS SIMPLE BY DESIGN 3 DRAWER STORAGE UNIT ASSEMBLY INSTRUCTIONS STYLE #: 73SDRST01 ASSEMBLE ON A FLAT, PROTECTED SURFACE PHILLIPS HEAD SCREWDRIVER NEEDED FOR ASSEMBLY; NOT INCLUDED FIGURE DESCRIPTION PART LIST QUANTITY 1 PC TOP PANEL 2 PCS...
- Page 2 SAVE THESE INSTRUCTIONS SIMPLE BY DESIGN 3 DRAWER STORAGE UNIT ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 73SDRST01 ASSEMBLE ON A FLAT, PROTECTED SURFACE PHILLIPS HEAD SCREWDRIVER NEEDED FOR ASSEMBLY; NOT INCLUDED SHORT SCREW 3 PCS + 1 PC (1/8" x 1/2")
- Page 3 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 73SDRST01 STEP 1 A. PLACE TOP PANEL (A) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. INSERT CAM BOLTS (G) INTO TOP PANEL (A) USING PHILLIPS HEAD SCREWDRIVER, NOT INCLUDED. TIGHTEN COMPLETELY. C. ATTACH DRAWER STOP (O) TO TOP PANEL (A) WITH SHORT SCREW (N) USING PHILLIPS HEAD SCREWDRIVER, NOT INCLUDED.
- Page 4 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 73SDRST01 STEP 3 A. PLACE SHELVES (C) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. ATTACH DRAWER STOPS (O) TO SHELVES (C) AT FRONT WITH SHORT SCREWS (N) USING PHILLIPS HEAD SCREWDRIVER, NOT INCLUDED. TIGHTEN COMPLETELY.
- Page 5 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 73SDRST01 STEP 5 A. INSERT BARREL NUTS (J) INTO HOLES ON SHELVES (C) AT BOTTOM. B. ATTACH SHELVES (C), KEEPING DRAWER STOPS AT FRONT, TO SIDE PANELS (B) WITH BOLTS (I) USING PHILLIPS HEAD SCREWDRIVER, NOT INCLUDED.
- Page 6 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 73SDRST01 STEP 7 A. UNFOLD DRAWERS (E). B. INSERT DRAWER BOTTOMS (F) INTO DRAWERS (E). STEP 8 A. ROTATE ASSEMBLED UNIT TO THE UPRIGHT POSITION. B. PLACE ASSEMBLED DRAWERS INTO THE ASSEMBLED UNIT AS SHOWN.
- Page 7 ANTI-TIP HARDWARE MOUNTING INSTRUCTIONS FOR DRYWALL STYLE #: 73SDRST01 PHILLIPS HEAD SCREWDRIVER, DRILL, & 7/32" DRILL BIT NEEDED FOR ASSEMBLY; NOT INCLUDED. FOR SAFETY REASONS, INSTALL THIS PRODUCT USING THE INCLUDED ANTI-TIP HARDWARE TO HELP PREVENT THE PRODUCT FROM UNEXPECTEDLY TIPPING OR SHIFTING.
- Page 8 ANTI-TIP HARDWARE MOUNTING INSTRUCTIONS FOR DRYWALL (CONTINUED) STYLE #: 73SDRST01 STEP 10 A. DETERMINE WHERE THE STORAGE UNIT IS TO BE PLACED, THEN MARK THE POSITION ON THE WALL SO THE WALL ANCHOR (3) WILL ALIGN WITH THE STRAP (4) ON THE BACK OF THE STORAGE UNIT.
