DURO MAXX DM4P10K Installation & Owner's Manual

Four post lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DM4P10K
Four Post Lift
10,000 lbs. Capacity
(5,000 lbs. per axle)

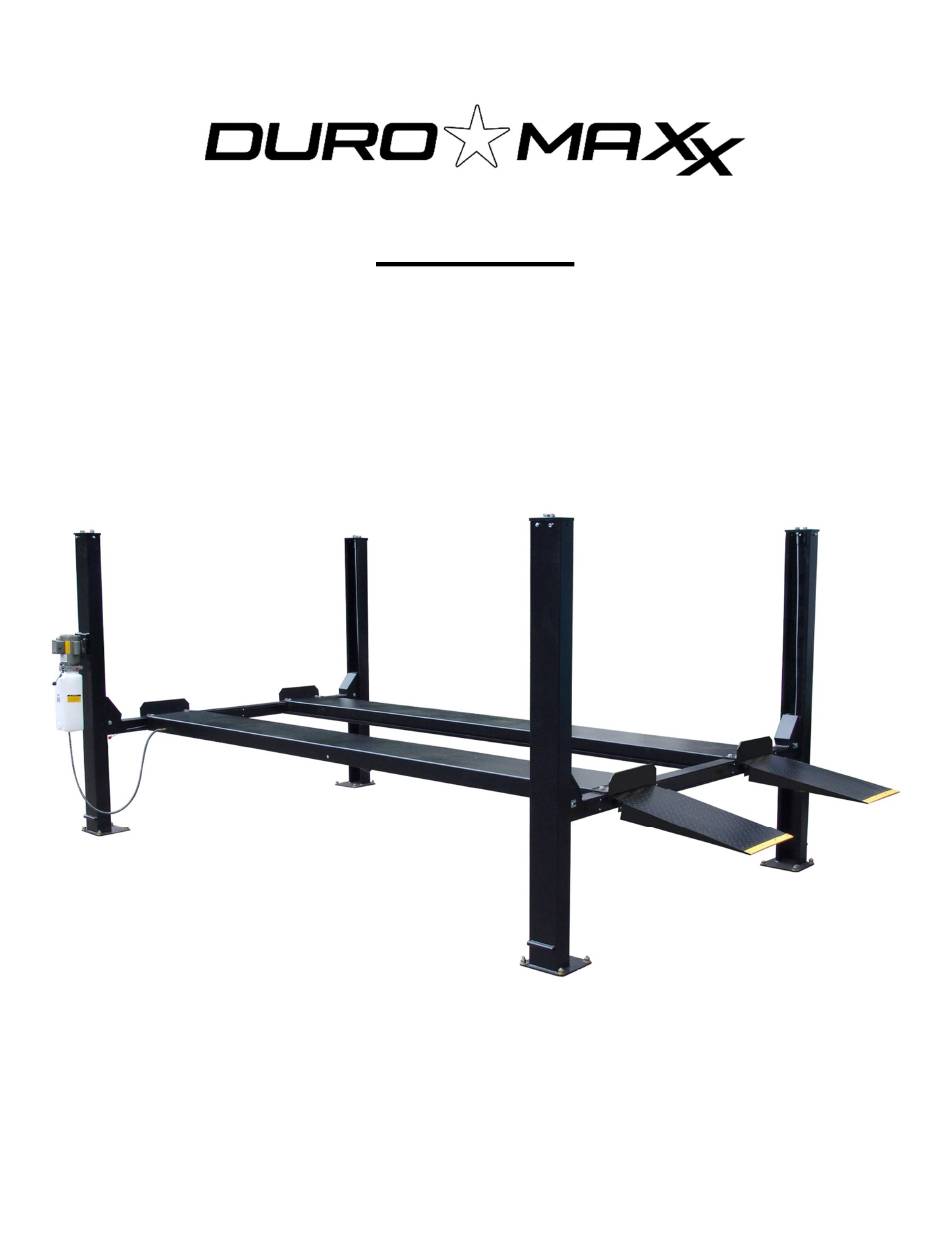

INSTALLATION / OWNERS MANUAL
July 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM4P10K and is the answer not in the manual?

Questions and answers

Summary of Contents for DURO MAXX DM4P10K

  • Page 1 DM4P10K Four Post Lift 10,000 lbs. Capacity (5,000 lbs. per axle) INSTALLATION / OWNERS MANUAL July 2018...

  • Page 2: Table Of Contents

    7. Never raise a car until you have double checked all bolts, nuts and hose fittings. 8. Always lower the lift to locks before going under the vehicle or storing another vehicle underneath lift. 9. Never allow anyone to go under the lift when raising or lowering. DM4P10K July 2018...

  • Page 3: Owner / Employer Responsibility

    The user assumes full responsibility for any equipment damage, personal injury, or alteration of the equipment described in this manual or any subsequent damages. LIFT SPECIFICATIONS DM4P10K Lift Specifications Lifting Capacity 10,000 lbs. Lifting Height 85”...

  • Page 4: Floor Plan Layout

    FLOOR PLAN LAYOUT DM4P10K (Shown with optional Drip Trays & Jack Tray) DM4P10K July 2018...

  • Page 5: Tools Required

    DO NOT install lift close to wall. It is necessary to leave adequate clearance for safely walking. Suggested clearance to be 1 meter (3 feet) at min. OPERATING CONDITIONS: Lift is not intended for outdoor use and has an operating ambient temperature range of 41º-104ºF (5º-40ºC). DM4P10K July 2018...

  • Page 6: Main Components & Accessory Identification

    MAIN COMPONENTS IDENTIFICATION DM4P10K Power Unit Column Column Sub Runway Drive-On Ramps (Not shown) (Optional) Wheel Stop Crossbeam Drip Trays (Optional) Jack / Tool Tray Mainside Runway Power Unit (Optional) Poly Caster Kit Foot Step OPTIONAL ACCESSORIES NOT SHOWN: · RJ-45 Rolling Scissor Jack – 4,500 lbs. capacity...

  • Page 7: Installation Instructions

    ‘Wire braded’ Hose 90 degree Fitting w/ Jam Nut Fig. 2 4. Fully extend the Cylinder Piston Rod by pushing or pulling on the Cable Lock Plates (#41 & #42) mounted on the end of the Cylinder. DM4P10K July 2018...
  • Page 8 Cover Panels Fig 3 Arrange the Crossbeams so that the Latches’ Linkage Rods are facing outward and the Short Rod (#83) is closest to the Power Unit Column, as shown in (Fig.4). Linkage Rods Short Rod Fig. 4 DM4P10K July 2018...
  • Page 9 Washer (#13) and Nut (#14) as shown in Fig 5b. Note: Ensure Jam Nut (#12) is positioned below Top Caps. Position the Crossbeams at the second lowest locking position Lock Ladder on all columns. Fig. 5 DM4P10K July 2018...
  • Page 10 Hex Bolts (#24), Lock Washer (#25), Flat Washer (#26), as shown in Fig. 6. The lift will square itself as you further assemble it. Note: Ensure to install the ‘offside’ Sub Runway opposite from the Main side Runway and Power unit Column as shown in Fig.6. Fig. 6 DM4P10K July 2018...
  • Page 11 (#95) is between the Cable and the Lock Ladder as shown in Fig.7. This will allow the secondary Slack Cable Lock to function properly. See Fig.7 below for Cable routing installation. Plastic Cable Pulley Nylon Lock Nut & Washer Fig. 7 DM4P10K July 2018...
  • Page 12 19. Mount the Power Unit (#8) to the Mainside Column with the attached mounting bracket using the Hardware provided, shown in Fig.9. Once mounted, fill the Power Unit reservoir tank with hydraulic fluid. Now, install the 90 degree Hydraulic Fitting (#44) to the high pressure port on the Power Unit. Fig. 9 DM4P10K July 2018...
  • Page 13 29. (Optional) Install the Jack / Tool Tray & Drip Trays between the Runways, if purchased. NOTE: Ensure to lubricate ALL Cable Sheaves, Bearings and Shafts with grease prior to operating Lift. The Lift installation is now complete. DM4P10K July 2018...
  • Page 14 Columns rise to clear the floor. (Shown with optional Caster Kit, Jack Tray & Drip Trays) CAUTION: DO NOT maneuver Lift with Casters, while vehicle is on Lift. Read Safety & Operation Instructions before operating Lift. DM4P10K July 2018...

  • Page 15: Foundation & Anchoring Requirements

    Clean hole. Run nut down just Tighten nut with carbide tipped below impact section Torque wrench to masonry drill bit per of bolt. Drive anchor 130 ft.-lbs. ANSI standard into hole until nut and B94.12.1977 washer contact base. DM4P10K July 2018...

  • Page 16: Safety Instructions & Procedures

    Motors and all electrical components are not sealed against the weather and moisture. Install this lift in a protected indoor location. Failure by the owner to provide the recommended shelter could result in unsatisfactory lift performance, property damage, or personal injury. DM4P10K July 2018...

  • Page 17: Operation Instructions

    UNDER THE VEHICLE. NEVER ALLOW ANYONE TO GO UNDER THE LIFT WHEN RAISING OR LOWERING. NOTE: It is normal for an empty lift to lower slowly - it may be necessary to add weight. Read and adhere to all WARNING, CAUTION and SAFETY INSTRUCTIONS labels on lift. DM4P10K July 2018...

  • Page 18: Preventive Maintenance Schedule

    Ø Check for excessive wear of cable. Replace them if necessary. Ø Change the hydraulic fluid - operating temperature, type of service, contamination levels, filtration, and chemical composition of fluid should be considered. If operating in dusty environment shorter interval may be required. DM4P10K July 2018...

  • Page 19: Troubleshooting

    1. Cross beam ends are rubbing the columns. Readjustment needed. 2. Cylinder too tight, load lift half capacity and cycle up and down a few times to break in. 3. May have excessive wear on cable sheaves or shafts. Replace them. DM4P10K July 2018...

  • Page 20: Latch & Cable Inspection / Adjustments

    Latches may not click in at the same time when vehicle is being raised but should be close. Be sure all four corners have passed the locking latch bar slot before lowering lift on locking latches. DM4P10K July 2018...

  • Page 21: Exploded Views

    EXPLODED VIEW #1 (Optional Accessories Shown) DM4P10K July 2018...
  • Page 22 EXPLODED VIEW #2 DM4P10K July 2018...
  • Page 23 EXPLODED VIEW #3 DM4P10K July 2018...

  • Page 24: Parts List

    PARTS LIST DM4P10K (Note: Optional Accessories Parts Listed and notated with an asterisk *) ITEM Tux P/N M-Ref P/N DESCRIPTION FP9KDX-001 KY-8440T-1000 Main Column FP9KDX-002 KY-8440T-1000A Sub Column FP9KDX-003 KY-8440T-3000 Mainside Runway FP9KDX-004 KY-8440T-3000A Sub Runway FP9KDX-005 KY-8440T-2000C Crossbeam Kit...
  • Page 25 End Cover #1 FP9KDX-071 KY-8440T-2000-21 Latch, End Cover #2 FP9KDX-072 Screw, M6x12mm FP9KDX-073 Lock Washer, M6 FP9KDX-074 Flat Washer, M6 FP9KDX-075 KY-8440T-5000A Release Handle, Short FP9KDX-076 SY-8435T-5000-10 Plastic Knob FP9KDX-077 Screw, M6x30mm FP9KDX-078 Lock Nut, M6 FP9KDX-079 Screw, M6x25mm DM4P10K July 2018...
  • Page 26 FP9KDX-097 KY-8440T-2000-19 Cover Plate, Crossbeam FP9KDX-098 KY-8440T-6000-4 Cable #3 (374.53" x 3/8") FP9KDX-099 KY-8440T-6000-4 Cable #4 (315.47" x 3/8") FP9KDX-100 KY-8440T-6000-4 Cable #2 (190.35" x 3/8") FP9KDX-101 KY-8440T-6000-4 Cable #1 (131.50" x 3/8") FP9KDX-102 163019-102 Anchor Bolt DM4P10K July 2018...
  • Page 27 This warranty gives you specific legal rights and you may have other rights, which may vary from state to state. 1905 N Main St Suite C, Cleburne, TX 76033 Ph 817-558-9337 / Fax 817-558-9740 DM4P10K July 2018...
