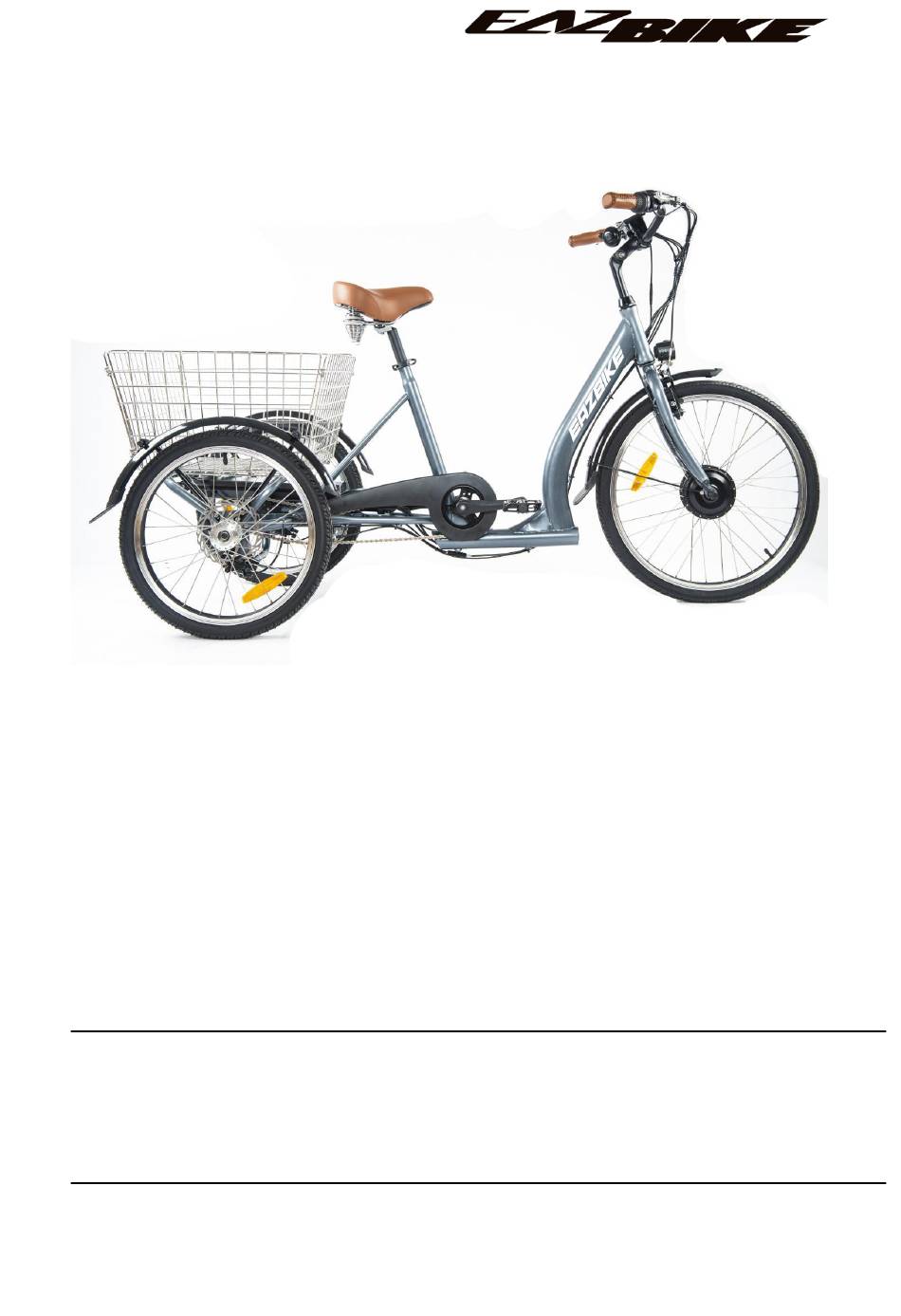

EAZBIKE MG7101 ELECTRIC TRICYCLE
EAZBIKE MG7101 ELECTRIC TRICYCLE
User Manual
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID
WARRANTY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
PRODUCTS COVERED BY THIS MANUAL MAY VARY IN APPEARANCE, ASSEMBLY, INCLUSIONS, SPECIFICATIONS, DESCRIPTION
AND PACKAGING.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG7101 and is the answer not in the manual?

Questions and answers

Summary of Contents for EAZbike MG7101

  • Page 1 EAZBIKE MG7101 ELECTRIC TRICYCLE EAZBIKE MG7101 ELECTRIC TRICYCLE User Manual READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. KEEP THIS MANUAL FOR FUTURE REFERENCE. PRODUCTS COVERED BY THIS MANUAL MAY VARY IN APPEARANCE, ASSEMBLY, INCLUSIONS, SPECIFICATIONS, DESCRIPTION...
  • Page 2: Safety And Warning

    EAZBIKE MG7101 ELECTRIC TRICYCLE Safety & Warning • Riding can be a hazardous activity. Certain conditions may cause the equipment to fail without fault of the manufacturer. The product can and is intended to move, and it is therefore possible to lose control, fall-off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate.
  • Page 3 EAZBIKE MG7101 ELECTRIC TRICYCLE damage and creating possible dangerous situations. • Never spray your bike directly and don’t get the electrical components wet (the battery connector, motor, controller, cables, handlebar controls, etc) • Don’t let children under the age of 10 ride the bike.
  • Page 4: Read The Manual

    EAZBIKE MG7101 ELECTRIC TRICYCLE Introduction Congratulations on purchasing a EAZBIKE pedal assisted bicycle. We hope you enjoy years of satisfactory and safe riding. Read the manual This manual is provided to help you to get the best performance, comfort, enjoyment and safety from your bicycle.
  • Page 5: Operation

    EAZBIKE MG7101 ELECTRIC TRICYCLE Operation Before riding, ensure that all required fasteners are tightened to the correct torque and charge the battery prior to use. Always wear a helmet and appropriate safety equipment and always keep both hands on the handlebars and both feet on the pedals whilst riding.
  • Page 6 EAZBIKE MG7101 ELECTRIC TRICYCLE Presentation of LCD Screen...
  • Page 7: General Operation

    EAZBIKE MG7101 ELECTRIC TRICYCLE General Operation To switch on the E-bike system and provide the power supply to the controller, hold the MODE button for 3 seconds. To switch off the E-bike system, hold the MODE button for 3 seconds. The E-bike system no longer uses the battery power.
  • Page 8: Using Gears

    EAZBIKE MG7101 ELECTRIC TRICYCLE ride uphills or are pedaling with a higher load on the bike, the battery will not last as long and you will not be able to travel as far using the battery. Using Gears Some model are equipped with gears. Gears are used to change the ratio between rotations of the rear wheel and the crank set.
  • Page 9: Using Brakes

    EAZBIKE MG7101 ELECTRIC TRICYCLE Using Brakes All bicycle models are equipped with a front and rear wheel braking system. Brakes are used to slow the bicycle down. The braking systems may use different mechanics, however, the functionality is the same, and that is to change the energy of the moving bicycle into heat energy ("friction"):...
  • Page 10: Batteries And Battery Charging

    EAZBIKE MG7101 ELECTRIC TRICYCLE Batteries and Battery Charging Before charging, you must turn the power switch to “OFF” and pull out the key. Keep the charger in a dry and ventilated condition when it’s working. • Firstly, connect the output plug of the charger with the socket of the battery case properly, and then insert the input plug into the electrical outlet.
  • Page 11: Maintenance

    EAZBIKE MG7101 ELECTRIC TRICYCLE Battery Storage When storing the batteries for a long period of time: Charge the batteries at least every 30 days to avoid capacity loss. Batteries slowly self-discharge when unused over a long period. If the battery cells are left at a critically low charge state, the lifespan and capacity will be permanently reduced.
  • Page 12 EAZBIKE MG7101 ELECTRIC TRICYCLE Lubrication: For a long service life the following parts of your E-Bike should be regularly lubricated every half year: • Front axle • Chain • Rear axle • Freewheel • Front fork and other rotation parts.
  • Page 13: Maintenance Schedule

    EAZBIKE MG7101 ELECTRIC TRICYCLE For safety, longest possible service life and reliability, maintain the bicycle properly. Use the maintenance schedule below for guidance. It is very important that you check certain systems and components before each and every ride. The proper condition and function of these systems is critical to your safety.
  • Page 14: Troubleshooting

    EAZBIKE MG7101 ELECTRIC TRICYCLE Troubleshooting Malfunction Possible Cause Possible Solution Pedal assistance not Under-charged battery. Charge battery. Follow battery care procedures. working Battery no longer serviceable. Have battery checked. Replace if faulty. Battery charger faulty. Have charger checked. Replace if faulty.
  • Page 15 EAZBIKE MG7101 ELECTRIC TRICYCLE Motor "clicks" / has Under-charged battery. Charge battery. Follow battery care procedures. reduced power and/or Motor internal fault. Replace. shuts off No power when pedal Blown fuse. Replace. assistance switched ON Loose connectors / wiring damage.
