Summary of Contents for Human HumaSens2.0plus

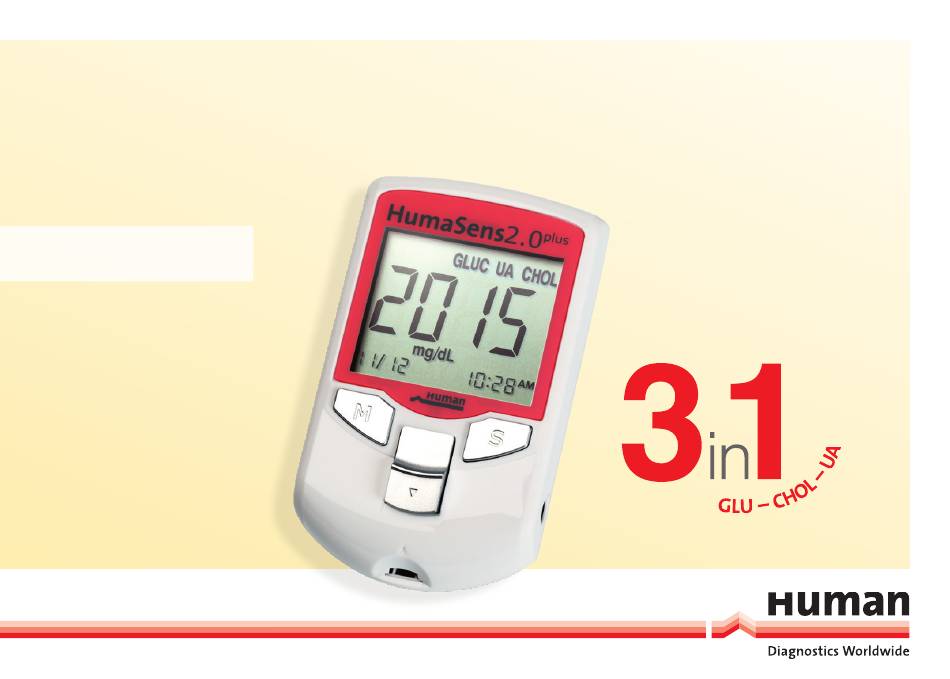

- Page 1 HumaSens2.0 plus Starter Pack User Manual...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 HumaSens2.0 plus Multi-Parameter System _________________________________________________________________ Introduction _____________________________________________________ Contents of the Starter Pack ______________________________________________________ Labelling and Information _________________________________________________________ HumaSens2.0 Meter plus _______________________________________________ LCD Screen Display and Alert Tones ________________________________________________________ Test Strip and Code Strip Chapter 2 Setting the Meter _________________________________________________ Installing/Replacing the Batteries... - Page 3 ___________________________________________________ Chapter 4 Meter Memory Function 15– 16 _____________________________________________________ Chapter 5 Control Solution Test 17– 18 Chapter 6 Care and Maintenance ____________________________________________________________ Care after Testing ______________________________________________ Cleaning and Caring for Your Meter _________________________________________ Chapter 7 Error Message and Trouble Shooting 20–...
-
Page 4: Humasens2.0 Plus Multi-Parameter System
It is used to monitor the level of glucose, total cholesterol and uric acid. The HumaSens2.0 Starter Pack is designed as a semi-automated system. -
Page 5: Contents Of The Starter Pack
1.2 Contents of the Starter Pack The items included in the HumaSens2.0 Starter Pack: plus (please check the meter outer box for exact detail) Description Quantity ________________________________________ HumaSens2.0 plus Multi-Parameter Meter (with a CR2032 3V battery) ______________________________________________________________________________ User’s Manual ________________________________________________________________________________ Quick Guide _____________________________________________________________________________________ Pouch... -
Page 6: Labelling And Information
Chapter 1 HumaSens2.0 plus Multi-Parameter System 1.3 Labelling and Information Recap immidiately Operation temperature Use by after use limitation Storage and transpor- Use within 3 months Manufacturer tation temperature after initial opening limitation Storage and transpor- Do not reuse Attention tation relative humidity limitation Comply with WEEE... -

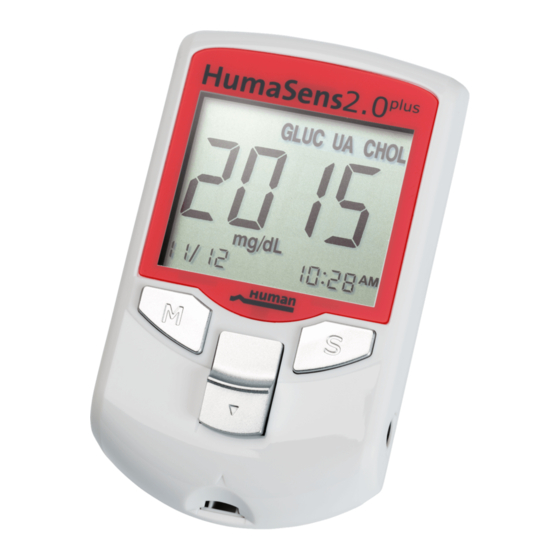

Page 7: Humasens2.0 Plus Meter
1.4 HumaSens2.0 plus Meter Meter (Front Side & Back Side) LCD Screen: Serial Number Sticker Display operating information and test results Battery: 3V lithium battery (CR2032) Please remove the plastic HumaSens2.0 plus Right “S” Button: tab before using Confirm and set up Left “M”... -
Page 8: Lcd Screen Display And Alert Tones
Chapter 1 HumaSens2.0 plus Multi-Parameter System 1.4 LCD Screen Display Information and test result display Result Area Low Battery Temperature Icon Average (GLU) Unit Icon Time System Check Blood Loading Icon Strip Loading Icon Test Mode Icon 1.4 Alert Tones Memory Mode Icon >... -
Page 9: Test Strip And Code Strip
1.4 Test Strip GLU – Glucose CHOL – Cholesterin UA – Uric Acid Sample Inlet: Electronic Contact Bars: The whole blood sample and control Insert this end into meter solution will be drawn from here. CHOL test port. Note: Please fill up the round window with blood sample CHOL test and avoid 1.4 Code Strip disconnecting in the process. -
Page 10: Setting The Meter
Chapter 2 Setting the Meter 2.1 Installing/Replacing the Batteries Please remove the plastic tab under the battery before using. This instrument uses a CR2032 3V lithium battery. Do not use or install different types of battery. It will damage the meter. Installing Instructions: Slide to remove Insert the... -
Page 11: Code The Meter
Note: Adjusting the correct time and date is important to help managing your health records. Selectable units: “mg/dl” and “mmol/l” 2.3 Code the Meter Each vial of strips has a code strip to code your meter. Code your meter when you first use it or open a new vial of strips. With the Auto Strip Identification function, once you code your meter, you do not have to switch the test mode every time you perform a test. -
Page 12: How To Perform A Test
Chapter 3 How to Perform a Test Please follow the instruction carefully to ensure an accurate test result. 3.1 Before Testing Materials you need to perform a test: > HumaSens2.0 plus Meter > HumaSens2.0 Test Strip plus > Lancing Device/Lancets (not provided) >... -
Page 13: Perform The Test
3.2 Perform the Test > Take out a test strip and close > Insert the strip contact bar the vial immediately, or other strips into meter test port. 7142 will get damp. > The meter will turn on automatically. > Make sure the code numbers are >... - Page 14 Chapter 3 How to Perform a Test 3.2 Perform the Test Glucose/Uric Acid 0.7 μl 1 μl 10 μl Fill up OK Fill up FAILED Total Cholesterol CHOL Fill up OK Fill up FAILED CHOL Note: Insufficient fill up of blood sample could lead to inaccurate or failed test result. >...
- Page 15 Note: > Please code your meter when you first use or open a new vial of strips. If you have any question, please read Chapter 2.3. > Please follow the instruction while testing. Improper operation may result in inaccurate test result or damage the system. >...
-
Page 16: Care After Testing
Chapter 3 How to Perform a Test 3.3 Care after Testing 1. Please follow the instruction to discard used lancets into an appropriate biohazard container. > Discard the used lancet (not provided) into biohazard waste container. 2. Record your test result. 3. - Page 17 Note: > Please check your meter performance regularly. > Dropping, bumping or other violent impact may damage the meter or cause malfunction. > Do not use the meter in an environment with possible magnetic, electromagnetic, and radioactive interferences. Warning : >...
-
Page 18: Meter Memory Function
Chapter 4 Meter Memory Function The meter can record 360 results of glucose, 50 results of total cholesterol, and 50 results of uric acid (includes test results and control solution test results). It can also count 7-, 14- 21- and 28-days average for glucose. The latest test result will replace the oldest when the records exceed maximum memory capacity. - Page 19 GLU Individual Record GLU Average GLU Control Record CHOL or UA Individual Record CHOL or UA Control Record...
-
Page 20: Control Solution Test
Chapter 5 Control Solution Test HumaSens2.0 plus control solution is used to check the performance of the HumaSens2.0 plus Multi-Parameter System. The system performs adequately when control test falls within the range listed on the respective test strip’s vial label. The system should be checked: >... - Page 21 > Shake the vial well and discard > Touch the control solution with strip the first three drops of control sample inlet. solution. And put one drop onto a clean, non-absorbant surface. > The result will display after HumaSens2.0 plus countdown.
-
Page 22: Care And Maintenance
Chapter 6 Care and Maintenance 6.1 Storing your Meter The meter will be affected by improper storage and handling. Please follow the instructions and check Chapter 8 for specifications. > Please avoid bumps or other strong forces, it may cause damage to the meter. >... -
Page 23: Error Message And Trouble Shooting
Chapter 7 Error Message and Trouble Shooting Message Cause Solution > Problem with code strip. Repeat the coding procedure and ensure the code number > Strip inserted in an is the same in label, code strip and screen. Insert the strip improper way. - Page 24 Chapter 7 Error Message and Trouble Shooting > Uncompleted test caused Review the instructions and try again with a new test strip. by removing the test strip Please don't remove the strip before the test is completed. during the measurement. >...
-
Page 25: Specifications
Chapter 8 Specifications System Accuracy · ± 15 % at glucose level Sample Volume · GLU: 0.7 μl ≥ 100 mg/dl (5.55 mmol/l); · CHOL: 10 μl · ± 15 mg /dl (0.83 mmol/l) at glucose · UA: 1 μl level <... -
Page 26: Limitations
Chapter 9 Limitations 9.1 All Tests > Use only fresh capillary whole blood taken from a finger. Do not use serum or plasma. > HumaSens2.0/HumaSens2.0 Glucose test strips and HumaSens2.0 Uric Acid and Total Cholesterol plus plus test strips are all plasma calibrated to be used with whole blood; testing with serum or plasma sample will give falsely high results. -
Page 27: Limitations Of Uric Acid Test
9.2 Limitations of Blood Glucose Test > Do not use the test strips for the testing of newborns. > The test strips react with only D-glucose and do not react with other sugars which may be present in blood. > HumaSens2.0/HumaSens2.0 plus Glucose test strips may be used at altitudes up to 10000 feet/3048 m without an effect on test results. - Page 28 HUMAN Gesellschaft für Biochemica und Diagnostica mbH Max-Planck-Ring 21 65205 Wiesbaden Germany Tel. +49 6122-9988-0 Fax +49 6122-9988-100 e-mail: human@human.de www.human.de © 2022 HUMAN...
