Summary of Contents for Cerwin-Vega CU15BT

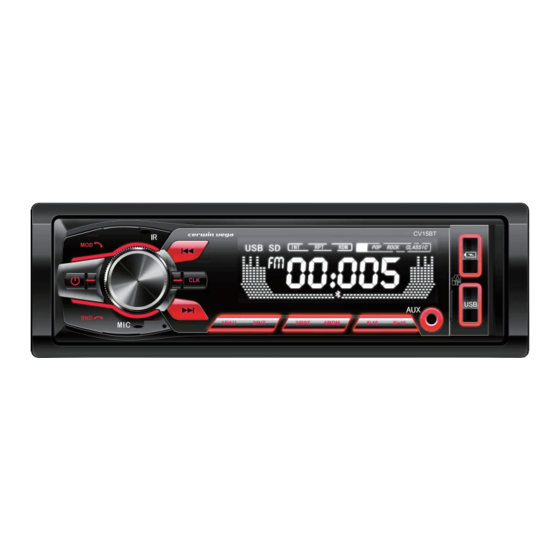

- Page 1 CV15BT 3761 South Hill St. Los Angeles, CA 90007 (213) 261-4161 BLUETOOTH MULTIMEDIA RECEIVER CERWINVEGAMOBILE.COM BLUETOOTH / USB / SD / AUX 2022 Cerwin Vega Mobile All rights reserved. OWNER’S MANUAL (a division of CV & DA Holdings, Inc.)
- Page 2 Introduction Reminders Important Reminders Cerwin Vega Mobile Radio 1. If your vehicle is exposed to direct sunlight and is subject to excessive heat in the vehicle, them you should be careful while using the device. Congratulations for purchasing Cerwin Vega Mobile Radio for your car audio system. If this receiver experiences overheating, it could cause permanent damage.
- Page 3 Operation Troubleshooting Panel Functions Troubleshooting The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist, check the connection and operating procedures. CV15BT Potential Cause / Solution Troubleshooting General Issues The position of the fader control is not set for a 2-speaker system.
- Page 4 Operation Functions Issue Potential Cause/Solution Issue Potential Cause/Solution USB Issues Bluetooth Issues This unit cannot recognize USB devices via a You cannot play items via a USB hub. USB hub. • Reduce the distance between the unit and the Bluetooth audio device. The USB device contains files with a •...
- Page 5 Installations Installations NOTE ON THE POWER SUPPLY LEAD (YELLOW): Please pay close to attention to this diagram before installing this head unit. When connecting this unit in combination with other stereo components, the amperage CV15BT rating of the car circuit to which the unit is connected must be higher than the sum of each component’s fuse amperage rating.
- Page 6 Specifications Warranty General Supply Voltage DC 12 V Current Consumption Max 10 A Power Output 4 x 50 W Number of Pre-Outs 3 Pairs (Front, Rear and Sub) Speaker Impedance 4 Ohm (W x H x D): 7” x 2” x 3-7/8” Mounting Dimensions (W x H x D): 178mm x 51mm x 98mm FM Section...
