GPS Receiver MT3318

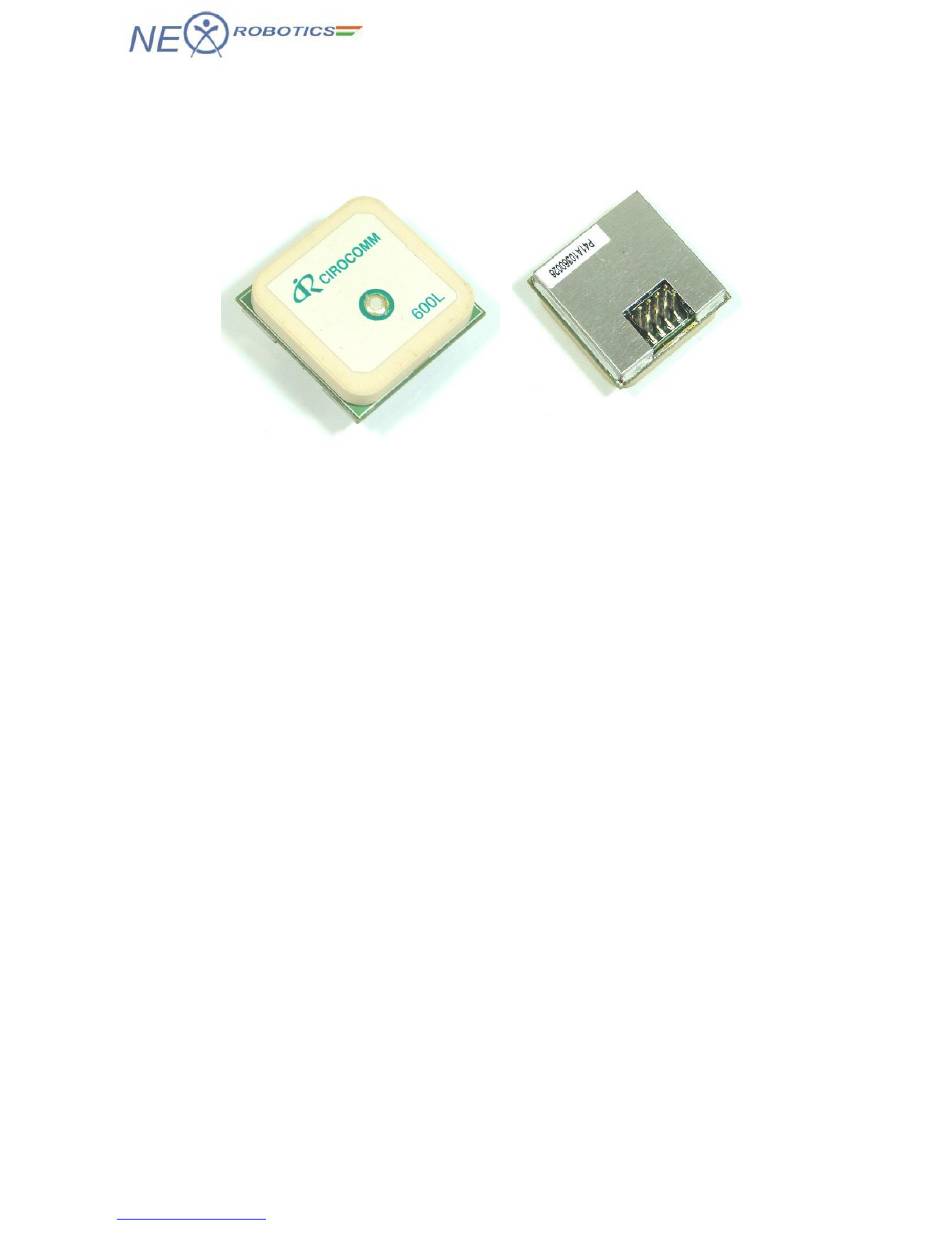

Figure 1: GPS Receiver MT3318 top and bottom view
Introduction
GPS Receiver MT3318 is based on the MediaTek MTK MT3318 chipset. It has active
patch antenna from Cirocomm. It can track 51 satellites simultaneously. This GPS
receiver gives data output in standard NMEA format with update rate of 1 second at 9600
bps. Receiver has onboard battery for memory backup for quicker acquisition of GPS
satellites. Receiver has 8 pin male berg connector with 2mm pitch. 8 pin female berg
connector comes with this GPS module for external connections.
Note: You may also require general purpose PCB with 2mm pitch for mounting the
receiver on the PCB.
Specifications
• Supply: 3.3V, 45mA
• Chipset: MTK MT3318
• Antenna: High gain GPS patch antenna from Cirocomm
• Data output: CMOS UART interface at 3.3V
• Protocol: NMEA-0183@9600bps (Default) at update rate of 1 second.
• Protocol message support: GGA, GSA, GSV,RMC, VTG
• No. of Satellite simultaneously tracked: 51
• Tracking Sensitivity: On-module antenna : -157 dBm
• Position Accuracy : <3 m
• Max. Update Rate：5Hz (Default: 1 Hz)
• Time to First Fix (Open sky and stationary position)
o Obscuration recovery: 0.1 second average
o Hot start: <1 seconds average
o Warm start: <34 seconds average
o Cold start: <36 seconds average
• Size: 26mm x 26mm x11.7mm
NEX Robotics Pvt. Ltd.
www.nex-robotics.com
GPS Receiver MT3318
1
