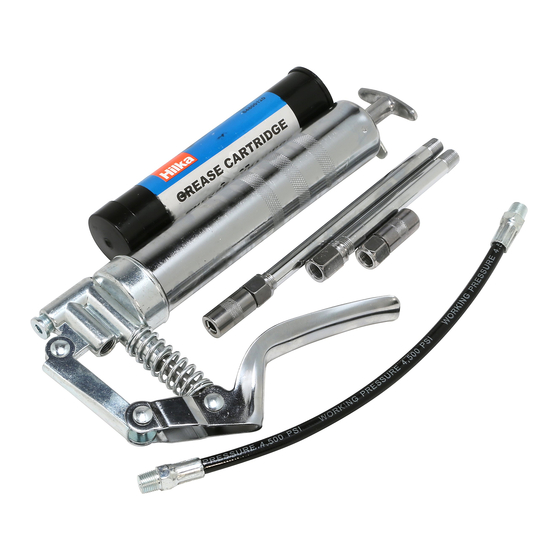

Hilka 84800120 Quick Start Manual

Pistol grip grease gun set

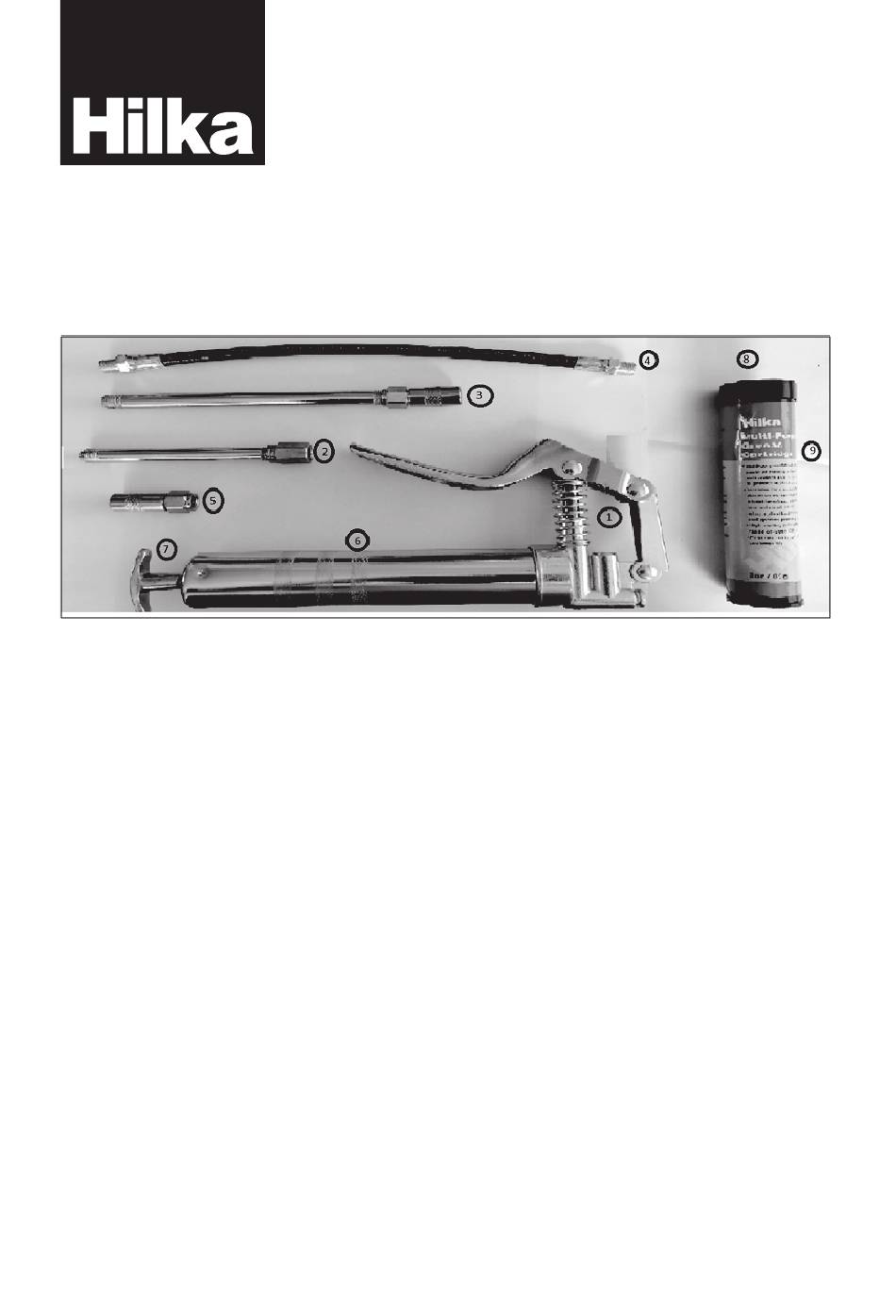

Pistol Grip Grease Gun Set

Assembly

• Screw the Outlet Pipe (2) into the Gun Head(1)

• Fit the solid extension pipe (3) to the outlet pipe(2) or the flexible extension pipe(4)

• If the Flexible Pipe (4) is to be used you will need to fit the Grease nipple coupler (5).

• Remove the barrel (6) from the Gun head (1)

• Pull back the Sprung pull rod (7) as far as it will go, (this will automatically lock in its extended

position)

• Remove the plastic cap(8) from the grease cartridge(9)

• Insert the grease cartridge(9) into the barrel

• Remove the foil seal from the cartridge top

• Refit the Barrel(6) with the fitted cartridge( back into the gun head(1)

• Release the locking lever (7) at the base of the barrel(6) this will then pressurize the grease

into the gun head

Wipe clean the grease fitting and the tip of the nozzle, connect the nozzle, and then reciprocate

the lever. If grease is charged normally, old grease is pushed out from the groove or clearance

near the fitting. For the amount of grease to charge, refer to the instruction manual for the target

machine, or charge the machine with new grease until old grease is completely pushed out.

84800120

Table of Contents

Do you have a question about the 84800120 and is the answer not in the manual?

Page 1 84800120 Pistol Grip Grease Gun Set Assembly • Screw the Outlet Pipe (2) into the Gun Head(1) • Fit the solid extension pipe (3) to the outlet pipe(2) or the flexible extension pipe(4) • If the Flexible Pipe (4) is to be used you will need to fit the Grease nipple coupler (5).
Page 2 Replacement Grease Cartridge item (9) 2 pce 3oz Grease Gun Cartridge Code 84802003 Can be purchased via Hilka web site https://hilka.co.uk If you wish to manually load the grease gun with you own type of grease, remove the empty grease Cartridge refill it and reload it back into the grease gun, Note: The grease gun requires the cartridge to function correctly.
