Summary of Contents for Promeba PB460 Series

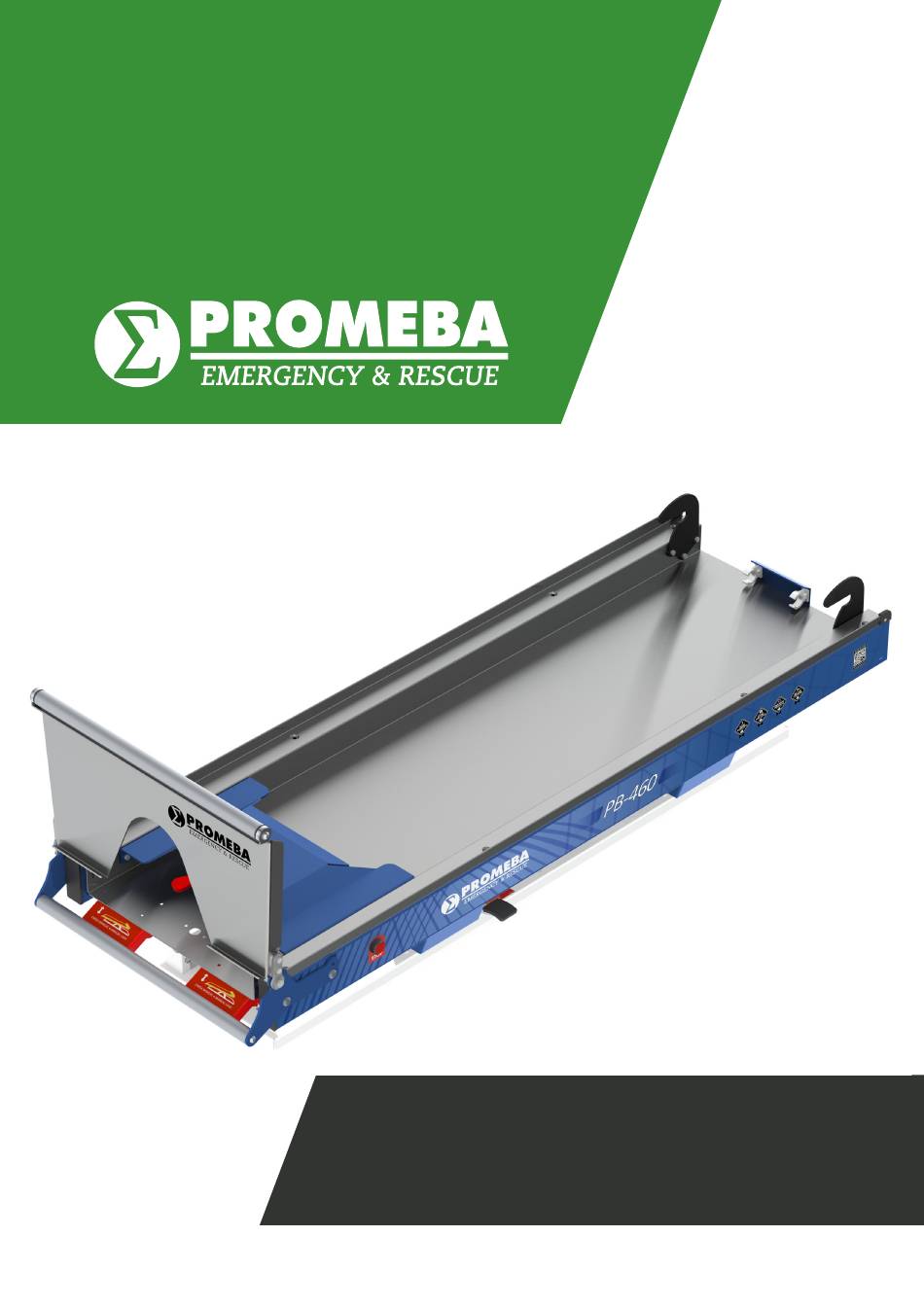

- Page 1 USER GUIDE ELECTRIC STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02...
- Page 3 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 INDEX INTRODUCTION 01.1 Using this manual 01.2 Legend of symbols 01.3 Servicing request 01.4 Demolition 01.5 Labelling 01.6 Contraindications and adverse effects 01.7 Physical requirements of the operators 01.8 Intended purpose 01.9 General warnings...
-
Page 4: Legend Of Symbols
(PRODUCTOS METÁLICOS DEL BAGÉS S.L., Ctra. C-16 Km 59.5, 08650 Sallent (Barcelona)). Indicates the manufacturer’s reference number to identify the medical device. PROMEBA, S.L. uses this symbol to set each internal reference for each configuration and business variant. Indicates the manufacturer’s serial number to identify a specific medical device. - Page 5 For information of the correct interpretation of the instruction manual, the use, maintenance, installation and restoration of the product, please contact Promeba customer service: T. 93 837 12 00, email prome- ba@promeba.com or write to PROMEBA, S.L. - Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN.
-
Page 6: Intended Purpose
This register, which will certify the eligibility of the operators to use the Promeba, S.L. device, has to be kept for a period of 10 years after the disposal of the device itself. This register will be made available to the competent authorities and/or manufacturer if requested. - Page 7 27. Promptly notify PROMEBA regarding any revisions to be made by manufacturer in order to guarantee the conformity of the product to the territory’s legal specifications (including those resulting from rules...
-
Page 8: Specific Warnings
Review 2022/02 INTRODUCTION 28. As a distributor or end users of products manufactured and/or marketed by Promeba, S.L., you are strict- ly required to have a basic knowledge of any legal requirements existing in the goods final destination country applying to the devices contained in this supply (including laws and norms regarding technical... - Page 9 26. Make sure that the scheduled maintenance has been carried out. 27. Promeba S.L. will not accept responsibilities in the case that the support is not used as described in this user’s manual 28.
-
Page 10: Residual Risks
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 INTRODUCTION 30. Do not change the load after the suspension function has been activated (if the device is provided with this function) 31. Always disconnect the electric stretcher support from the power supply during maintenance and clea- ning. -
Page 11: Reference Standards
Only the manufacturer or an authorized center can extend the life of the device, if it meets the safety requi- rements. Promeba, S.L. will not accept any responsibility for malfunction or damage caused by the use of devices that have not been checked by the manufacturer or authorized center, or that have exceeded the maximum... -
Page 13: Product Description
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 PRODUCT DESCRIPTION 02.1 Main components Nº DESCRIPTION OF COMPONENTS Locking assembly Platform assembly Ramp assembly Guide assembly The drawing is indicative. Depending on the model obtained, it may present design varia- tions according to its performance. -
Page 14: Technical Data Sheet
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 PRODUCT DESCRIPTION 02.2 Technical data sheet MODELS PB460/1 PB460/2 PB460/3 PB455 PB455/4 Length (A) 2010 ±5 mm 2005 ±5 mm 1810 ±5 mm 1880 ±5 mm 2005 ±5 mm Width (B) 630 ±5 mm 630 ±5 mm... - Page 15 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 PRODUCT DESCRIPTION 02.3 Features MODELS PB460/1 PB460/2 PB460/3 PB455 PB455/4 Trendelenburg and Anti-Trendelenburg electric movement Height adjustable 160mm electrically Rear controls for extraction and inclination of the platform Wired hand control to activate electric movement Manual side displacement by foot pedal With suspension Flat tray...
-
Page 16: Operation
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION 03.1 Transport and storage TRANSPORT WITH CRANE Before transporting the product, make sure that it is properly packed. During transportation, always secure the load. Transport the load le- veled and following all the precepts and rules for the transport of loads, also making sure that there are no risks of bumps or falls du- ring the transport itself. - Page 17 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION - The state of the springs - That the welds are intact, without cracks or breaks. - That there are no tubes or metal sheets that have bends or cracks. - Make sure that the vehicle in which you want to install the device is manufactured in accordance with EN 1789 standard.
- Page 18 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION STRETCHER SUPPORT PB460/3 ANCHORAGE (10 anchor points) 367,5 367,5 STRETCHER SUPPORT PB455 ANCHORAGE (10 anchor points) 362,5 362,5 STRETCHER SUPPORT PB455/4 ANCHORAGE (10 anchor points) 362,5 362,5...
- Page 19 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION 03.2.2 CONNECTION TO THE ELECTRIC GRID To make the electrical connection of the stretcher support in the ambulance, follow these steps: 1. Locate the black cable placed on the front of the stretcher support (according to the direction of the ambulance) 2.
- Page 20 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION The table below shows the combinations of buttons to carry out the different commands of the program- ming remote control (see figure 4). Button Function Description Keep buttons 1+3 pressed simulta- neously.
- Page 21 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION LOAD POSITION: The platform is extracted and tilted by lowering the rear end of the stretcher support to be able to carry out the loading or unloading operation of the stretcher correctly. ZERO POSITION: The stretcher support moves until it is completely horizontal.
- Page 22 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION 03.3.2 EMERGENCY STOP BUTTON There is an emergency button located on the back of the right side of the stretcher support. Press it in case an emergency stop is required during any of the automatic movements of the bed. 03.3.3 LOADING AND UNLOADING OPERATION To carry out the loading or unloading operation of a stretcher, you must locate the two levers placed at the back of the stretcher support (depending on the direction of the ambulance) or the hand control.
- Page 23 USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION 03.3.5 SCOOP STRETCHER FIXATION (ONLY FOR PB460/1, PB460/3 AND PB455) The PB460/1, PB460/3 and PB455 stretcher supports have accommodation for a scoop stretcher. Follow the steps below for proper attachment and removal: To place it, the scoop stretcher must be slid upside down on the base tray.
-
Page 24: Electric Diagram
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION 03.4 Electric diagram 03.4.1 COMPONENTS ELECTRIC DIAGRAM Nº Reference Units Description PB4620-05270 Electronic box with 12V current input cable PB4620-05250 Extension cable for motors connection PB4620-05240 Motor connection cable PB4620-05260 Extension cable for microswitches, emergency stop and controls connection PB4620-05310... -
Page 25: Troubleshooting
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 OPERATION 03.4.2 WIRING LINES SERIE PB460 SERIE PB455 03.5 Troubleshooting PROBLEM CAUSE SOLUTION Take the stretcher support out of service imme- Structural damage Improper use or operators not properly trained diately and contact the technical service Replace spring. -
Page 26: General Maintenance
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 GENERAL MAINTENANCE CLEANING It is essential to keep the equipment clean to ensure a proper use and durability of the set. A thorough clean must be done periodically, especially in areas exposed to dirt that may be damaged such as gears or mobile elements. -
Page 27: Spare Parts And Accessories
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 SPARE PARTS AND ACCESSORIES To request a spare part, indicate: Nº DESCRIPTION OF COMPONENTS - Model of stretcher support that needs the replacement - Number and description of the set in which the needed Locking assembly part is located (see table on the right) Platform assembly... -
Page 28: Training Register
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 TRAINING REGISTER The product must be used by trained personnel only, having attended specific training for this device and not for similar products. Keep this document at least 10 years from the end of life of the device. NAME OF THE PLACE AND DATE NAME OF TRAINER... -
Page 29: Maintenance Register
USER GUIDE // STRETCHER SUPPORT SERIES PB460 AND PB455 Review 2022/02 MAINTENANCE REGISTER Perform the required maintenance as indicated by the manufacturer in this user’s manual. Keep this document at least 10 years from the end of life of the device. TYPE OF SERVICE PERSON IN CHARGE OF DATE... -
Page 30: Legal Notices
Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make any modifica- tion or improvement in the products described in this publication if it is appropriate. -
Page 31: Product Warranty
Periodic maintenance and repair or replacement of mitted by applicable law. parts derived from normal wear and tear. The only obligation on the part of Promeba, S.L. in con- b) Expendable material (components that are expected nection with this warranty is to repair or replace parts to need periodic replacement during the life of the pro- subject to the terms and conditions of this warranty. - Page 32 Todos los derechos reservados. Reservado el derecho ha modificaciones sin previo aviso. Promeba, S.L. no se considera responsabe de los daños causados por la falta o la inexactitud de la información aquí mencionada. All rights reserved. Variations can be done whitout notice.
