Cornwell Tools MMWC3 Owner's Manual

Welding cart & cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

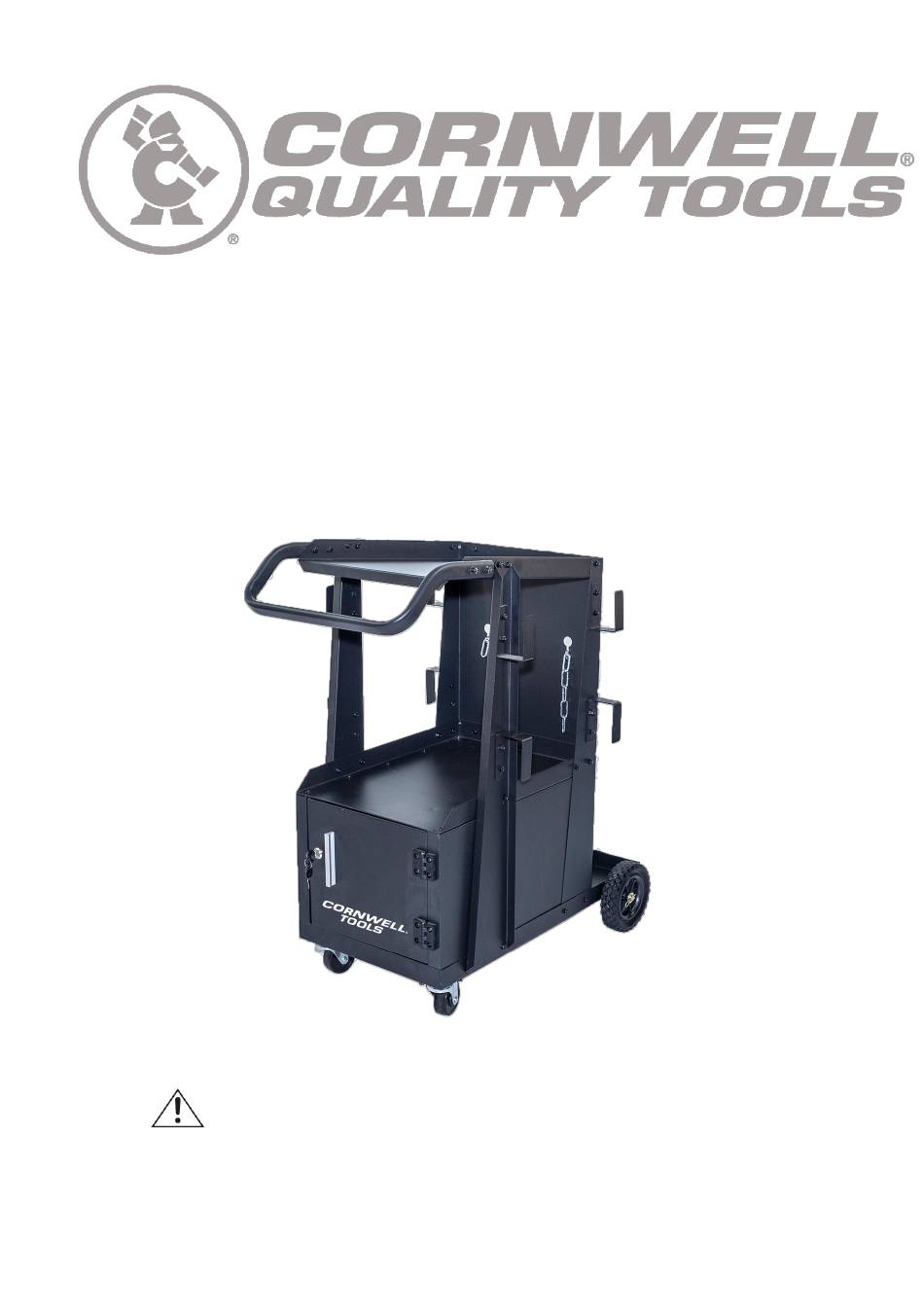

MMWC3 WELDING CART
& CABINET
OWNER'S MANUAL
11/2020
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMWC3 and is the answer not in the manual?

Questions and answers

Related Manuals for Cornwell Tools MMWC3

Summary of Contents for Cornwell Tools MMWC3

  • Page 1 MMWC3 WELDING CART & CABINET OWNER’S MANUAL 11/2020 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

  • Page 2: Warranty

    WARRANTY Cornwell Quality Tools EFFECTIVE JANUARY 1, 2013 LIMITED WARRANTY This warranty applies to the original purchaser and is subject to the terms and conditions listed below. This Limited Warranty is for new equipment sold after the above date, providing coverage for defects in material and workmanship at the time it is shipped from the factory.

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this Flux Core 125 until they have read this manual and have developed a thorough understanding of how the Flux Core 125 works.
  • Page 4 -Do not allow any body part to come in contact with the welding wire if you are in contact with the material being welded, ground or electrode from another welder. -Do not weld if you are in an awkward position. Always have a secure stance while welding to prevent accidents.
  • Page 5 your eyes and skin. Do not look at the welding arc without proper eye protection. -Always use a helmet that covers your full face from the neck to top of head and to the back of each ear. -Use a lens that meets ANSI standards and safety glasses. For welders under 160 Amps output, use a shade 10 lens;...

  • Page 6: Specifications

    Electromagnetic Field -Electromagnetic fields can interfere with various electrical and electronic devices such as pacemakers. -Consult your doctor before using any electric arc welder or cutting device -Keep people with pacemakers away from your welding area when welding. -Do not wrap cable around your body while welding. -Wrap MIG gun and ground cable together whenever possible.
  • Page 7 DESCRIPTION The Cornwell Quality Tools MMWC3 Cart & Cabinet is a great way to organize your welding tools. The top shelf has ample space for most brands of welders. The shelf is 34 inches off the floor putting your welder at a good working height. The slight backwards slope gives the operator easy view of the welder controls.
  • Page 8 ASSEMBLY For Assistance with component identification, please refer to the parts drawing. 1. Place the base panel (Item 13) on a sturdy surface with the side lips facing up. Place the Vertical Cylinder Securement Panel (Item 25) inside the base panel and align the mounting holes in the base panel with the mounting holes in the Vertical Cylinder Securement Panel.
  • Page 9 4. Repeat Steps 2 and three to secure the Right-Side Cabinet Panel (Item 22) and the Right-Side Vertical Panel (Item 24) to the assembly. 5. Place the Right-Side Cabinet panel (Item 22) into the assembly and align mounting holes with the Vertical Cylinder Securement Panel (Item 25).
  • Page 10 9. Find the left side panel of the cabinet (Item 6). Align the pre-drilled holes in the lip of the left side panel (Item 6) with the pre-drilled holes in the base of the cabinet (Item 13). The holes in the front of the cabinet base are where the casters will attach.
  • Page 11 ASSEMBLY (Continued) 18. Going up the vertical cylinder securement panel (Item 25), align the pre-drilled holes in the left side with the pre-drilled holes in the lip of the middle shelf (Item 5). Secure each mounting hole with a 10 mm bolt and a nut.

  • Page 12: Diagram & Parts List

    DIAGRAM & PARTS LIST Page of 14...
  • Page 13 Reference # Part# Description Qty. 105100109 TOP SHELF 105100110 HANDLE 105100111 LEFT SIDE VERTICAL PANEL 105100112 CABLE WRAP 105100113 MIDDLE SHELF 105100114 LEFT SIDE CABINET PANEL 105100115 PLASTIC HINGE 145100004 DOOR 105100027 LOCK SET 105100026 DOOR HANDLE 105100116 PHILLIPS HEAD BOLT M5*16 11.1 105100046 FLAT WASHER M5...
  • Page 14 CORNWELL QUALITY TOOLS COMPANY 667 SEVILLE RD WADSWORTH OH 44281-1077 Made in China Page of 14...
