Summary of Contents for jcm-tech BLUE PAD

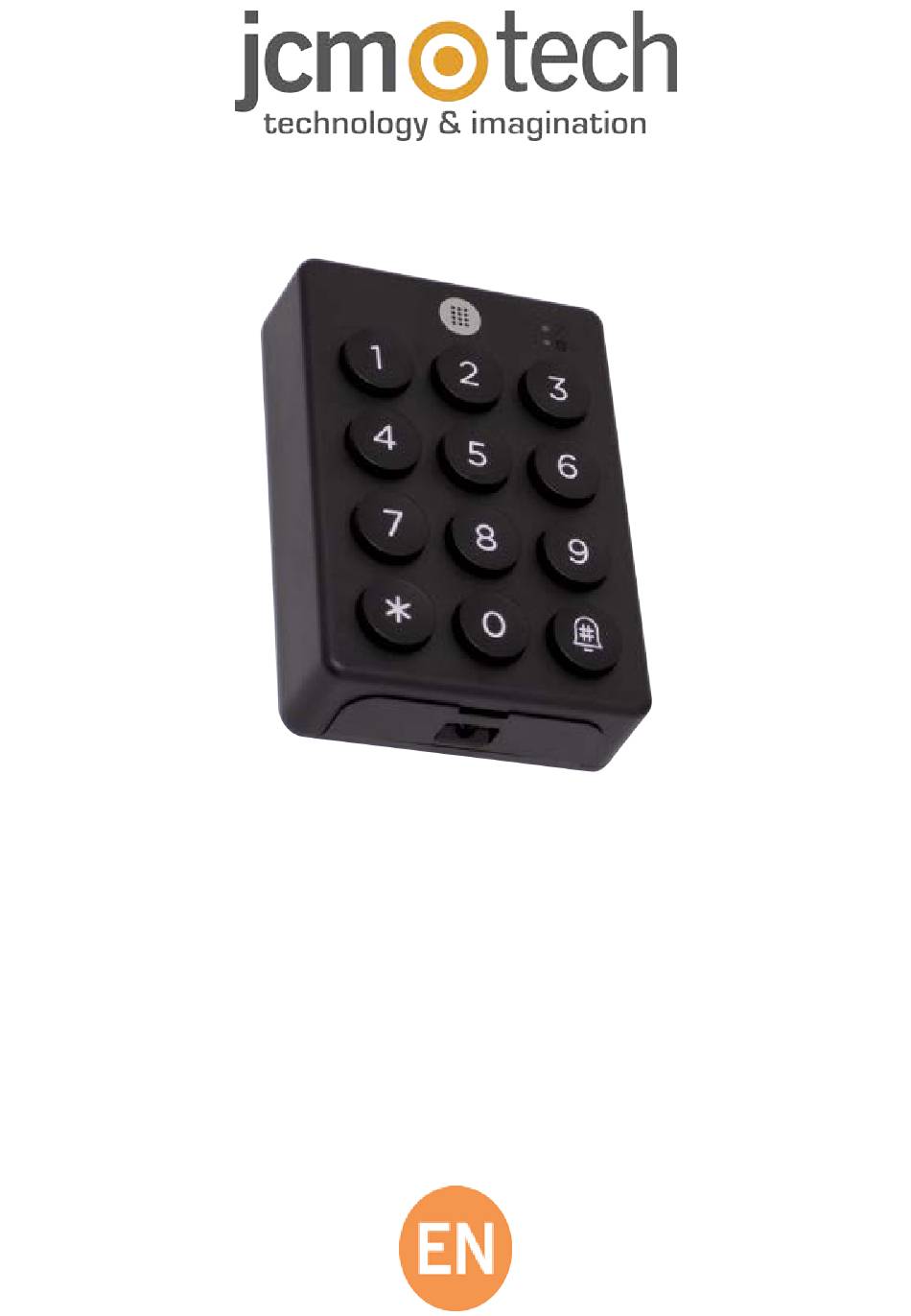

- Page 1 BLUE PAD User Manual...
-
Page 2: Table Of Contents
Table of contents Introduction Accessories Installation Batteries Configuration Pairing the keyboard Generating codes Managing codes Operating Maintenance Unpair the keyboard Reset to factory settings Solving problems FAQs Note Technical Data Use of the equipment Regulatory Data EU Declaration of conformity jcmtechnologies... -
Page 3: Introduction
Introduction BLUE PAD is a wireless keyboard used to activate a BLUE OPENER or BLUE OPENHAND device via Bluetooth. You may view device operation and installation videos at:www.jcm-tech.com/JCM/blue jcmtechnologies... -
Page 4: Accessories
Accessories Keyboard x 1 Mounting plate x 1 Double-sided adhesive tape x 1 Screws x 2 Wall plugs x 2 jcmtechnologies... -
Page 5: Installation
Installation •If the mounting surface is flat and smooth, please use the double-sided tape to affix the keyboard. In this case, the mounting plate is not necessary. •If the mounting surface is not suitable or you wish to install the mounting plate, follow the instructions below: Mark the position of the holes required by the mounting plate on the wall and drill the holes according to these marks. -
Page 6: Batteries
Batteries Remove the screw, press the release-tab and then remove the bat- tery holder from inside. Insert four AAA type batteries into the holder, noting the correct polarity, and then place the battery holder back into the keyboard. Replace the screw. jcmtechnologies... -
Page 7: Configuration
Configuration Pairing the keyboard Once successfully installed, the equipment needs to be con- figured. In the "Blue Open" app, select the configuration button for the BLUEOPENER or the BLUEOPENHAND that you want to activate with the BLUEPAD and press "Wireless keypad". If the device has not been paired before, press any key to activate If the device has already been paired, type *529# to activate pair- ing mode. -
Page 8: Generating Codes
Generating codes Once the keyboard is connected, you can generate codes to activ- ate the paired BLUE OPENER or BLUEOPENHAND. In the "Blue Open" app, select the BLUEOPENER or BLUEOPENHAND configuration button linked to the BLUEPAD and press "Custom passcodes". Start date and end date: You can set the start date and end date, but only in Temporary mode. -
Page 9: Managing Codes
Managing codes When one or more codes have been generated, they can be man- aged. In the "Blue Open" App, select the BLUEOPENER or BLUEOPENHAND configuration button linked to the BLUEPAD and press "Manage passcodes". The app will show the list of active codes. A code can be deleted by clicking on the trash can icon. -
Page 10: Operating
Operating Enter a code followed by "# " on the BLUEPAD. If the code is correct, the LED will turn green for 2 seconds and the unit will emit a long beep. The paired BLUEOPENER or BLUEOPENHAND device will be activ- ated. -
Page 11: Maintenance
Maintenance Unpair the keyboard In the "Blue Open" app, select the configuration button of the BLUEOPENER or of the BLUEOPENHAND paired to the BLUEPAD and press and hold "Wireless keypad". When asked to disconnect, press "YES". Reset to factory settings Remove the back of the keyboard case. -
Page 12: Solving Problems
Q: I can't set up my BLUE OPENER / BLUE OPENHAND A: Only the owner of the BLUEOPENER or BLUEOPENHAND can set the devices to open with the BLUE PAD. Q: How many codes can be generated? A: Up to 150 codes... -
Page 13: Note
Note jcmtechnologies... - Page 14 Note jcmtechnologies...
- Page 15 Note jcmtechnologies...
-
Page 16: Technical Data
No liability can be accepted for errors and misprints. Regulatory Data EU Declaration of conformity The manufacturer OMNITEC SYSTEMS S.L. declares that the product BLUE PAD complies with the relevant fundamental requirements of the RED Directive 2014/53/EU and of the RoHS Directive 2011/65/EU. See website https://www.jcm-tech.com/declarations/ OMNITEC SYSTEMS S.L.
