Summary of Contents for marsden PT-500

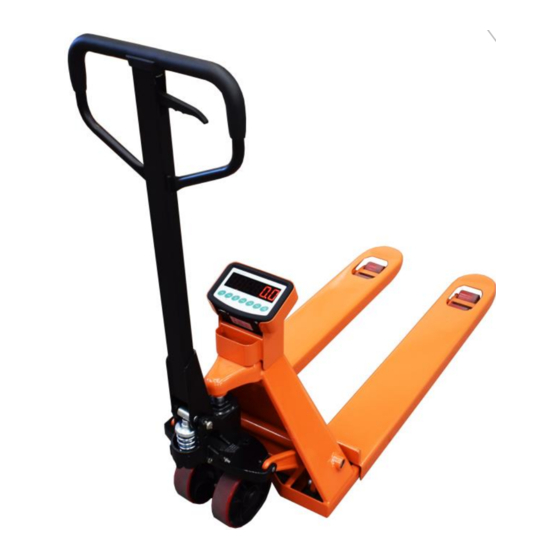

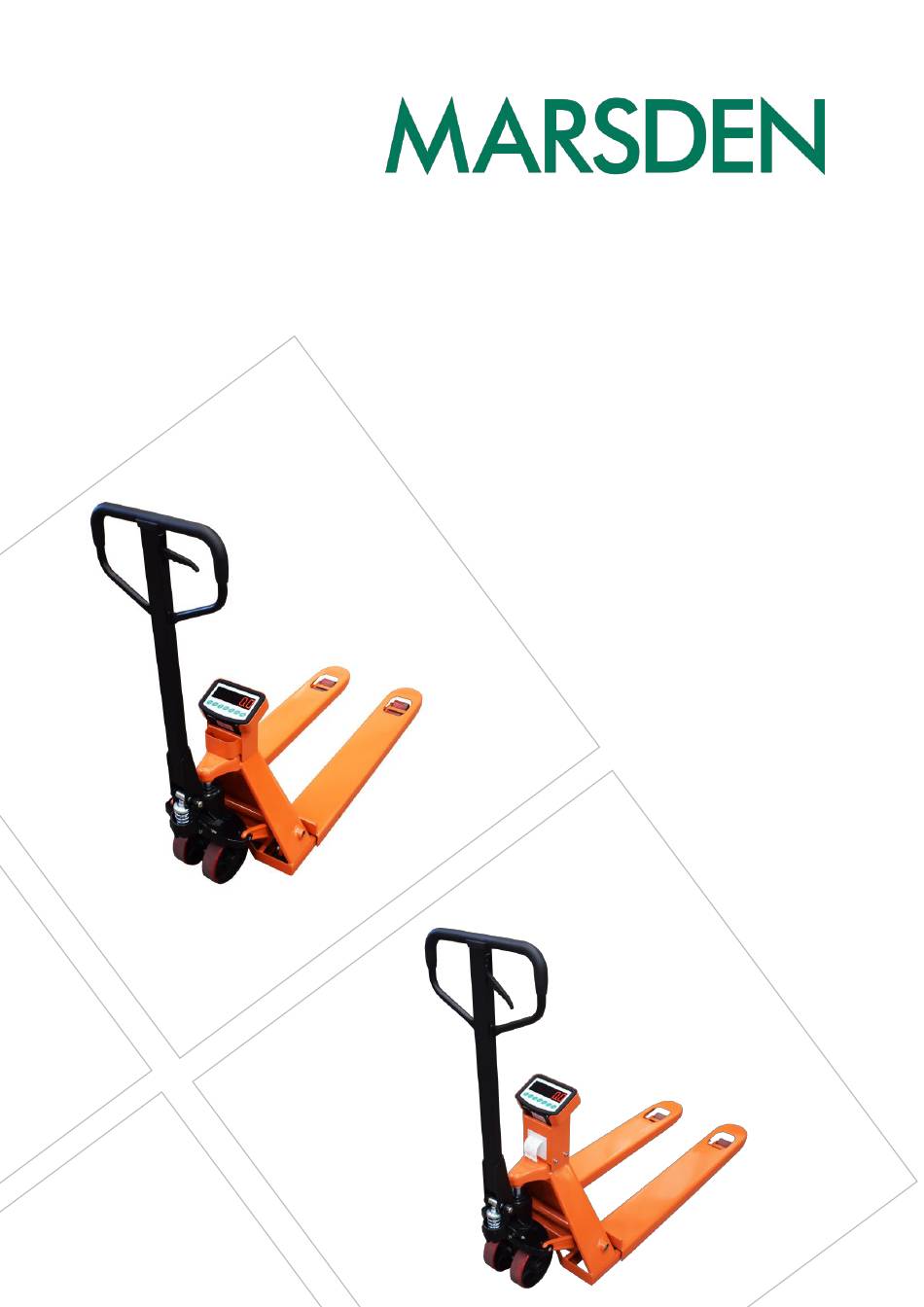

- Page 1 USER MANUAL PT-500 PT-600 Please take time to read these instructions before starting to use the scale Version 1.0 09/06...
-
Page 2: Table Of Contents
Contents Technical specification Dimensions Function keys Operation Using the printer Setting power save modes Print formats Charging the scale Replacing the printers tally roll Error messages Page 2... -
Page 3: Technical Specification
-10˚C - 40˚C Operating Temperature Weight, count, net weight, gross Print Output (PT-600 only) weight, tare weight, accumulation Please note: Marsden’s policy is one of continuous development and therefore we reserve the right to change product specification without notice. Page 3... -
Page 4: Dimensions
Dimensions Page 4... -
Page 5: Function Keys
Function keys Hold of weight function Hold Hold of weight reading on the indicator screen Accumulation function Total Add up multiple separate weights Units conversion function Lb/Kg Switch between weight displayed in kg and lb Tare function cancel key Gross Cancel a previously entered tare weight Tare function... -
Page 6: Operation
Operation Switching on the scale Press and hold the PRINT/ON/OFF button for three seconds. The display will show ‘0.00’ once the scale is ready to begin weighing. Using Hold If an unstable weight on the scale causes fluctuations in the weight display, press the HOLD button and the indicator will ‘lock’... - Page 7 Switching to Counting mode To count items on the scale, first place a sample quantity on the scale. Switch the indicator to count mode by pressing TOTAL, and holding the button until ‘SAMPLE’ is displayed. Press PRINT/ON/OFF. ‘PCS’ will display on the screen. Use the LB/KG keys for left and right and TARE and ZERO as up and down to input the sample size.
-
Page 8: Using The Printer
Using the printer (PT-600 only) Whether you are in counting or weighing mode, pressing PRINT/ON/OFF will produce a printed report. However, the information printed can be changed depending on your needs (see over for print-out examples). To print a single weight only With nothing on the scale press and hold HOLD until ‘F1’... -
Page 9: Setting Power Save Modes
Setting the screen time out function To save battery power, the indicator’s display can power down after a set period of time. To set the time out function, with the indicator switched on and nothing on the scale press and hold HOLD until ‘F1’... -
Page 10: Print Formats
Print formats Page 10... -
Page 11: Charging The Scale
Charging the scale The PT-500 and PT-600 are supplied with a 7v 100ma tip +ve adaptor, which plugs directly into the indicator. Please allow eight hours for the internal rechargeable battery to reach full charge from flat. Replacing the printer’s tally roll (PT-600 only) Replacing the tally roll on the PT-600’s is easy. -
Page 12: Error Messages
Invalid operation EEPROM error Switch the scale on again; if the error message still shows, contact your dealer/Marsden AD initialization error Switch off the scale and restart. If the error occurs again, contact your dealer/Marsden Page 12... - Page 13 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk www.marsden-weighing.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk...
