Summary of Contents for DUSTER 3000 DOWNDRAFT

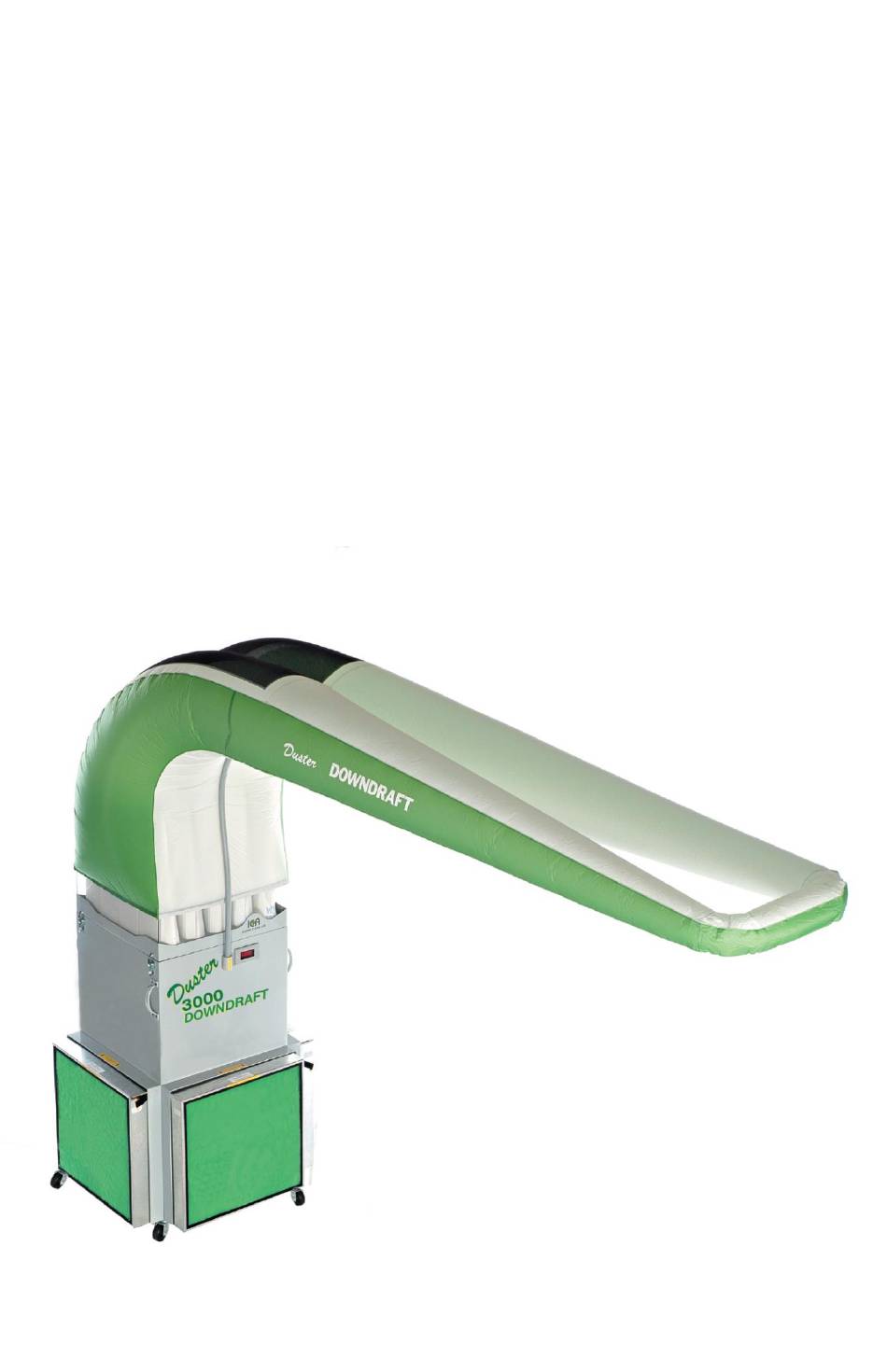

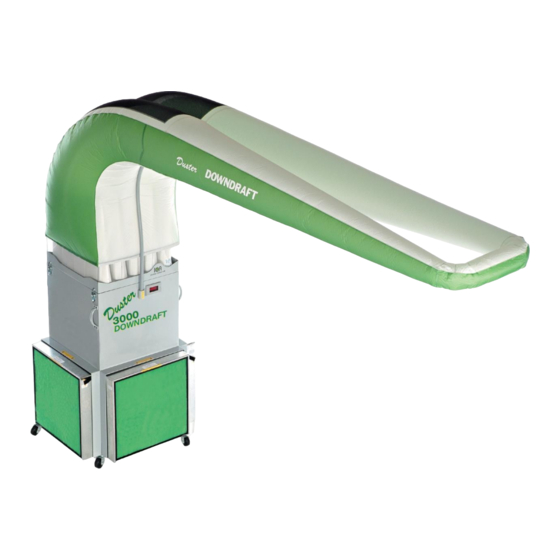

- Page 1 Operations & Maintenance Manual IMPORTANT READ BEFORE OPERATING MACHINE! Duster 3000 DOWNDRAFT Model 00301 Mobile Prep Station...
-
Page 2: Parts Diagram
Parts Diagram Parts List 1: Housing Assembly 11: Top Filter Neoprene Seal 2: Lexan Shroud 12: Intake Filter Seals 3: Power Cord 13: Stage 4-Viledon Top Pocket Filter 4: Motor 14: Stage 1- -Filter Pad 5: Blower 15: Stage 2- Pleated Intake Filter 6: On/Off Power Switch 16: Stage 3-... - Page 3 Step 1: Uncrate the Duster 3000 Downdraft wooden panels with a #2 Philips screwdriver or power tool. Remove box with filters and roll the Duster 3000 Downdraft off the skid. Remove the plastic bag. Remove gray PVC support from the rear of the Duster 3000 Downdraft and insert into the support holder located in the center of the front panel.
- Page 4 Step 4: Get Your Workspace Ready Wear proper protective breathing apparatus when performing this task. Using the Duster 3000 Downdraft for the first time will dislodge dust that has already settled in the immediate area (light fixtures, support beams, etc.) We recommend cleaning the surrounding area before working on anything that may be affected by airborne dust.
- Page 5 Each ICA filter has been engineered to provide maximum filtration with calibrated velocities to capture harmful airborne particulates. Using non-ICA branded filters in the Duster 3000 Downdraft will: not seal properly, impede airflow, jeopardize system, and void the warranty. *** Proper Cleaning & Maintenance Will Prolong Filter Life *** Stage 1: Green Pre-Filter Pad (Part #11703) Filters dust and paint overspray.
-
Page 6: General Maintenance
Once a year, we recommend a general cleaning by removing all filters and using compressed air to blow out any accumulated dust on and in the Duster 3000 Downdraft. The metal surfaces can be wiped with warm water and detergent, avoiding the electronic components. -
Page 7: Troubleshooting
Troubleshooting The Duster 3000 Downdraft is designed to run when connected to an adequate power supply and with all filters installed and cleaned. Most issues can be solved by: Ensuring adequate power is supplied to the unit (15A at 110V). We highly suggest using an isolated circuit so that the unit does not have to share power with other equipment. - Page 8 ISLAND CLEAN AIR INC. #101 - 326 E. Kent Avenue South Southbridge Business Park, Vancouver, BC, V5X 4N6, Canada Tel: (604) 322- -8674 www.islandcleanair.com Committed to Green ATEX Approved CSA Certified Air Resources Board Printed in Canada Specifications subject to change without notice March 2021...
