Summary of Contents for Bg ZB500S

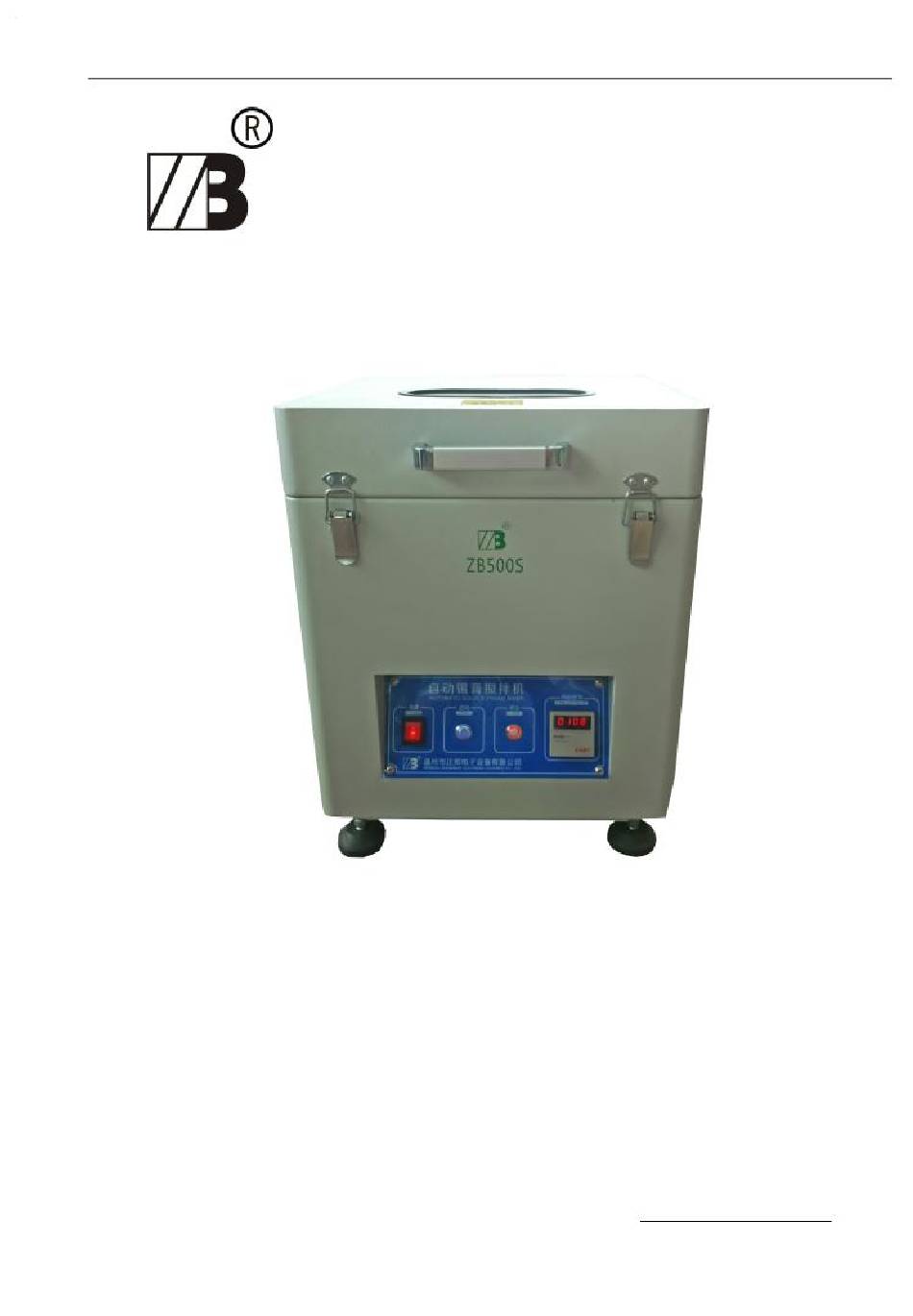

- Page 1 User Manual of Solder Cream Mixer ZB500S Automatic Solder Cream Mixer User Manual...
- Page 2 I. Overview ZB500S Automatic Solder Cream Mixer makes solder cream move downward constantly through centrifugal force generated by revolution and cooperation with energy from rotation at 45 degree angle of axis of revolution. Solder cream located in the tank bottom makes upward movement from the surrounding, which forms a tornado-funnel shaped stirring action, and it can stir, soften and defoam the solder cream with appropriate viscosity.
- Page 3 User Manual of Solder Cream Mixer II. Technical parameters Type ZB500S Operating Motor speed: 1350RPM speed One revolution: 400RPM; Two rotations: 300RPM Operational 0-1000 g * 2 tanks capability Tank diameter Φ60-Φ67 standard configuration (suitable Acceptance of solder cream for general 500 g solder cream bottle) Other specifications, please contact us for customization.
- Page 4 User Manual of Solder Cream Mixer IV. Installation and debugging 1. Remove the packaging, read this manual carefully. Both hands hold the base to lift the host in right direction, put host well onto solid and smooth ground. 2. Open the lock, open machine cover, run revolution-running device clockwise by hand, fixture of solder cream pot should make corresponding rotation movement at the same time.
- Page 5 User Manual of Solder Cream Mixer Step3: Put solder cream and balance weights into solder cream pot (remarks: if we mix 2 bottles of solder cream at the same time, we can cancel balance weights). Step4: Cover machine cover and lock machine lock. Step5: Set reference of mixing time at 15 minutes (remarks: H-hours, M-minutes, S-seconds in time relay), set to 15M00.
- Page 6 User Manual of Solder Cream Mixer Step6: Turn on the power supply, open the power supply switch, boot device to begin mixing. 开启电源 open the power supply 启动设备 boot device Step7: When mixing time is over and mixing head stops rotating, press stop button, turn the power off and remove the solder cream.
- Page 7 User Manual of Solder Cream Mixer 3. Before starting of machine, please make sure that there is no tool, gloves or other items in the machine, solder cream pot is placed correctly and weight difference on both sides of operation unit is not more than 50 grams, otherwise it will cause violent vibration of machine and lead machine damage in operation.
