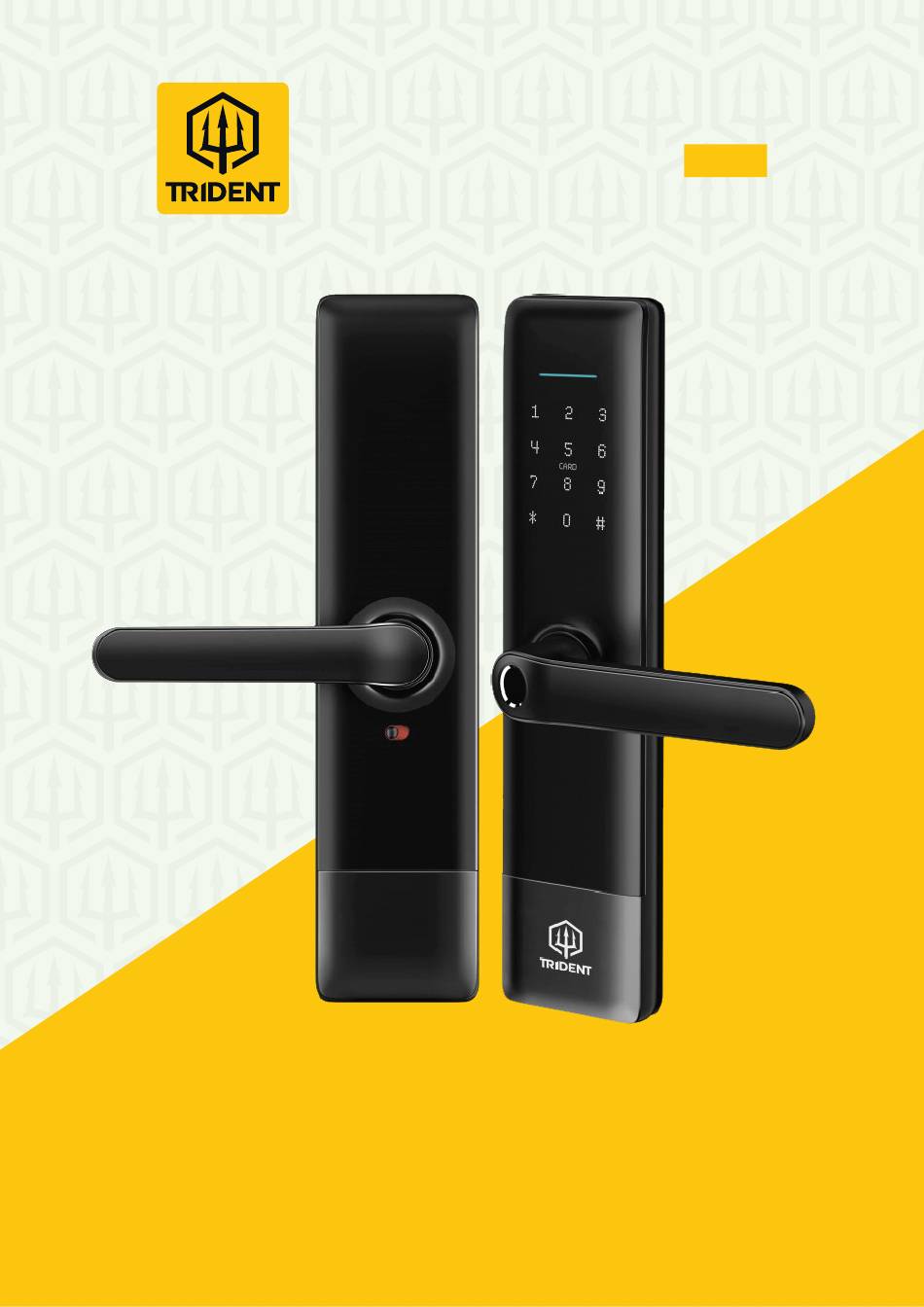

ARTHUR
PRO
User Manual
Special Attention:
• Mechanical keys please keep outdoor, just in case keys lock in doors.
• Please replace for the battery when low wattage alarm.
• Reading this manual carefully before installation, and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTHUR PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Trident ARTHUR PRO

Summary of Contents for Trident ARTHUR PRO

  • Page 1 ARTHUR User Manual Special Attention: • Mechanical keys please keep outdoor, just in case keys lock in doors. • Please replace for the battery when low wattage alarm. • Reading this manual carefully before installation, and keep it for future reference.

  • Page 2: Packing List

    TRIDENT - SMART DIGITAL DOOR LOCK 1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Panel Mortise Screws:M5*10mm (For Aluminum Door) Back Panel Mortise Screws:M4*20mm (For Wooden Door)

  • Page 3: Specifications

    TRIDENT - SMART DIGITAL DOOR LOCK 1.3.Specifications Suitable for Doors Aluminum door H2-TTB Models Applicable Wooden door Working Aluminum alloy Materials 6V/4x AA Batteries Voltage Door Thickness Lock Weight 35-65mm to Fit Bluetooth Fingerprint(option) Fingerprint 200 Unlocking Password Data Capacity...

  • Page 4: Installation

    TRIDENT - SMART DIGITAL DOOR LOCK 2.Installation 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door. 1700 81 6584 | www.digitallock.com.my...
  • Page 5 TRIDENT - SMART DIGITAL DOOR LOCK Installation Diagram(For 5572) 2.2. Step 1 Install Mortise Step 2 Install Sliding Screw Casing Step 3 Install Back Panel and link wire Step 4 Install fixing screws Step 5 installation complete 1700 81 6584 |...

  • Page 6: Operation

    TRIDENT - SMART DIGITAL DOOR LOCK 3.Operation 3.1.Registration software (iOS version) downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 3.2. Connect lock to the phone...

  • Page 7: Setting Passcode

    TRIDENT - SMART DIGITAL DOOR LOCK 3.4.User Management 3.4.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " "to unlock.(the phone is within 5meters from the door lock) 3.4.2.
  • Page 8 TRIDENT - SMART DIGITAL DOOR LOCK 3.4.4.Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be perform ed by the app beside the lock.The validity period of the IC can be set, it can be per manent, or it can be limited in time.

  • Page 9: Add Gateway

    TRIDENT - SMART DIGITAL DOOR LOCK 3.5. Gateway management(Optional) The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record.
  • Page 10 TRIDENT - SMART DIGITAL DOOR LOCK 4.FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can’t I unlock it after open the You need to perform an unlock verification in passage mode any method, than the passage mode will take effect.
  • Page 11 TRIDENT - SMART DIGITAL DOOR LOCK Guarantee Customer Name Customer Calls Purchase Date Product Name Product Model Note: Please keep this card so that you can use it when you need warranty service. We provide you with a one-year warranty from the date of purchase.
