Summary of Contents for Home Zone Security ES06565G

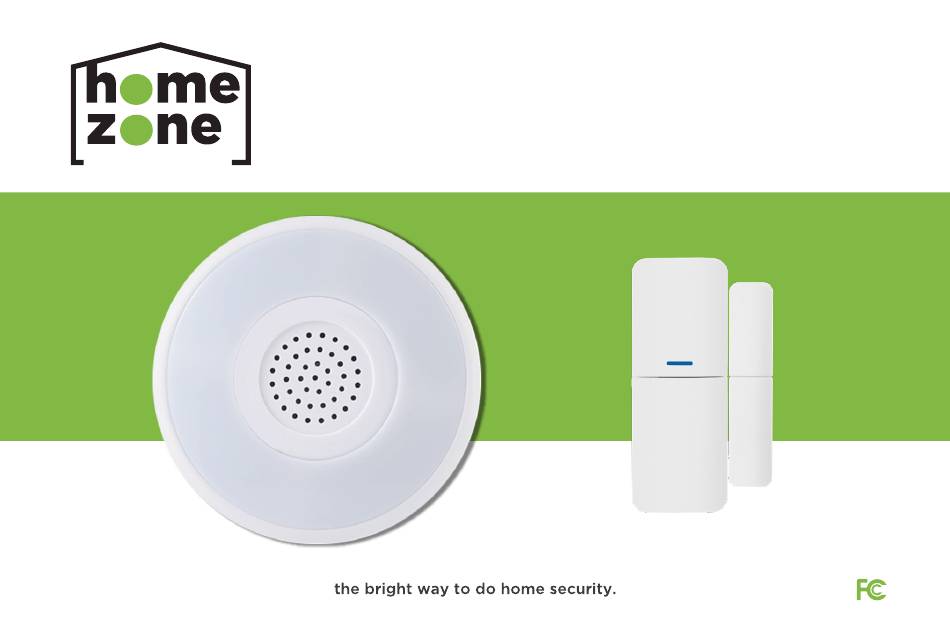

- Page 1 Smart Wireless Door Sensor and Security Alarm Kit s e c u r i t y...
-
Page 2: Contact Sensor
Contact Sensor Say hello to Alarm. Alerts you when a door or a window is opened. A contact sensor works using a sensor and a magnet. Once the contact sensor is triggered, it will send an alert to the user via the gateway. Siren Base Station The gateway of the Alarm system. -
Page 3: What's In The Box
What’s in the box Sirenx1 Contact sensorsx5 User manualx1 Adapterx1 USB cablex1 Double-sided tape x 5sets Round Double-sided tape x 1pc... -
Page 4: General Information
General Information The siren gateway can allow users to update and manage the alarm system via internet and Home Zone Smart APP. Main Features • Know which contact sensor is triggered • Manage and monitor the alarm system remotely • Built-in 120dB siren. Sound volume can be managed by APP. •... -
Page 5: System Overview
System Overview Power on/off switch Charging port Reset button LED indicator LED indicator flashes quickly (2 times per second): Siren is in Wi-Fi configuration mode LED indicator flashes slowly (once every 2 seconds): Siren is in AP pairing mode Note: Pressing and holding the Reset button will reset the Wi-Fi configuration. - Page 6 Connect Download Home Zone Smart App is available for both iOS and Android OS. Search the name 'Home Zone Smart' in the App Store or Android Market. Set up Router This device only supports 2.4GHz frequency and does not support 5GHz. Please ensure router is set for 2.4GHz band before connecting your device to router.
-
Page 7: Registration Process
Registration process Step 1 : Open the Home Zone Smart APP, click "Register", read the "Privacy Policy" and click "Agree". s e c u r i t y Step 2 : Input a valid Email address and click "Continue". Input Verification Code, then log in the App... - Page 8 Set up your Siren Base Station. The Siren Base Station can bridge all of your contact sensors and Send alert notice through the APP to your mobile device if you have activated the alarm kit. Place your Siren Base Station in a central location in your house. DO NOT install it on the floor. Use the included USB power cable and adapter to connect the Siren base station to power outlet.
- Page 9 Add Siren Base Station to Home Zone Smart App. 1. Launch the app and tap the Plus ( + ) in the upper right 2. Select Security Alarm.
- Page 10 3. Choose your Wi-Fi network and Enter the password. Make sure that upper right shows “EZ mode” and then press “Next”. Once the adding process is completed, press “Done”.
- Page 11 Setup Contact Sensors 1. Connect In the app, tap Accessories at the bottom to set up the contact sensor. Tap Sensors and then tap (+ Add), Pull out the battery tag and line up the You will hear beeping sound from siren. Contact Sensor (sensor and magnet) Now separate the Contact Sensor as shown in Fig.2.
- Page 12 Setup Contact Sensors 2. Configure Choose where to install the contact sensor. Tap Sensor, then tap pen icon to edit the sensor name. You can give the sensor a specific name describing the location of the sensor.
- Page 13 Contact Sensor These contact sensors contain (1)23A 12V Alkaline battery. When the battery expires, it 3.Install must be disposed of properly. Please contact your local waste disposal authority for correct Use the double sided tape to fix your Contact Sensor to procedure.
- Page 14 Understanding Entry & Exit Delay Exit Delay gives you a set window of time to leave your house once you’ve armed the alarm system. You’ll hear a beeping sound to remind you that there is a set time window to exit your house and close the door.
- Page 15 How to Share with Family Users icon and then tap Share Device, Select Add Sharing to add users’ account you would like to share device access.( Shared users must create a Home Zone Smart APP account in advance.)
- Page 16 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with FCC Part 15 of FCC Rules.
- Page 17 s e c u r i t y...
