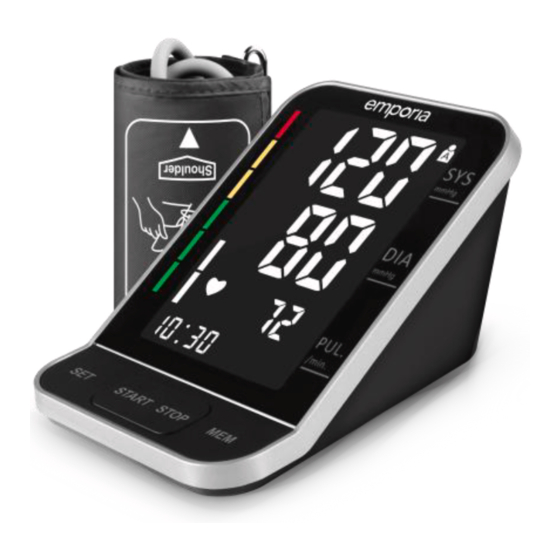

- Page 1 USER MANUAL Digital upper arm bloodpressure monitor with spoken voice announcement Medical device - Class II A · Art. Nr.: BPM-V10-B · Modell: B51...
- Page 2 Model: B51 › THANK YOU for chosing an emporia blood pressure monitor. This blood pressure monitor offers clinically proven accuracy and is designed to be easy to use. With the right care and maintenance, your new blood pressure monitor will provide you with years of reliable service.
-
Page 3: Table Of Contents
› CONTENT Introduction and intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .04 Comments . -
Page 4: Introduction And Intended Use
Model: B51 › INTRODUCTION AND INTENDED USE These instructions are for the B51 model. It is a fully automatic, digital blood pressure monitor for adults for private use. It allows very fast and reliable measurement of systolic and diastolic blood pressure and pulse with the oscillometric Method. The... -
Page 5: Comments
› COMMENTS · Only a health-care-professional is qualified to interpret blood preasure measurements. · This device is NOT intended to replace regular medical checkups. · Blood preassure readings obtained by this device should be verified by your doctor before prescribing or making adjustments to any medications used to control hypertension. -
Page 6: Warnings & Precautions
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 › WARNINGS & PRECAUTIONS Warning: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e. g. mobile phones, microwave ovens). These can lead to temporary impairment of the measuring accuracy. - Page 7 EMPORIA Telecom GmbH & Co. KG customercare@emporia.at · www.emporia.eu · Industriezeile 36 · 4020 Linz · Austria via email: customercare@emporia.at · via phone: or repairs, warranty claims Mon. - Thu. 08:30 a.m. - 17:00 p.m. · Fri. 08:30 a.m. - 13:00 p.m.
-
Page 8: Important Information On Blood Pressure And Its Measurement
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 › IMPORTANT INFORMATION ON BLOOD PRESSURE AND ITS MEASUREMENT How does high or low blood pressure arise? Your level of blood pressure is determined in the circulatory center of the brain and adjusts to a variety of situations through feedback from the nervous system. - Page 9 Druckklassifikation – Risikoindikator nach WHO On the device display you will find six grids. Please refer to the table below. The different grids represent the different interval scales of the World Health Organization (WHO). Blood pressure value WHO clour WHO grids WHO classifikation scale [SYS-systolic/DIA-diastolic] SYS <...
- Page 10 USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 monitor is recommended. You can detect possible changes in your values early and react appropriately. · If you are undergoing medical treatment to control your blood pressure, keep a record of values along with time of day and date. Show these values to your doctor.
- Page 11 What can be done if regular high or low values are obtained? 1. Consult your doctor. 2. Increased blood pressure values (various forms of hypertension) are associated with considerable health risks over time. Arterial blood vessels in your body are endangered due to constriction caused by deposits in the vessel walls (Arteriosclerosis).
-
Page 12: Construction Of The Blood Pressure Monitor
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 › CONSTRUCTION OF THE BLOOD PRESSURE MONITOR 1. LCD display 5. Cuff-socket 6. AC-adapter port 2. SET button 7. Battery compartment 3. START/STOP button 4. MEM button Symbols on the LCD display 1. - Page 13 Features of the blood pressure monitor 1. Big, high quality Acrylic 2. Double users: 3. Cuff self checking function LCD display 2 × 120 sets memory 4. Irregular heartbeat checking 5. Average value function 6. Low battery display 9. External power adapter 7.
-
Page 14: First Use Of The Blood Pressure Monitor
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 › FIRST USE OF THE BLOOD PRESSURE MONITOR I. Activating the blood pressure monitor Battery Installation Use only 1.5V AA alkaline batteries with this device. 1. You will find the battery compartment on the back of the blood pressure monitor. - Page 15 Setting the User: Press the MEM button to select User A or User B. When the display shows A (/B) on the screen, press the MEM button to switch to user B (A). Press the SET button to confirm. Setting the Year: The initial year is 2020.
-
Page 16: Measurement Procedure
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 › MEASUREMENT PROCEDURE Note: You should always be seated and calm before and during measurement.. Before the measurement · Avoid eating and smoking as well as all forms of exertion directly before measurement. -
Page 17: Fitting The Cuff
Fitting the cuff 1. The cuff is preformed for easier use. Remove tight or bulky clothing from your upper arm. 2. Wrap the cuff around your left upper arm. The rubber tube should be on the inside of your arm extending downward to your hand. Make certain the cufflies approximately 2 - 3 cm (½"... -
Page 18: Measurement
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 Measurement The blood pressure monitor is designed to take measurements and store the measurement values in memory for two people using User ID A and User ID B. · Sit comfortably in a chair with your feet flat on the floor. - Page 19 6. The measurement results are displayed until you switch the device off. If no buttons is pressed for 60 seconds, the device switches off automatically. 7. The cuff correct symbol ( ) will be displayed iif the cuff position is correct, otherwise the symbol ( ) for wrong positioning will be displayed.
-
Page 20: Recommendations During The Measurement
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 Correct position during measurement 1. Comfortably seated 2. Legs uncrossed 3. Feet flat on the floor 4. Back and arm supported 5. Cuff at the level of the heart Upper arm is... -
Page 21: Irregular Heartbeat Detector (Ihb)
Recommendations during the measurement 1. Be as relaxed as possible during the measurement. Don‘t talk and don‘t take your breath. 2. Wait in this position for at least 5 minutes before the first measurement. 3. The measurement results can be influenced by the measurement location, the position, the physical activity or the physiological state. -
Page 22: Error Indication
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 Error Indication SYMBOL CAUSE CORRECTION Replace both batteries with new ones. No display Weak battery or improper placement Check the battery installation for proper appears placement of the battery polarities. Check if the pump is working or not. -
Page 23: Trouble Shooting
Trouble shooting PROBLEM CHECK CAUSE AND SOLUTIONS Check the battery power Replace new one. No power Installation for proper placement Check the polarity position of the batteries polarities. Whether the plug insert Insert into the air socket tightly. No inflation Whether the plug broken or leak Change a new cuff. -
Page 24: Memory
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 Memory At the end of a measurement, this monitor automatically stores each result with date and time. Each unit stores 120 sets of measurements for 2 users, totally 240 sets [User A and B]. -
Page 25: Battery Change Indicator And Power Supply
Battery change indicator and power supply When the batteries are discharged, the battery symbol will flash as soon as the instrument is switched on. You cannot take any further measurements and must replace the batteries. The battery compartment is located on the back side of the unit. 1. -
Page 26: Care & Maintenance
USER MANUAL · Art. Nr.: BPM-V10-B · Model: B51 Using the AC Adapter You may also operate this monitor using an AC adapter [output 5 V DC/1 A with Micro USB plug]. 1. Ensure that the AC adapter and cable are not damaged. -
Page 27: Quality Control
› QUALITY CONTROL The B51 model complies with ISO 80601-2-30 Medical Electrical Equipment (Special Requirements for the basic safety and performance of automatic non-invasive blood pressure monitors) and the European standards for non-invasive blood pressure monitors: EN 1060-1 · EN 1061-3 · EN 1060-4. - Page 28 Model: B51 Produced for: EMPORIA Telecom GmbH & Co. KG Industriezeile 36 · 4020 Linz · Austria · www.emporia.eu Shenzhen Jamr Technology CO., Limited Add: 2nd Floor, A-building, No.2 Guiyuan Road, Guihua community,Guanlan town, Longhua new district, 518100 Shenzhen, PEOPLE‘S REPUBLIC OF CHINA Authorized European Representative: Company Name: Shanghai International Holding Corp.
-
Page 29: Technical Specifications
› TECHNICAL SPECIFICATIONS Modell B51 Weight 295.5 g (batteries or AC adapter not included) Display 75 × 106 mm (2.95" × 4.17") LCD Digital Display Dimensions W × L × H: 150 × 104 × 70 mm (4.09" × 5.91" × 2.76") Scope of delivery 1 ×... -
Page 30: Symbol Descriptions
› SYMBOL DESCRIPTIONS The following symbols may appear in this manual, on the Digital Blood Pressure Monitor B51, or on it‘s accessories. Some of the symbols represent standards and compliances associated with the Digital Blood Pressure Monitor B51 and its use. -
Page 31: Emc Declaration
› EMC DECLARATION 1) * This product requires special attention with regard to EMC (electromagnetic compatibility) and must be installed and commissioned in accordance with the EMC information provided. This device can be aected by portable and mobile radio frequency (RF) communication devices. 2) * Do not use a mobile phone or other devices in the vicinity of the blood pressure monitor that emit electromagnetic elds. - Page 32 · Art. Nr.: BPM-V10-B · Model: B51 Guidance and manufacture’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic enviroment specified below. The customer of the user of the device should ensure that it is used in such an environment.
