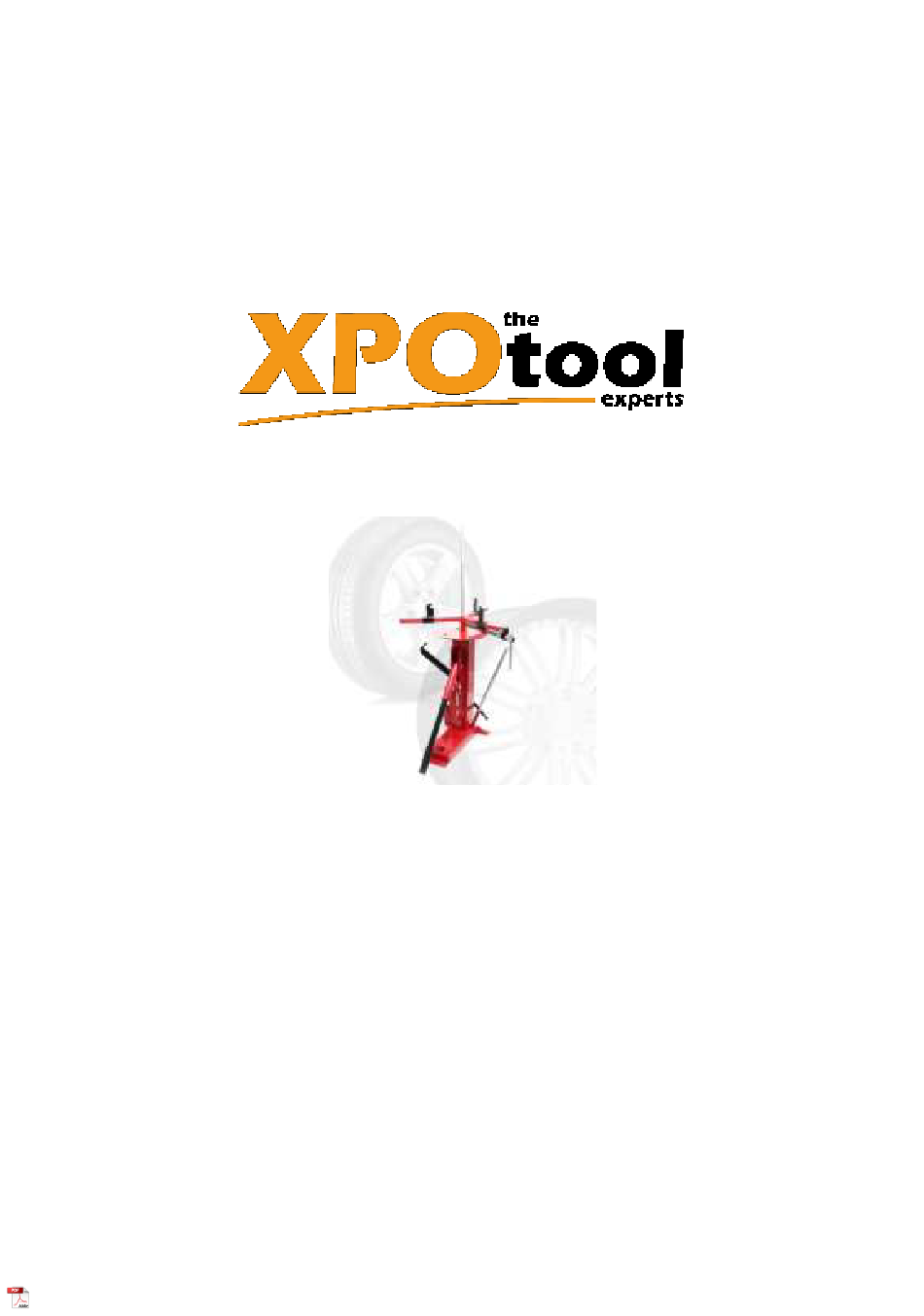

Operation Manual
Manual Tyre Changer
61909
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Summary of Contents for XPOtool 61909
- Page 1 Operation Manual Manual Tyre Changer 61909 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 61909 Page 2 The Tool Experts 05 2022-1...
- Page 3 1. Attach the jaw frame (19) to the main stand base (4) using screws (22), locknuts (9), and wash- ers (23). 2. Attach the handle holder (7) to the main stand base (4) with a lock pin (8). https://www.XPOtool.com Item 61909 Page 3 The Tool Experts 05 2022-1...
- Page 4 3. Attach the assembly shoe (5) to the handle holder fixture (7) with a screw (6) and locknut (9). 4. Attach the handle (10) to the handle holder (7) using a screw (24) and locknut (12). Tighten all screws and nuts. https://www.XPOtool.com Item 61909 Page 4 The Tool Experts 05 2022-1...
- Page 5 Leave a working area of at least 914 mm on all sides. Mark the drill holes through the base holes and drill four 12.7 mm diameter holes. 6. Insert 76.2 mm (3″) concrete anchors into the holes and tighten the anchor nuts. https://www.XPOtool.com Item 61909 Page 5 The Tool Experts 05 2022-1...
- Page 6 Slide clamps are positioned to the correct wheel size as indi- cated by numeric markings on each arm. The pins are inserted on the outside of the terminals. Press the two clamps against the pins. https://www.XPOtool.com Item 61909 Page 6 The Tool Experts 05 2022-1...
- Page 7 Disassemble the lower bead in the same way as above. The angle of the tool to the centre post can be varied according to operator height or rim depth without compromising ease of op- eration. https://www.XPOtool.com Item 61909 Page 7 The Tool Experts 05 2022-1...
- Page 8 In the unlikely event that you will have trouble turning the handle, use a tyre lever. Use a tyre iron to loosen the tire around the point of greatest re- sistance. Important: Always lubricate the tyre! https://www.XPOtool.com Item 61909 Page 8 The Tool Experts 05 2022-1...
- Page 9 Tension rod (with thread) Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61909 Page 9 The Tool Experts 05 2022-1...
